Paving

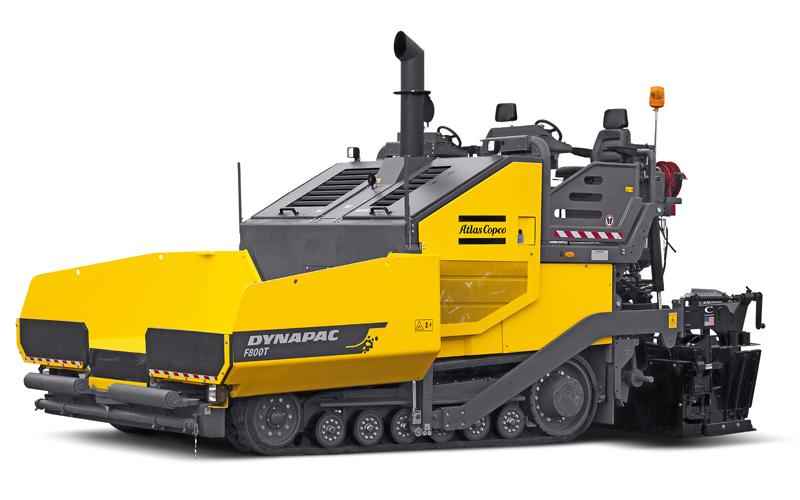

Dynapac F800T Tracked pavers

0
My comparison
  • Pictures

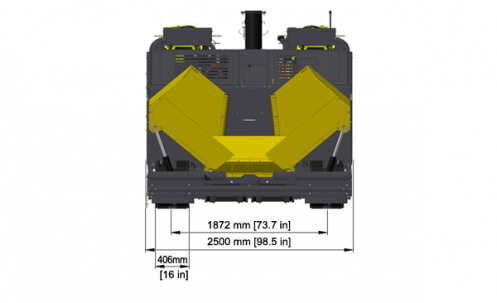

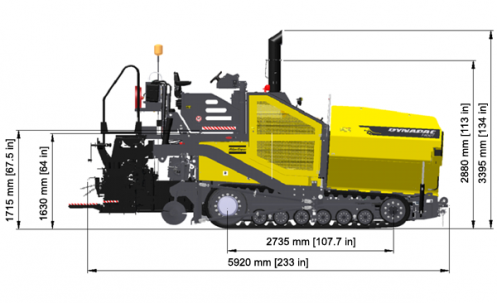

  • Dimensions
A. Axle track
H3. Height
L1. Length
L2. Length, wheelbase
Discontinued true
Introducing Dynapac F800T 8ft rubber track paver, a perfect addition to the existing highway class paver line. Dynapac F800T combines innovative features and decades of experience, making it as one of the best 8ft highway class pavers available in the US market.
Basic paving width: 8 ft
Max. paving width: 19 ft
Max. layer thickn.: N/A
Theor placement cap.: 1,000 t/h

Technical data

Masses
Paver weight (incl. standard screed) 39,200 lbs
Tractor weight 34,000 lbs
Traction
Paving speed 0 - 89 fpm
Maximum paving speed 200 fpm
Transport speed 8.5 mph
Engine
Manufacturer/Model Cummins QSB 6.7-173
Emissions according to Tier 4F
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 173 hp @ 2,300 rpm
Electrical system 24V / 70A
Generator (tractor mounted) 34 kVA
Fuel tank capacity 85 gal
Operation
Control consoles Dual Swing out
Dashboard Ergonomic dashboard with Multifunction
display on each console
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 20 in
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger reinforcement kit
Category Subcategory P/N Additional info
Tracked pavers 4812274490 Hydraulic extension auger kit
Conveyor bearing kit
Category Subcategory P/N Additional info
Tracked pavers 4812274413
Conveyor chain kit
Category Subcategory P/N Additional info
Tracked pavers 4812273378 Drive
Tracked pavers 4812245380
Conveyor guide kit
Category Subcategory P/N Additional info
Tracked pavers 4812274410
Conveyor plate kit
Category Subcategory P/N Additional info
Tracked pavers 4812274411
Conveyor sprocket kit
Category Subcategory P/N Additional info
Tracked pavers 4812274412
Hopper skirt kit
Category Subcategory P/N Additional info
Tracked pavers 4812273377
Rear plate kit
Category Subcategory P/N Additional info
Tracked pavers 4812274414
Screed connect kit
Category Subcategory P/N Additional info
Tracked pavers 4812248743 Screed dis-connect kit
Service kit
Category Subcategory P/N Additional info
Tracked pavers 4812247914 Hopper assembly, short rubber
Tracked pavers 4812274491 Extend auger, 15FT KIT
Tracked pavers 4812274492 Extend auger, 1FT KIT
Tracked pavers 4812274493 Extend auger, 2FT KIT
Tracked pavers 4812246513 Basic auger blade
Tracked pavers 4812274494 Kit, key replacement
Service kit , 1000H
Category Subcategory P/N Additional info
Tracked pavers 4812273242 F800W (IV/T4)
Service kit , 100H
Category Subcategory P/N Additional info
Tracked pavers 4812273240 F800W (IV/T4)
Service kit , 2000H
Category Subcategory P/N Additional info
Tracked pavers 4812273243 F800W (IV/T4)
Service kit , 500H
Category Subcategory P/N Additional info
Tracked pavers 4812273241 F800W (IV/T4)

Spare parts manuals

Eager to see the spare parts of Dynapac F800T?

Please Log in or Register to MyDynapac to get access.

Compaction data

LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac F800T?

Please Log in or Register to MyDynapac to get access.
