Paving

Dynapac MF2500CS Mobile feeders

0
My comparison
  • Pictures

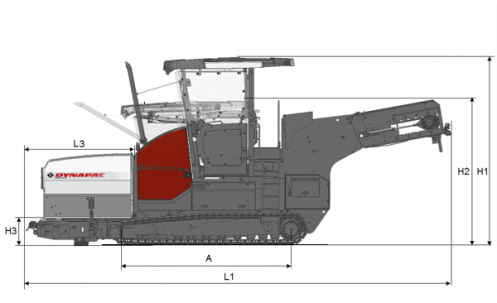

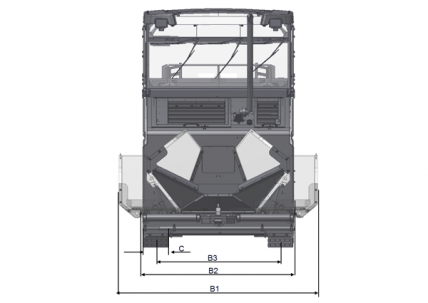

  • Dimensions
A. Axle track 3.95 m
B1. Width, max. 3.55 m
B2. Width, standard 8 ft
B3. Width, center of tracks 2.09 m
C1. Track width 320 mm
H1. Height, max. 5 m
H2. Height, transport 120 in
H3. Height 580 mm
L1. Length 9.25 m
L3. Length, hopper 2.25 m
Discontinued false
Being the only 2.5 meter feeder on the market, the Dynapac MF2500CS combines easy and cost effective transport - no permissions needed - with impressive feeding capacity. The core of the Dynapac MF2500CS is its high-performance conveying system, which can transport 30 tons of gravel, sand or asphalt to its destination in just 35 seconds.
Transport mass: 44100 lbs
Conv feed capacity: 4000 t/h
Feeding height: 98 in / 87 in

Technical data

Masses
Transport mass 44,100 lbs
Traction
Operating speed, max 82 ft/min
Transport speed, max 2.5 mph
Engine
Manufacturer/Model Cummins QSB 6.7-C220
Rated power, SAE J1995 164 kW (220 hp ) @ 2,200 rpm
Electrical system 24 V
Emissions according to EU Stage III / EPA Tier 3
Fuel tank capacity 79 gal
Alternative Engine
Manufacturer/Model Cummins B 6.7-C225
Rated power, SAE J1995 168 kW (225 hp ) @ 2,200 rpm
Electrical system 24V
Emissions according to EU Stage V / EPA Tier 4f
Fuel tank capacity 95.11 gal
Conveyor
Conveyor type Rubber belt on two chains
mounted with metal stiffeners.
Conveyor speed Constantly variable
Conveyor width 47.24 in
Feeding height (max/min) 98 in / 87 in
Feed capacity 4000 t/h
Feed capacity, optional swing conveyor 2000 t/h
