Paving

Dynapac MF2500CS with SW5500 Mobile feeders

0
My comparison
  • Pictures

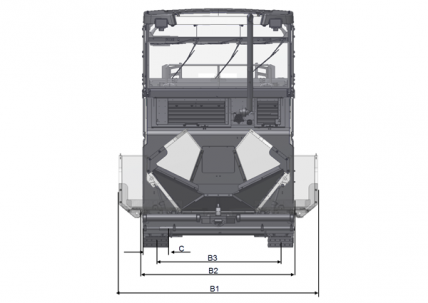

  • Dimensions
A. Axle track 3.95 m
B1. Width, max. 3.55 m
B2. Width, standard 8.44 ft
B3. Width, center of tracks 2.09 m
C1. Track width 320 mm
H1. Height, max. 5 m
H2. Height, transport 120 in
H3. Height 580 mm
H4. Height, max.
L1. Length 14.30 m
L3. Length, hopper 2.25 m
Discontinued true
Being the only 2.5 meter feeder on the market, the Dynapac MF2500CS combines easy and cost effective transport - no permissions needed - with impressive feeding capacity. With the unique Dynapac SW6500 a standard MF2500CS can be transformed into a swinging feeder in less than 30 minutes. The hydraulic jacks make the mounting easy and convenient. With a swing angle of 55° and a side reach of 3.4m, the Dynapac feeder is the perfect machine for a lot of applications.
Transport mass: 54000 lbs
Conv feed capacity: 4000 t/h
Feeding height: 134 in / 43 in

Technical data

Masses
Transport mass 54,000 lbs
Traction
Operating speed, max 82 ft/min
Transport speed, max 2.5 mph
Engine
Manufacturer/Model Cummins QSB 6.7-C225
Rated power, SAE J1995 164 kW (220 hp ) @ 2,200 rpm
Electrical system 24 V
Emissions according to EU Stage III / EPA Tier 3
Alternative Engine
Manufacturer/Model
Rated power, SAE J1995 168 kW (225 hp ) @ 2,200 rpm
Electrical system 24 V
Emissions according to EU Stage V / EPA Tier 4f
Fuel tank capacity 95.11 gal
Conveyor
Conveyor type Rubber belt on two chains,
mounted with metal stiffeners
Conveyor speed Constantly variable
Conveyor width 47.24 in
Feeding height (max/min) 134 in / 43 in
Feed capacity 4000 t/h
Feed capacity, optional swing conveyor 2000 t/h
