Paving

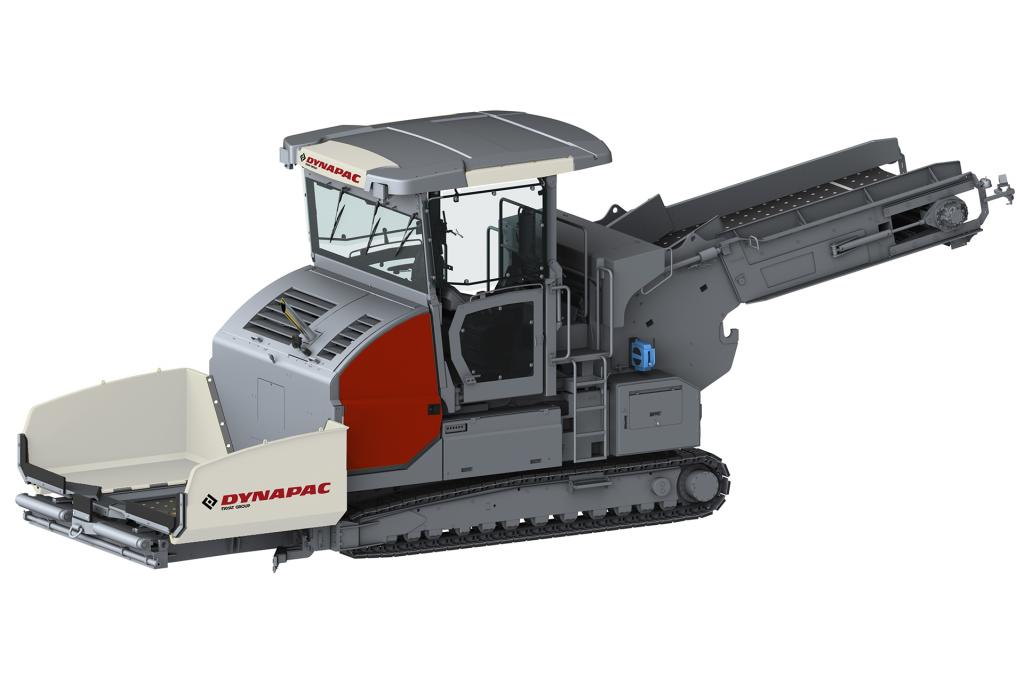

Dynapac MF2500CM Mobile feeders

0
My comparison
  • Pictures

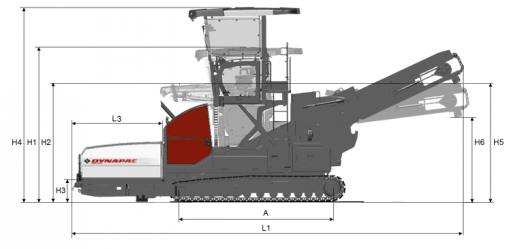

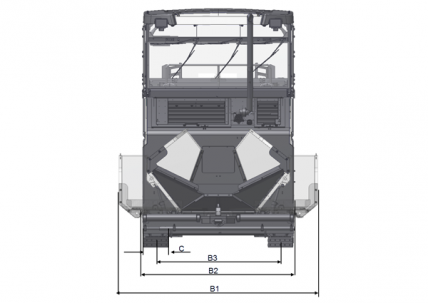

  • Dimensions
A. Axle track 154 in
B1. Width, max. 100 in
B2. Width, standard 8 ft
B3. Width, wheel track 82 in
C1. Track width 22 in
H1. Height, max. 157 in
H2. Height, transport 122 in
H3. Height 22.44 in
H4. Height, max. 16 ft
H5. Feeding height, max. 118 in
H6. Feeding height, min. 83 in
L1. Length 34 ft
L3. Length, hopper 90.16 in
Discontinued false
Mobile feeders are a transport and conveying system which is used as a non-contact connecting element between road finishing machines and transport vehicles carrying mixed goods. A hopper for mixed goods is used for storing the material, which is transported on a heat-resistant rubber type band to a sensor controlled, automatically height adjusted conveyor at the front end of the feeder.
Transport mass: 740740.74 oz
Conv feed capacity: 4000 t/h
Feeding height: 188 in / 83 in

Technical data

Masses
Transport mass 740,740.74 oz
Traction
Operating speed, max 82 ft/min
Transport speed, max 2.5 mph
Engine
Manufacturer/Model Cummins QSB 6.7-C220
Rated power, SAE J1995 164 kW (220 hp ) @ 2,200 rpm
Electrical system 24V
Emissions according to Stage 3A / Tier 3
Alternative Engine
Manufacturer/Model Cummins QSB 6.7-C225
Rated power, SAE J1995 168 kW (225 hp ) @ 2,200 rpm
Electrical system 24V
Emissions according to Stage 4 / Tier 4f
Conveyor
Conveyor type Rubber belt on two chains,
mounted with metal stiffeners
Conveyor speed Contantly variable
Conveyor width 47.24 in
Feeding height (max/min) 188 in / 83 in
Feed capacity 4000 t/h
