Dynapac FC1700C • Dynapac

Dynapac FC1700C Commercial pavers

Pictures

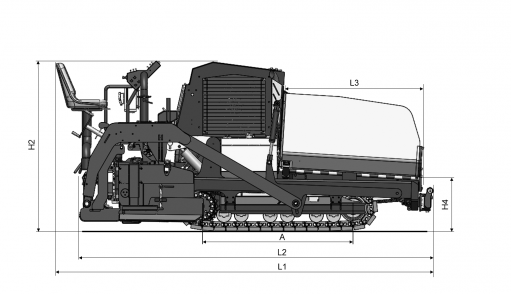

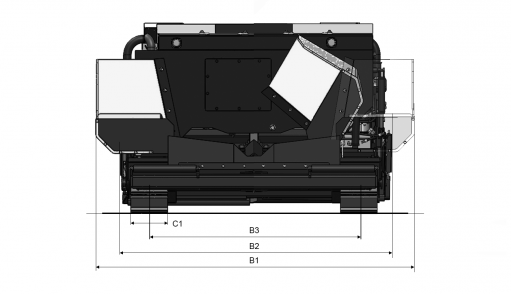

Dimensions

A. Axle track	72 in
B1. Width, max.	125 in
B2. Width, standard	102 in
B3. Width, center of tracks	76 in
C1. Track width	14 in
H2. Height, transport	71 in
H4. Dumping height	16 in
L1. Length, total	165 in
L2. Length, transport	165 in
L3. Length, hopper	65 in

Basic paving width: N/A

Max. paving width: 18 ft

Max. layer thickn.: N/A

Theor placement cap.: 550 t/h

Technical data

Masses
Mass (tractor)	14,000 lbs
Paver weight (incl. standard screed)	18,500 lbs
Traction
Paving speed	0-43 mpm
Transport speed	3 mph
Engine
Electrical system	12V
Emissions according to	EPA T4f/EU4
Engine alternator capacity	140 Amps
Fuel tank capacity	22 gal
Heating generator capacity	16 kW, 240V 1 phase
Manufacturer/Model	Cummins QSF 3.8
Rated power, SAE J1995	120 hp @ 2200 rpm
Alternative Engine
Manufacturer/Model	Cummins QSF 3.8, EPA Tier 3
Rated power [engine 2, kW]	89 kW
Rated power [engine 2, rpm]	2,200 rpm
Conveyor
Conveyor control	Automatic with Auger control
Conveyor type	Dual slat conveyor
Conveyor width	22 in

Service Kits

Conveyor belt rail kit

Category	Subcategory	P/N	Additional info
	Mobile feeders	4812009720

Conveyor guide kit

Category	Subcategory	P/N	Additional info
	Mobile feeders	4812009718

Hopper rubber kit, reinforced, hydr. front flap

Category	Subcategory	P/N	Additional info
	Mobile feeders	4812007263	With steel rops. Version 1
	Mobile feeders	4812015980	With steel rops. Version 2

Rubber pad kit

Category	Subcategory	P/N	Additional info
	Mobile feeders	4812008959	For long track frame
	Mobile feeders	4812008960	For short track frame

Scraper kit

Category	Subcategory	P/N	Additional info
	Mobile feeders	4812009723

Service kit 1000h

Category	Subcategory	P/N	Additional info
	Mobile feeders	4812046970	TIER 4
	Mobile feeders	4812046969	TIER 3

Service kit 500h

Subcategory	P/N	Additional info
Mobile feeders	4812042198	TIER 4
Mobile feeders	4812043984	TIER 4
Mobile feeders	4700691229	TIER 3
Mobile feeders	4812043983	TIER 3

Equipment (Standard and options)

Standard

LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, Hydraulic Tow Point, Screed Power Crown, Screed Power Match height, Dyn@link Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics, screed ext. power slope control, heated end gate

Optional

Road Crew Kit, 3 Man operation, Levelling System, Averaging Ski beam, Cut-Off plates, Screed Extension, Truck Hitch, Umbrella
