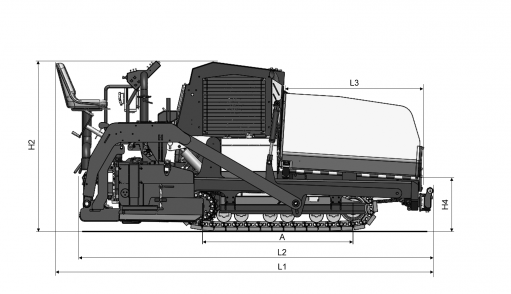

| A. Axle track | 72 in |
|---|---|

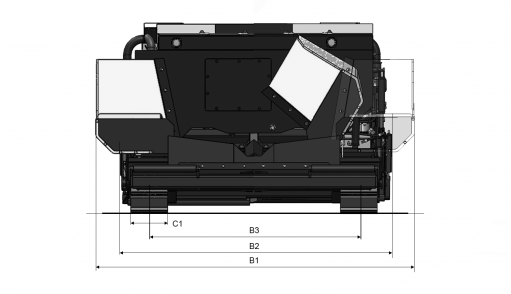

| B1. Width, max. | 125 in |
| B2. Width, standard | 102 in |
| B3. Width, center of tracks | 81 in |
| C1. Track width | 12 in |
| H2. Height, transport | 71 in |
| H4. Dumping height | 21 in |
| L1. Length, total | 165 in |
| L2. Length, transport | 165 ft |
| L3. Length, hopper | 65 in |
| Masses | |
| Mass (tractor) | 14,000 lbs |
|---|---|
| Paver weight (incl. standard screed) | 18,500 lbs |
| Traction | |
| Paving speed | 0-140 fpm |
| Transport speed | 3 mph |
| Engine | |
| Manufacturer/Model | Cummins QSB 3.3 |
| Emissions according to | EPA T3/EU3A |
| Rated power, SAE J1995 | 74 kW (99 hp ) @ 1400 rpm |
| Electrical system | 12V |
| Fuel tank capacity | 22 gal |
| Engine alternator capacity | 120 Amps |
| Heating generator capacity | 16 kW, 240V 1 phase |
| Conveyor | |
| Conveyor type | Dual slat conveyor |
| Conveyor width | 2 x 24 in |
| Conveyor control | Automatic with Auger control |
Standard
LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, Hydraulic Tow Point, Screed Power Crown, Screed Power Match height, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics, screed ext. power slope control, heated end gate
Optional
Road Crew Kit, 3 Man operation, Levelling System, Averaging Ski beam, Cut-Off plates, Screed Extension, Truck Hitch, Umbrella
