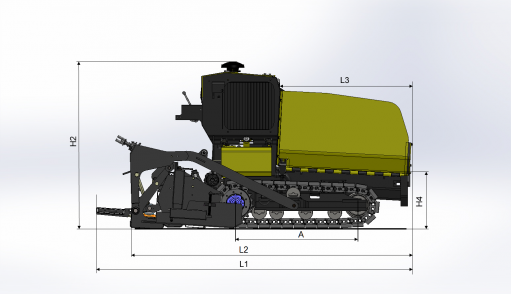

| A. Axle track | 55 in |
|---|---|

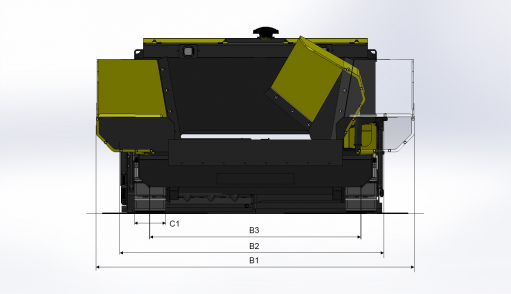

| B1. Width, max. | 125 in |
| B2. Width, standard | 102 in |
| B3. Width, center of tracks | 80 in |
| C1. Track width | 12 in |
| H2. Height, transport | 64 in |
| H4. Dumping height | 21 in |
| L1. Length, total | 11 ft 4 in |
| L2. Length, transport | 11 ft 4 in |
| L3. Length, hopper | 60 in |
| Masses | |
| Mass (tractor) | 9,300 lbs |
|---|---|
| Paver weight (incl. standard screed) | 12,500 lbs |
| Traction | |
| Paving speed | 140 fpm |
| Transport speed | 3 mph |
| Engine | |
| Manufacturer/Model | Kubota V3600 |
| Emissions according to | EPA T4i/EU3B |
| Rated power, SAE J1995 | 67 hp @ 2,600 rpm |
| Electrical system | 12V |
| Fuel tank capacity | 14 gal |
| Engine alternator capacity | 90 Amps |
| Heating generator capacity | N/A |
| Conveyor | |
| Conveyor type | Dual slat conveyor |
| Conveyor width | 24 in |
| Conveyor control | On/Off |
Standard
LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics
Optional
Levelling System, Averaging Ski beam, Cut-Off plates, Truck Hitch, Umbrella
