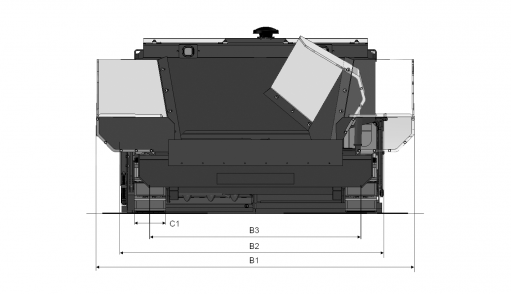

| A. Axle track | 40 in |
|---|---|
| B1. Width, max. | 115 in |
| B2. Width, standard | 90 in |
| B3. Width, center of tracks | 80 in |
| C1. Track width | 12 in |
| H2. Height, transport | 68 in |
| H4. Dumping height | 23 in |
| L1. Length, total | 118 in |
| L2. Length, transport | 118 in |
| L3. Length, hopper | 60 in |
| Masses | |
| Mass (tractor) | 7,700 lbs |
|---|---|
| Paver weight (incl. standard screed) | 9,700 lbs |
| Traction | |
| Paving speed | 0-115 fpm |
| Transport speed | 3 mph |
| Engine | |
| Manufacturer/Model | Kubota V1505 |
| Emissions according to | EPA T4i/EU3B |
| Rated power, SAE J1995 | 28 kW (38 hp) |
| Electrical system | 12 V |
| Fuel tank capacity | 20 gal |
| Engine alternator capacity | 40 Amps |
Standard
Poly pad tracks, Backup Alarm, Rotating Beacon Wash down spray system, Dual operator station, Automatic auger feed control Screed Extension & main heat, Auto Flame-Out, Continuous-Ignition Screed Heating Extending Walkboard, Smooth Tandem Pump Steering with a Positive Neutral
Optional
Slope Meter mechanical, Cut Off Plates, Umbrella
