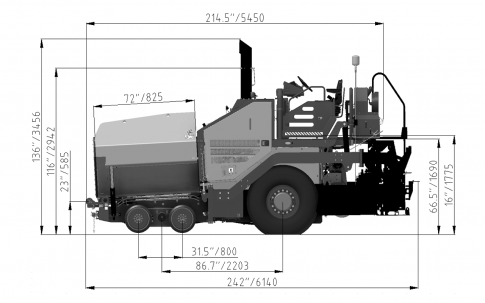

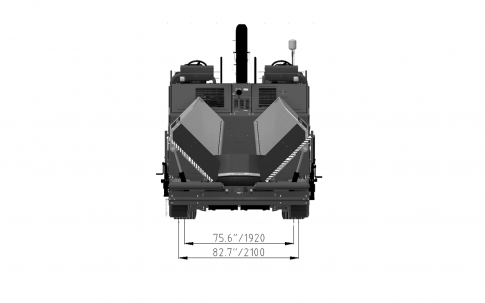

| A. Axle track | |
|---|---|
| H4. Dumping height | |
| K. Ground clearance | |
| L2. Length, hopper |
| Masses | |
| Paver weight (incl. standard screed) | 38,150 lbs |
|---|---|
| Tractor weight | 31,900 lbs |
| Traction | |
| Paving speed | 0-116 fpm |
| Maximum paving speed | 255 fpm |
| Transport speed | 11 mph |
| Turning radius | 5 ft |
| Engine | |
| Manufacturer/Model | Cummins QSB 6.7-173 |
| Rated power | 173 hp @ 2,300 rpm |
| Rated power (Eco mode) | 180 hp @ 1,800 rpm |
| Emissions according to | STAGE IV / TIER 4f |
| Electrical system | 24V / 70A |
| Generator (tractor mounted) | 34 kW |
| Fuel tank capacity | 80 gal |
| Alternative Engine | |
| Manufacturer/Model | |
| Operation | |
| Control consoles | Dual Swing out |
| Dashboard | Ergonomic with Multifunction display /console Simplified smart switches, Cup holder |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width | in |
| Conveyor width | 2 x 20 in |
| Conveyor control | Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors. |
