Dynapac F800W Large pavers

0
My comparison
  • Pictures

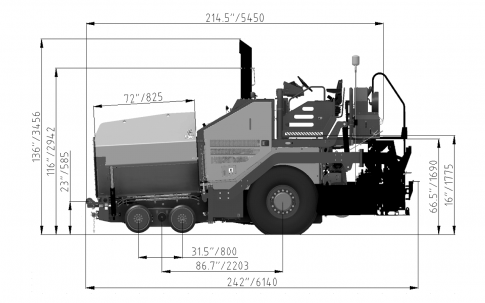

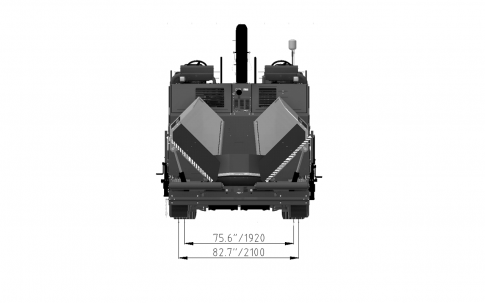

  • Dimensions
Working width, minimum (Cut Off Shoe) 72.05 in
Front ramp angle 14°
Deck height 67 in
Transport dimensions (LxWxH) 6.2 x 2.6 x 3.0 m
Working width, hydraulic extendable 179.92 in
Working width, max. 5.79 m
Discontinued false
Introducing Dynapac F800W 8 ft Wheel paver, a perfect addition to the existing highway class paver line. Dynapac F800W combines innovative features and decades of experience, making it as one of the best 8ft (2,44m) highway class pavers available in the US market.
Basic paving width: 0.10 in
Max. paving width: 227.95 in
Max. layer thickn.: 12 in
Theor placement cap.: 907 t/h

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Technical data

Masses
Tractor weight 511,463.84 oz
Tractor weight (incl. standard screed) 17,300 kg
Traction
Paving speed 0-35 m/min
Maximum paving speed 921,260 fpm
Transport speed 0 mph
Turning radius 4.9 ft
Engine
Manufacturer/Model Cummins QSB 6.7-173
Emissions according to STAGE IV / TIER 4f
Rated power 129 kW (173 hp ) @ 2300 rpm
Electrical system 24V / 70A
Fuel tank capacity 79 gal
Generator (tractor mounted) 34 kW
Rated power (Eco mode) 134 kW (180 hp ) @ 1,800 rpm
Operation
Control consoles Dual Swing out
Dashboard Ergonomic with Multifunction display /console Simplified smart switches, Cup holder
Conveyor
Conveyor type Dual bar feeder
Conveyor control Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors
Conveyor width 2 x 506 mm

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Wheeled pavers 4812274490
Wheeled pavers 4812274491 Extended auger 15ft.
Wheeled pavers 4812274492 Extended auger 1ft.
Wheeled pavers 4812274493 Extended auger 2ft.
Wheeled pavers 4812246513 Basic auger blade
Conveyor bearing kit
Category Subcategory P/N Additional info
Wheeled pavers 4812274413
Conveyor chain kit
Category Subcategory P/N Additional info
Wheeled pavers 4812247992
Conveyor drive kit
Category Subcategory P/N Additional info
Wheeled pavers 4812273378 Conveyor drive chain
Conveyor guide kit
Category Subcategory P/N Additional info
Wheeled pavers 4812247992
Conveyor plate kit
Category Subcategory P/N Additional info
Wheeled pavers 4812313274
Conveyor sprocket kit
Category Subcategory P/N Additional info
Wheeled pavers 4812274412
Hopper skirt kit
Category Subcategory P/N Additional info
Wheeled pavers 4812273377
Wheeled pavers 4812313293 Low version
Wheeled pavers 4812313532 Hydraulic powered standard size
Wheeled pavers 4812313533 Hydraulic powered short size
Rear plate kit
Category Subcategory P/N Additional info
Wheeled pavers 4812274414
Service kit
Category Subcategory P/N Additional info
Wheeled pavers 4812273240 Start-up kit 100 h
Service kit , 1000H
Category Subcategory P/N Additional info
Wheeled pavers 4812273242
Service kit , 2000H
Category Subcategory P/N Additional info
Wheeled pavers 4812273243
Service kit , 500H
Category Subcategory P/N Additional info
Wheeled pavers 4812273241

Compaction data

LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac F800W?

Please Log in or Register to MyDynapac to get access.
