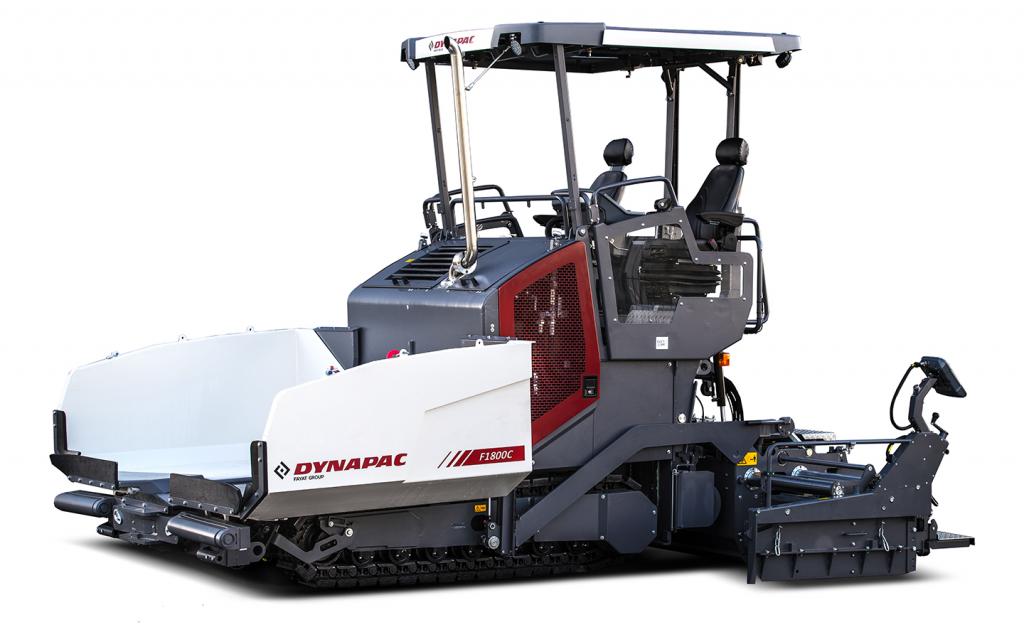

Dynapac F1800C • Dynapac

Working width, hydraulic extendable	in
Working width, minimum (Cut Off Shoe)	27.56 in
Front ramp angle	13°

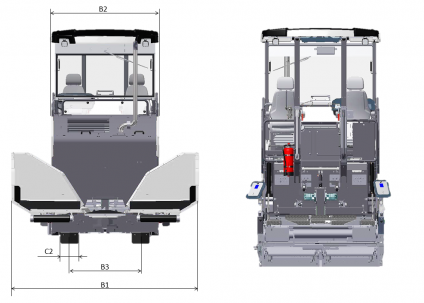

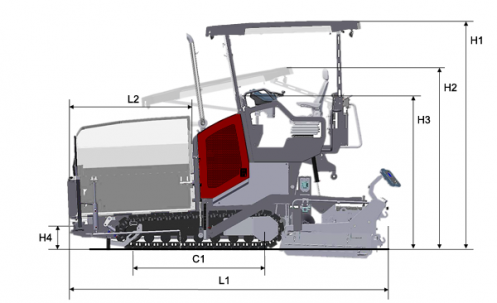

A. Wheelbase
B1. Width, max.	3.15 m
B2. Width, standard	1.80 m
B3. Width, center of tracks	1.20 m
C1. Track length	2.09 m
C2. Track width	0.26 m
H1. Height, max.	3.60 m
H2. Height, transport	2.92 m
H3. Height	2.40 m
H4. Dumping height	0.50 m
L1. Length	4.99 m
L2. Length, hopper	1.99 m

Basic paving width: 70.87 in

Max. paving width: 185.04 in

Max. layer thickn.: 7.87 in

Theor placement cap.: 350 t/h

Masses
Paver weight (incl. standard screed)	23,100 lbs
Traction
Maximum paving speed	295,280 fpm
Transport speed	218.72 fpm
Alternative Engine
Manufacturer/Model	Deutz, 2,9L TD 4 Cylinder
Rated power	54 kW @ 2200 rpm
Emissions according to	Tier 3 / Stage V
Electrical system	24 V
Fuel tank capacity	19.29 gal
Operation

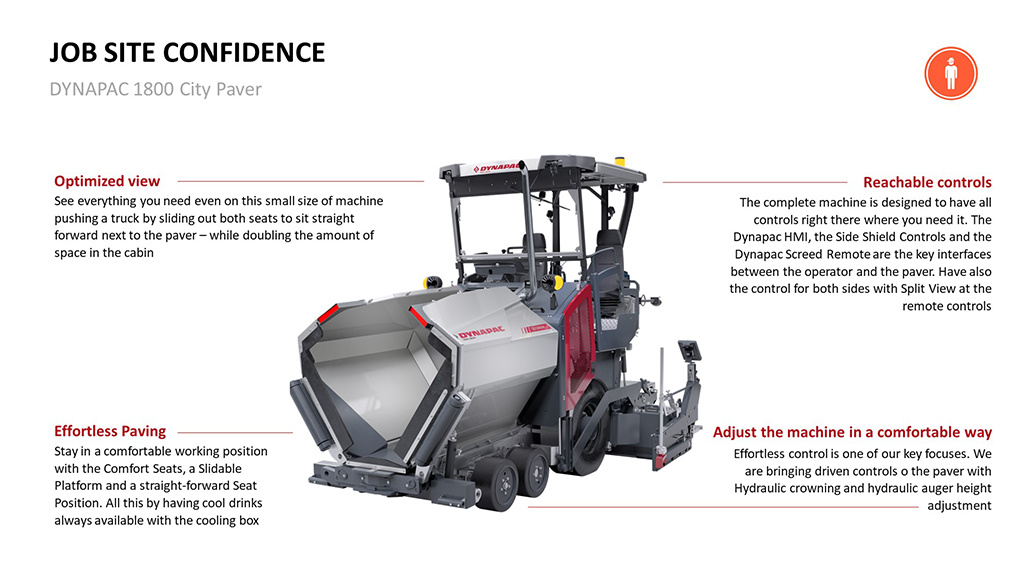

Platform	Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat
Operational controls	Conventional
Conveyor
Conveyor type	Dual bar feeder
Conveyor width	27.56 in
Conveyor control	Automatic with paddles
