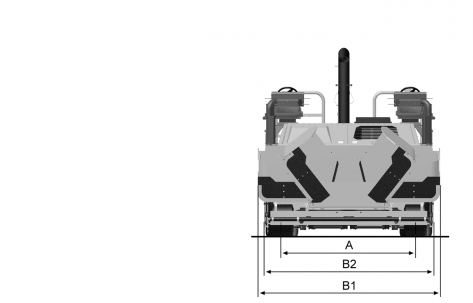

| A. Axle track | |
|---|---|
| A. Wheelbase | 95 in |
| B1. Width, max. | 129 in |
| B2. Width, standard | 120 in |
| B3. Width, center of tracks | |
| H1. Height, max. | 132 in |
| H2. Height, with folded exhaust | 106 in |
| H3. Height | 63 in |
| L1. Length | 262 in |
| L2. Length, wheelbase | 80 in |
| L3. Length, wheel module | 37 in |
| Masses | |
| Tractor weight | 33,400 lbs |
|---|---|
| Traction | |
| Paving speed | 0-128 fpm |
| Maximum paving speed | 285 fpm |
| Transport speed | 12 mph |
| Engine | |
| Manufacturer/Model | Cummins QSB 6.7-225 |
| Type | 6 cylinder water cooled diesel engine with hydraulically driven fan |
| Rated power, SAE J1995 | 225 hp @ 2,300 rpm |
| Electrical system | 24 V |
| Generator (tractor mounted) | 34 kW, 60 Hz, Drive: Hydraulic |
| Fuel tank capacity | 98 gal |
| Emissions according to | T4F |
| Alternative Engine | |
| Manufacturer/Model | |
| Rated power, SAE J1995 | |
| Operation | |
| Control consoles | Dual Swing out |
| Dashboard | Ergonomic dashboard with Multifunction display on each console |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width | 2 x 27 in |
| Conveyor control | Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors. |
