Milling

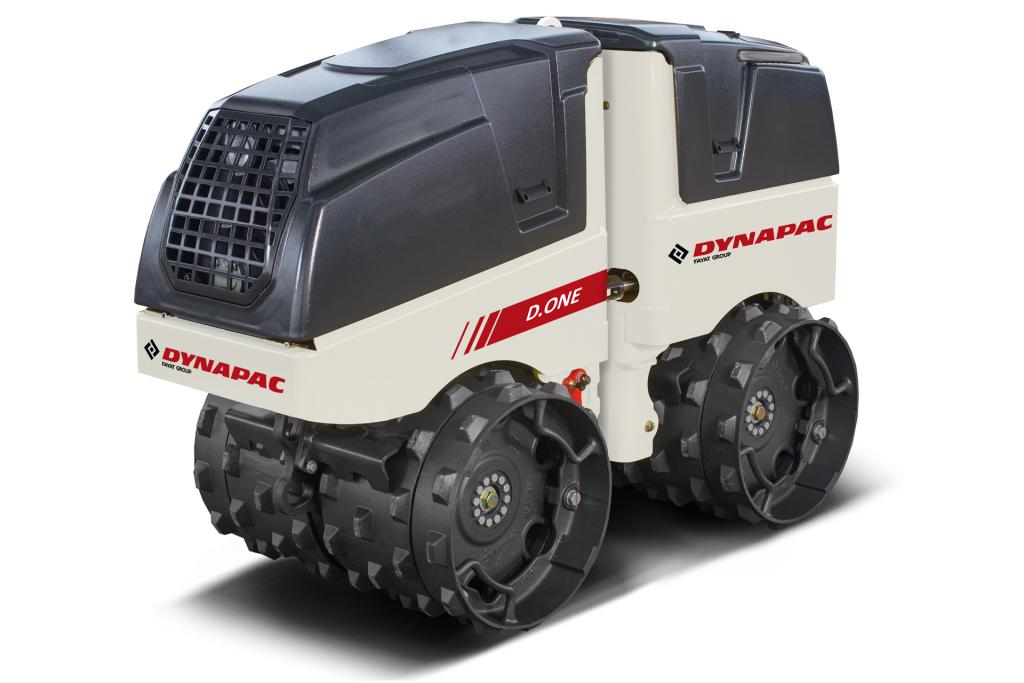

Dynapac D.ONE Utility rollers

0
My comparison
  • Pictures

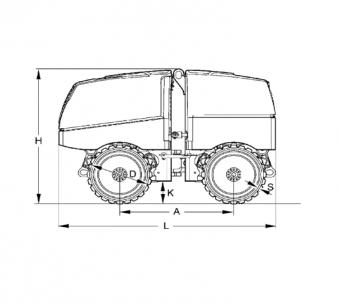

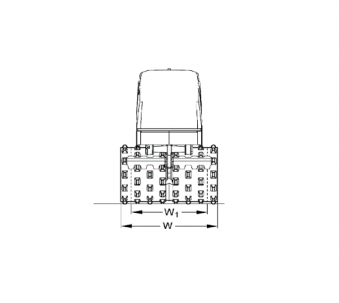

  • Dimensions
A. Wheelbase 39.4 in
D. Drum diameter 20.5 in
H. Height 50.2 in
K. Ground clearance 7.8 in
L. Length 74.7 in
S. Drum shell thickness 0.6 in
W. Working width 33.5 in
W1. Drum width 24.0 in
Discontinued false
{phrase:operating_weight}: 3,516 lbs
{phrase:compaction_force}: N/A
Compaction Width: N/A

Technical data

Masses
Operating mass (CE) 3,516 lbs
Basic mass 3,494 lbs
Axle load, avg. 1,759 lbs
Traction
Speed 1, forward / reverse 0.8 mph
Speed 2, forward / reverse 1.7 mph
Max. gradeability without vibr. 55 %
Max. gradeability with vibr. 45 %
Engine
Manufacturer/Model Kubota D 1005
Rated power, ISO 3046 19.4 hp @ 2,600 rpm
Number of cylinders 3
Fuel tank capacity 6.3 gal
Fuel consumption /h, avg. 0.8 gal
Emissions according to 4 final

Equipment (Standard and options)

Standard


■ Hydrostatic articulated steering
■ Radio/ cable remote control
■ Active Zone System
■ Drum extension (610/850 mm)
■ Dual directed-vibration system
■ Two travel speed ranges
■ Two amplitudes
■ Two scrapers per drum
■ Automatic vibration control
■ Ecomode
■ Automatic shutdown at low oil level
■ Automatic engine shut down at a lateral tipping angle of 45°
■ Electric starter
■ Heavy-duty protection hood
■ One point lift

Optional


■ Special hydraulic oil
■ Smooth drum (-99 lbs Amplitude 0.063/0.03186in)
■ Portable charger for remote control battery
■ Adjustable scrapers 24/33.5in
■ Service Kit
