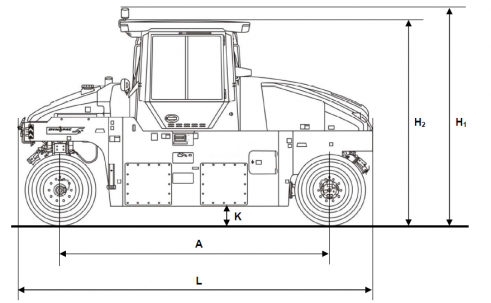

| A. Wheelbase | 157 in |
|---|---|

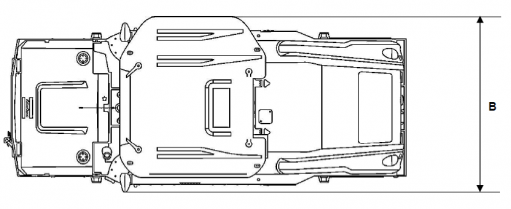

| B. Width | 80 in |
| H1. Height, max. | 132 in |
| H2. Height, transport | 118 in |
| K. Ground clearance | 9.8 in |
| L. Length | 204 in |
| R. Turning radius, outside | 315 in |
| Masses | |
| Operating mass (incl. ROPS) | 22,900 lbs |
|---|---|
| Mass with max. ballast | 46,300 lbs |
| Mass with wet sand ballast | 33,500 lbs |
| Traction | |
| Speed low | 5.6 mph |
| Speed high | 14.0 mph |
| Engine | |
| Manufacturer/Model | Cummins QSF 3.8 (Stage IV/Tier 4final) |
| Rated power, SAE J1995 | 120 hp @ 2,200 rpm |
| Type | Water cooled turbo Diesel |
| Fuel tank capacity | 55 gal |
| Electrical system | 24V |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB3.3 (Stage IIIA/Tier 3) |
| Rated power, SAE J1995 | 74 kW (99 hp ) @ 2,200 rpm |
| Type | Water cooled turbo Diesel |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement. |
| Steering | Axial piston pump with variable displacement. |
| Service brake | 2 multidisc brakes on rear wheels activated by pedal. |
| Parking/Emergency brake | Failsafe multidisc brakes in both gear boxes. |
Standard
AWC (Automatic Water Control), Battery switch, Back up alarm, Back up camera, Cocoa mats, Documentation (Manuals - one set), Drainage for water ballast, Emergency stop, Engine temperature display, Fuel level display, Horn, Hour meter, Hydraulic checkpoints, Hydraulic fluid temperature display, Hydrostatic drive with 2 motors, Interloc system, Key master and start, Lifting and tiedown eyes, Mirrors (traffic view), Multi-disc brakes for parking and dynamic service brake, Parking brake, Rotating beacon, Redundant brake system, ROPS/FOPS (4 post with roof and 3" seat belt), Sliding and swiveling operator unit, Steel ballast front (2,540 lbs) - CP2700 only, Sprinkler and scraper system, Sprinkler pump (back up), Sprinkler timer, Tachometer display, Tilt steering wheel, Vandal cover (Canopy or ROPS/FOPS), Water level gauge, Water tank covers (lockable), Working lights (front/rear), Warning – Air cleaner, Warning – Brake, Warning – Clogged hydraulic oil filter, Warning – Engine oil pressure, Warning – Engine temperature, Warning – Hydraulic fluid temperature, Warning – Low charge, Warning – Low fuel level, Voltage meter display. INCLUDED IN COMFORT CAB: Air conditioning (ACC), Air filtering system, Fan - fresh air (3-speed), Heater, Interior light, Radio & MP3 player, Rear view mirrors (external), Rear view mirror (internal), Safety glass (tinted), Seat belt 3”, Seat - luxury for cab with suspension, Side windows (openable), Wiper with washer (front/rear)
Optional
Steel ballast front (7,720 lb), Steel ballast front + rear (14,550 lb), Air On the Run system, Asphalt temperature meter, Biodegradable hydraulic fluid, Canopy or ROPS/FOPS or Cab, Driving lights (RH or LH), Dyn@link, Dyn@link advanced, Fire extinguisher, First aid box, Heat covers for wheels, Licence plate holder with light, Mirrors (process view), Slow Moving Vehicle sign, Tool set, Towing eyelets front & rear
