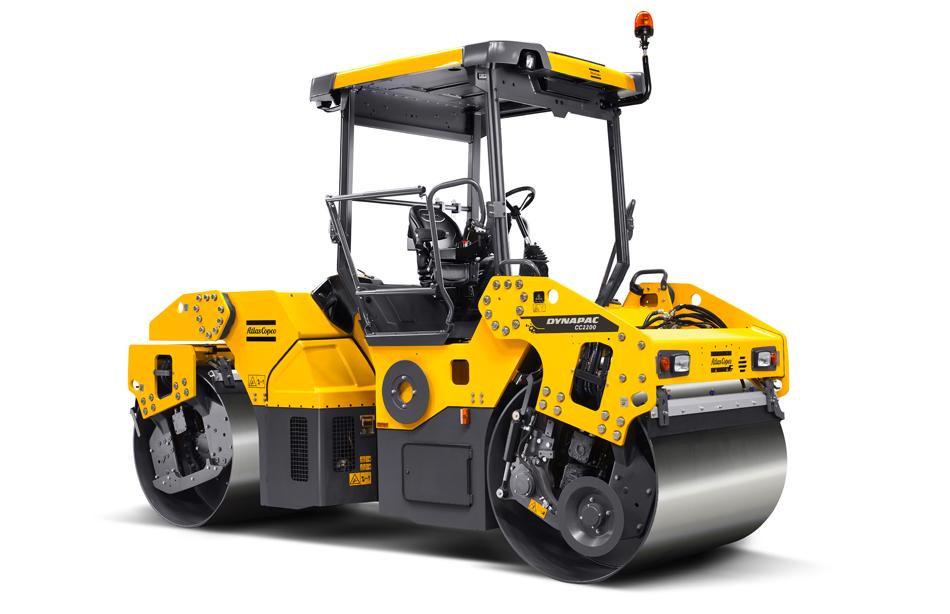

Dynapac CC2200 Double drum vibratory rollers

0
My comparison
  • Pictures
  • Dimensions
A. Wheelbase 131 in
B. Width 64 in
C. Curb clearance 28 in
D. Drum diameter 45 in
H1. Height, with ROPS/cab 118 in
H2. Height, w/o ROPS/cab 90 in
K. Ground clearance 11 in
L. Length 177 in
O. Off-set 335 mm
R. Turning radius, outside 17 ft
R1. Turning radius, outside 6570 mm
R2. Turning radius, inside 5070 mm
R3. Turning radius with off-set, outside 4890 mm
R4. Turning radius with off-set, inside 3390 mm
S. Drum shell thickness 0.8 in
W. Working width 59 in
α. Steering angle ±32°
Discontinued true
These tandem rollers are designed with efficiency in mind - application efficiency, operator efficiency, compaction control efficiency and service efficiency. Performance, visibility, operators comfort, compaction control and serviceability for the new CC line will appeal to owners, operators and service crews. The environmental benefits appeal to everyone. All models have high frequency vibration as standard. There is a number of features to the CC rollers to make servicing quick and easy, ensuring maximum uptime.
Operating Mass: 16,800 lbs
SLL (front/rear): 25.3/ 25.3 kg/cm
Compaction width: 59 in

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 19,800 lbs
Operating mass (incl. ROPS) 16,800 lbs
Operating mass (incl. Cab) 17,196 lbs
Module mass (front/rear) 8,400 lbs/ 8,400 lbs
Traction
Speed range 0 - 12 km/h
Speed range 0 - 7.5
Vertical oscillation ±7°
Max. theoretical gradeability 42 %
Engine
Type Water cooled turbo Diesel
Rated power, SAE J1995
Alternative Engine
Manufacturer/Model
Type Water cooled turbo Diesel
Rated power, SAE J1995 74 kW (99 hp ) @ 2,200 U/Min.
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
Vibration Axial piston pumps (2) with variable displacement.
Axial piston motors (2) with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency vpm

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81066 DCA-A COMPACTION ANALYZER FOR ASPHALT
Eccentric shaft kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945722
Edge press, joint cutter disc
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81100 EDGE PRESS DEVICE, JOINT CUTTER DISC, 120 MM 4.7 INCH
Double drum vibratory rollers 470PP81101 EDGE PRESS DEVICE, JOINT CUTTER DISC, 150 MM 5.9 INCH
Rotating beacon kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81095 ROTATING BEACON
Scraper kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812155791
Service kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159673 (IIIB/T4i) Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700950176 (IIIA/T3)
Double drum vibratory rollers 4812159383 (IIIB/T4i) NO. Oil
Double drum vibratory rollers 4812159385 (IIIB/T4i) Inc. Oil
Service kit , 250H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700939076 (IIIA/T3)
Service kit , 500H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700950175 (IIIA/T3)
Double drum vibratory rollers 4812159381 (IIIB/T4i) NO. Oil
Double drum vibratory rollers 4812159382 (IIIB/T4i) Inc. Oil
Service kit , 50H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159380 (IIIA/T3)
Double drum vibratory rollers 4812159380 (IIIB/T4i) Inc. Oil
Service kit , 750H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700939076 (IIIA/T3)
Shock absorber kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812156382 Split Drum
Sprinkler kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812155698
Double drum vibratory rollers 4812161288 50 pieces.
Double drum vibratory rollers 4812161289 100 pieces.
Double drum vibratory rollers 4812161290 200 pieces.
Tachograph kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81083 TACHOGRAPH
Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Working lights kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81096 std H3

Spare parts manuals

Eager to see the spare parts of Dynapac CC2200?

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Standard

 ■ Automatic vibration control (AVC)
 ■ Automatic water control (AWC)
 ■ Back-up alarm
 ■ Display: Engine temp, Fuel level, Frequency/ impactometer, Hydr. temp
    Speedometer, Tachometer, Voltage, VPM, Water level
 ■ Filters for sprinkler system
 ■ Hydraulic check points
 ■ Lunch box holder
 ■ Operator platform, shock mounted
 ■ Pressurized sprinkler system
 ■ ROPS canopy w/ suspension seat & 3" seat belt
 ■ Rotating beacon
 ■ Sliding and swiveling operator's platform
 ■ Spring loaded scrapers
 ■ Sprinkler timer
 ■ Sprinkler system additional (Two bars per drum)
 ■ Steering wheel tilt able
 ■ Vandal cover for instrument panel
 ■ Vibration quick stop
 ■ Vibration shut off front or rear drum
 ■ Warning lights: Air cleaner, Brake, Clogged hyd. fluid filter,
    Engine oil pressure/ temp, Hyd oil temp, Low charge, Low fuel
 ■ Working lights, Rops mounted

Optional

 ■ Asphalt Temp Meter
 ■ Compaction Analyzer
 ■ Drum Edge Lights
 ■ Whisper Cab Package
