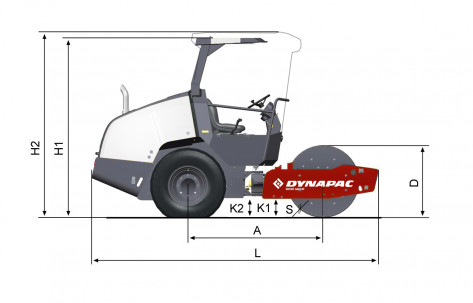

| A. Wheelbase | 73 in |
|---|---|
| B1. Width, front | 59 in |
| B2. Width, rear | 55 in |
| D. Drum diameter | 39 in |
| H1. Height, with ROPS/cab | 100 in |
| H2. Height, max. | 100 in |
| K1. Ground clearance | 10 in |
| K2. Curb clearance | 10 in |
| L. Length | 156 in |
| L1. Length | 158 in |
| O1. Overhang, right | 2 in |
| O2. Overhang, left | 2 in |
| R1. Turning radius, outside | 13 ft |
| R2. Turning radius, inside | 8 ft |
| S. Drum shell thickness | 0.87 in |
| W. Working width | 54 in |
| α. Steering angle | ±33° |

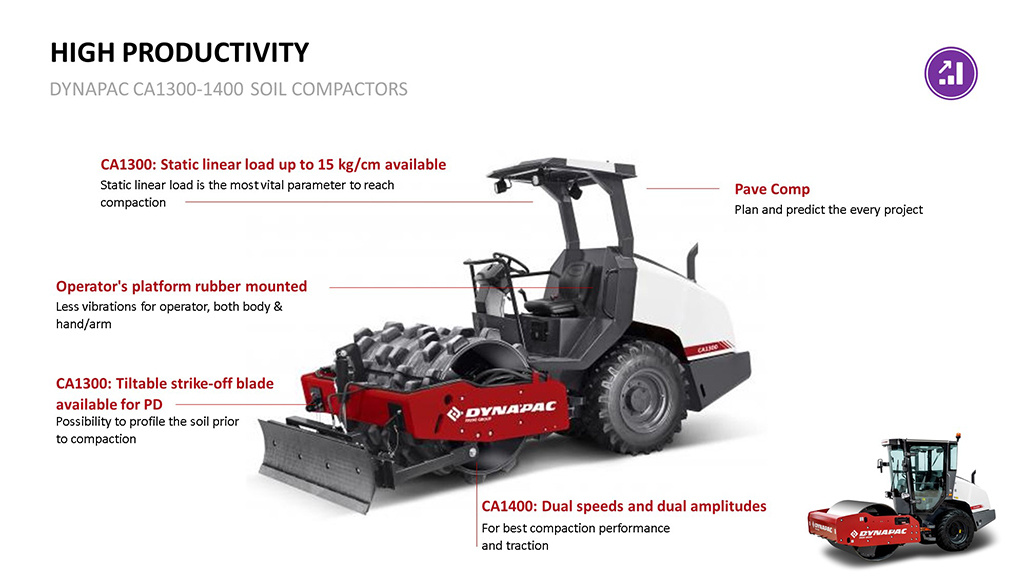

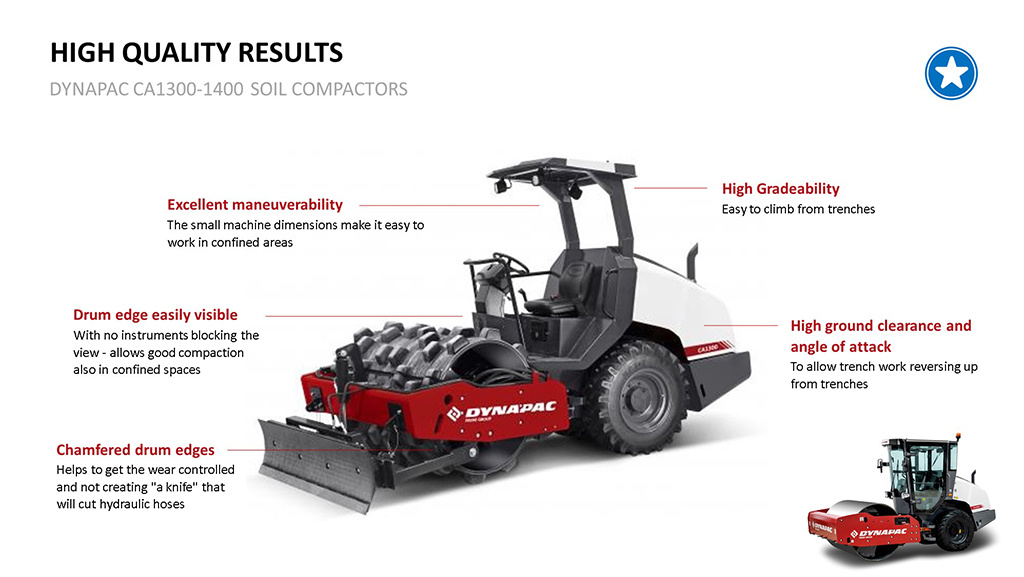

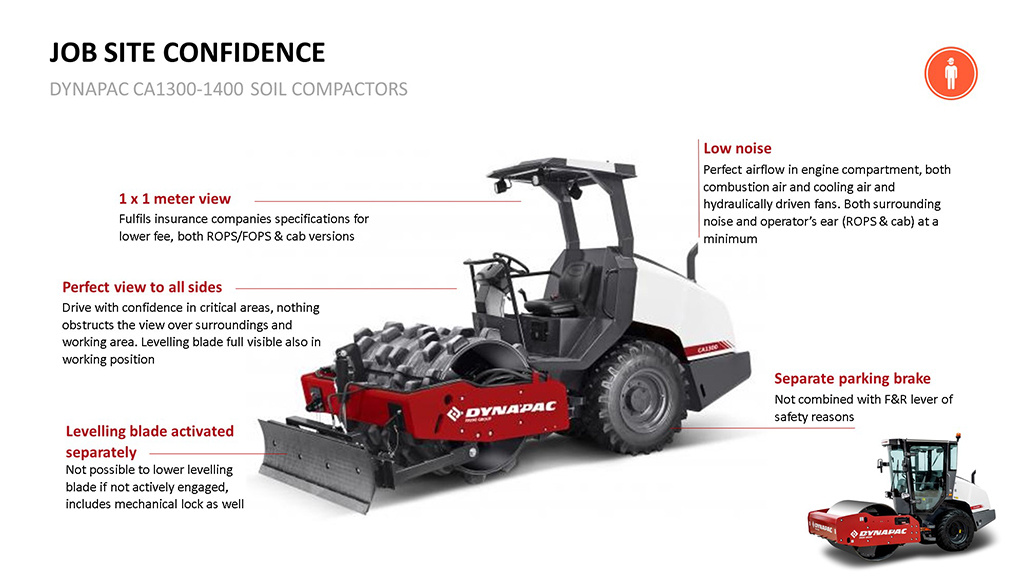

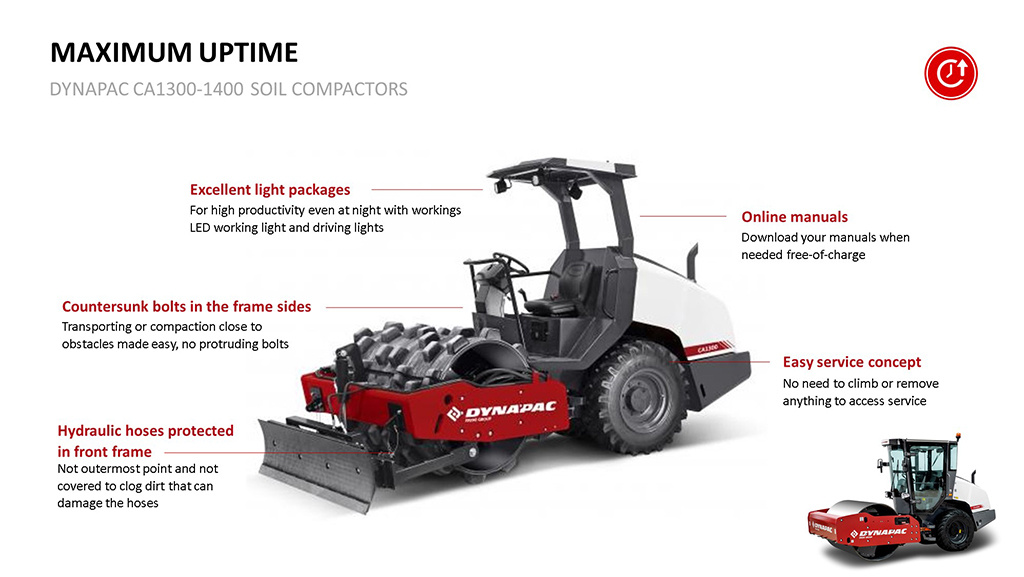

The small Dynapac soil compactors are vibratory rollers designed for compaction operations in pipe trenches, compacting roads, streets and parking lots. Due to the small size and exceptional maneuverability, these rollers are also well suited for compaction on large building foundations and industrial construction sites and in cramped spaces in connection with refilling work. The rollers are also suitable for repair work and gives good maneuverability even on very steep slopes. All types of supporting and reinforcement courses can be compacted. The PD version, equipped with pads and drum drive, is especially suitable for the compaction of silt and clayey soils.

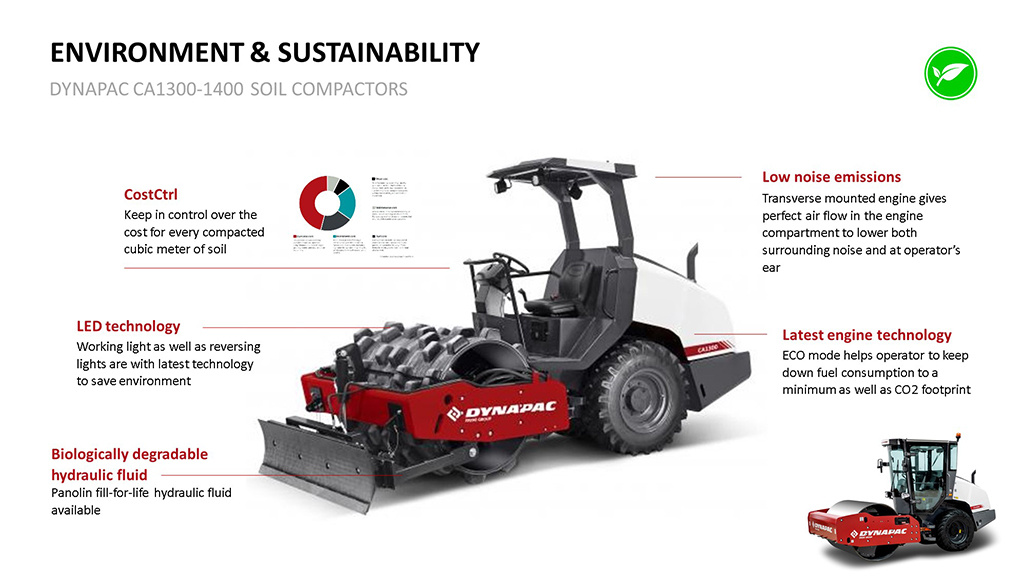

Big fuel savings with ECO!
Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.
header text here
| Masses | |
| Operating mass (incl. ROPS) | 10,600 lbs |
|---|---|
| Operating mass (incl. Cab) | 10,900 lbs |
| Module mass (front/rear) | 4,500 lbs/ 6,100 lbs |
| Max. operating mass | 12,000 lbs |
| Traction | |
| Speed range | 0-4 mph |
| Tire size (8 ply) | 12,5-20 |
| Max. theoretical gradeability | 55 % |
| Vertical oscillation | ±9° |
| Engine | |
| Manufacturer/Model | Kubota V 3307 CR-TE4 (Stage IIIB/Tier4) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 55 kW (75 hp) @ 2,200 rpm |
| Manufacturer/Model | |
| Fuel tank capacity | 31 gal |
| Alternative Engine | |
| Manufacturer/Model | Kubota V 3307 CR-TE5 (Stage V) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 55 kW (75 hp) @ 2,200 rpm |
| Fuel tank capacity | 31 gal |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motor with constant displacement. Radial piston motor with constant displacement. |
| Vibration | Gear pump/ motor with constant displacement. |
| Steering | Gear pump with constant displacem. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in rear axle and front drum motor. |
Standard
Back up alarm, Battery switch (std), Brake release, Cup and can holder, Differential lock (limited slip), Drive control (right side), Drum drive, ECO mode, Emergency stop, Engine 75 hp (Tier4final), Engine hood (lockable), Fuel level display, High mounted exhaust pipe, Horn, Hour meter display, Hydraulic checkpoints, Hydraulic fluid filter ("spin-on"), Hydraulic fluid (mineral), Interlock, Key (starter), Lifting points, Lifting pointsfor jack, Manuals (Operation & Maintenance), Manuals (Spare parts catalogue), Operator's platform (rubber mouted), Operator's station (fixed), Parking brake, ROPS(fixed) or Cab with AC/heater/fan, Seat (adjustable), Seat belt 3", Storage box (on platform), Storage for laminated manuals, Tie down points, Vandal cover (instrument panel), Warning lights (brake, engine oil pressure, engine oil temperature, Engine diagnostics, low charge, low fuel level)
