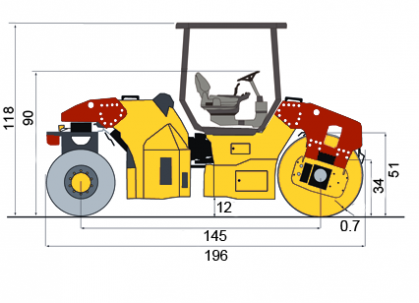

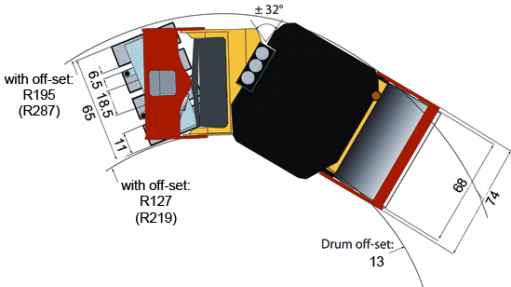

| Drum width | 68 in |
|---|---|
| Wheel module width | 65 in |
| Length | 196 in |
| Width | 74 in |
| Drum diameter | 51 in |
| Drum shell thickness | 0.7 in |
| Height, with ROPS | 118 in |
| Height, without ROPS | 90 in |
| Masses | |
| Max. operating mass | 22,900 lbs |
|---|---|
| Operating mass (incl. ROPS) | 20,900 lbs |
| Module mass (front/rear) | 11,250 lbs/ 9,650 lbs |
| Traction | |
| Speed range | 0-7,5 mph |
| Vertical oscillation | ±8° |
| Max. theoretical gradeability | 39 % |
| Engine | |
| Manufacturer/Model | Cummins QSB 4.5 IIIB/T4i |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 93 kW (110 hp ) @ 2,200 rpm |
| Fuel tank capacity | 63 gal |
| Alternative Engine | |
| Rated power [engine 2, rpm] | rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motors (3) with variable displacement. |
| Vibration | Axial piston pump with variable displacement. Axial piston motor with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in drum and wheel motors. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Combi rollers | 470PP81098 | Edge press, front right mounted. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Combi rollers | 470PP81099 | Edge press device, joint cutter disc, 80mm (3.1 in) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Combi rollers | 4700945807 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Combi rollers | 4700945806 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Combi rollers | 4700948505 |
