COMPACTION

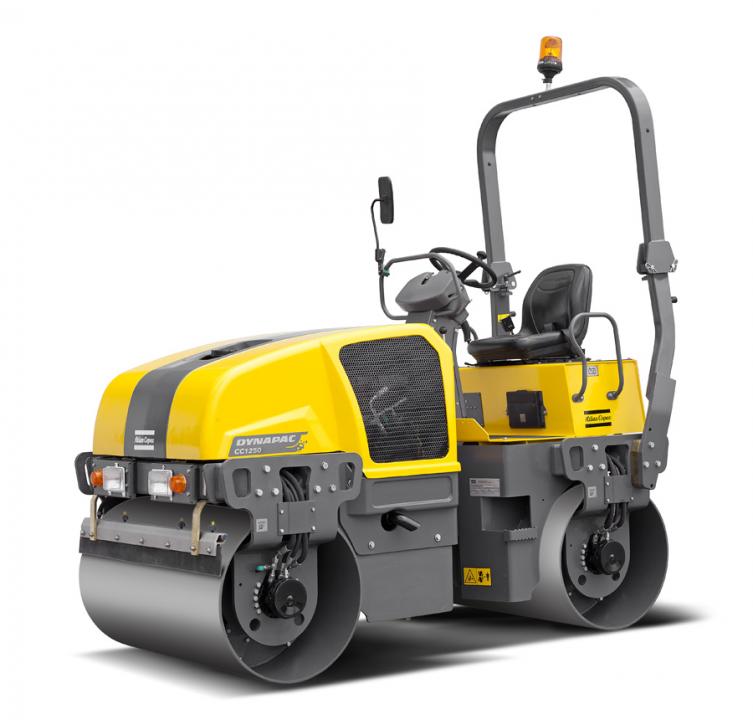

Dynapac CC1250 Double drum vibratory rollers

0
My comparison
  • Pictures

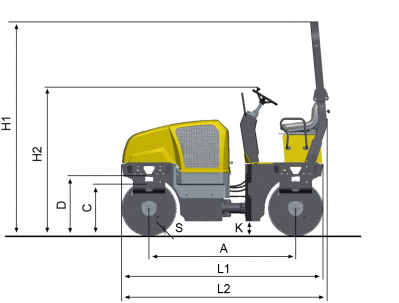

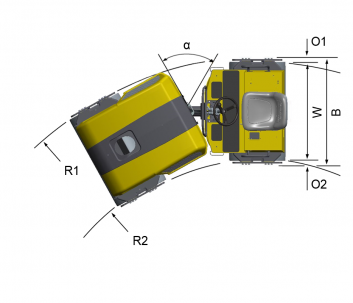

  • Dimensions
A. Wheelbase 1811 mm
B. Width 1262 mm
C. Curb clearance 572.5 mm
D. Drum diameter 682 mm
H1. Height, with ROPS/cab 2649 mm
H2. Height, w/o ROPS/cab 1836 mm
K. Ground clearance 183 mm
L1. Length 2487 mm
L2. Length (ROPS) 2,588 mm
O1. Overhang, right 31 mm
O2. Overhang, left 31 mm
R1. Turning radius, outside 4100 mm
R2. Turning radius, inside 2900 mm
S. Drum shell thickness 13 mm
W. Drum width 1200 mm
α. Steering angle ±29°
Discontinued true
Operating Mass: 3000 kg
SLL (front/rear): 11.66/ 13.3 kg/cm
Compaction width: 1200 mm

Technical data

Masses
Max. operating mass 3100 kg
Operating mass (incl. ROPS) 3000 kg
Module mass (front/rear) 1400 kg/ 1600 kg
Traction
Speed range 0-13 km/h
Vertical oscillation ±10°
Max. theoretical gradeability 38 %
Engine
Manufacturer/Model Kubota D1703-M
Type Water cooled diesel engine
Rated power, SAE J1995 26.1 kW (35 hp ) @ 2800 rpm
Fuel tank capacity 50 l
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (2) with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Gear Oil 300 5 liters Every 2000 hours or yearly
Engine
Type of fluid Volume Additional info
Atlas Copco Engine 100 6 liters Change oil every 250 hours
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease
Hydraulic system
Type of fluid Volume Additional info
Atlas Copco Hydraulic Oil 300 40 liters Change oil every 2000 hours (yearly)
Panolin HLP Synth 46 40 liters Change oil every 2000 hours or yearly. For machines with biological oil.

Service Kits

Driving lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812115247
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938893
Dual F/R control kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812115152 DUAL F/R CONTROL
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938909
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938914
COMPACTION Double drum vibratory rollers 4700938915 (12mm)
Service kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812159668 Start up kit
COMPACTION Double drum vibratory rollers 4812160468 Start up kit (CC1300 T4 s/n 10000374xFA0*****-)
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156268 No. oil
COMPACTION Double drum vibratory rollers 4812159595 (Inc. oil)
COMPACTION Double drum vibratory rollers 4812160466 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
COMPACTION Double drum vibratory rollers 4812160467 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156288 No. oil
COMPACTION Double drum vibratory rollers 4812159564 (Inc. oil)
COMPACTION Double drum vibratory rollers 4812160462 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
COMPACTION Double drum vibratory rollers 4812160463 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156266 No. oil
COMPACTION Double drum vibratory rollers 4812159565 (Inc. oil)
COMPACTION Double drum vibratory rollers 4812160464 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
COMPACTION Double drum vibratory rollers 4812160465 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156265 No. oil
COMPACTION Double drum vibratory rollers 4812159563 (Inc. oil)
COMPACTION Double drum vibratory rollers 4812160460 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
COMPACTION Double drum vibratory rollers 4812160461 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156288 No. oil
COMPACTION Double drum vibratory rollers 4812159564 (Inc. oil)
COMPACTION Double drum vibratory rollers 4812160462 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
COMPACTION Double drum vibratory rollers 4812160463 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938887
COMPACTION Double drum vibratory rollers 4812160851 Drum
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940594
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938575

Spare parts manuals

Eager to see the spare parts of Dynapac CC1250?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1739ACbaseC24on/off11293.8100on5574off70.82017-08-15 15:14:24Dynapac CC1250ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1739ACbaseN24off11294.3100.5on5624off70.82017-08-15 15:14:24Dynapac CC1250ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1739ACbindC24on/off11293.8100on5574off70.82017-08-15 15:14:24Dynapac CC1250ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1739ACbindN24off11294.3100.5on5624off70.82017-08-15 15:14:24Dynapac CC1250ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1739ACsurfC24on/off11293.8100on5574off70.82017-08-15 15:14:24Dynapac CC1250ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1739ACsurfN24off11294.3100.5on5624off70.82017-08-15 15:14:24Dynapac CC1250ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1739PAC24on/off11294.6102.3on5544off70.82017-08-15 15:14:24Dynapac CC1250PA_CPorous asphalt; CrushedPorous asphalt1739SMAC24on/off11293.8100on5574off70.82017-08-15 15:14:24Dynapac CC1250SMA_CStone mastic asphalt; CrushedStone mastic asphalt224004120068008600104805003000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC1250?

Please Log in or Register to MyDynapac to get access.
