COMPACTION

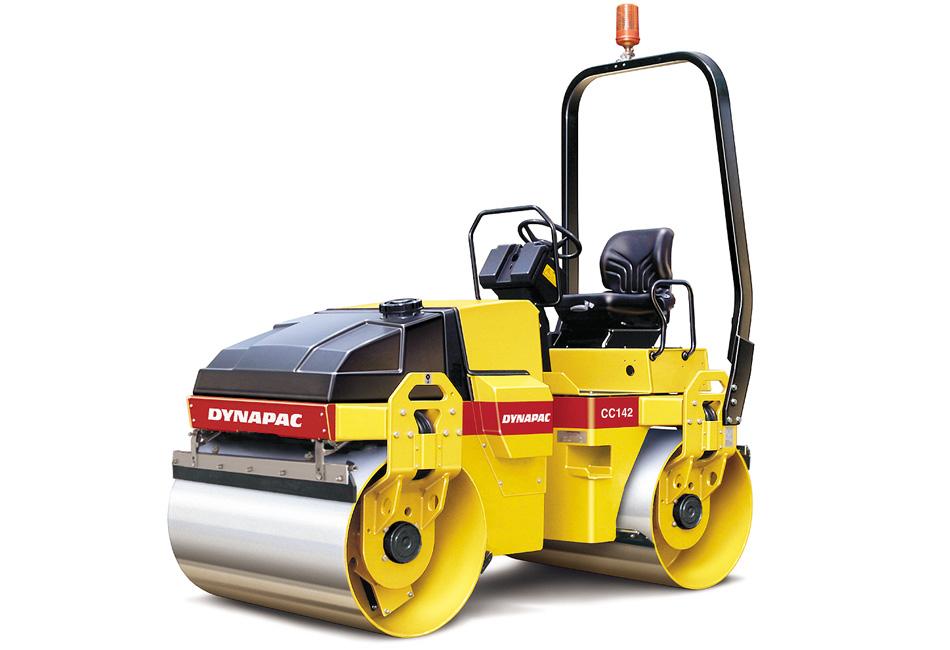

CC142 Double drum vibratory rollers

0
My comparison
  • Pictures

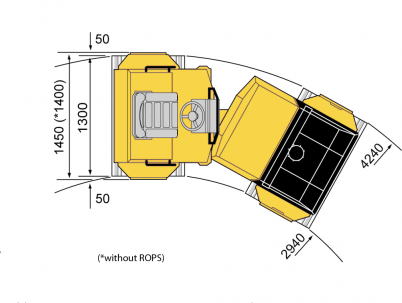

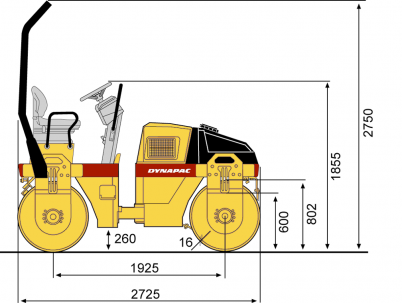

  • Dimensions
Drum width 1300 mm
Drum diameter 802 mm
Drum shell thickness 16 mm
Length 4490 mm
Length, with ROPS 2725 mm
Length, without ROPS 2725 mm
Width, with ROPS 1450 mm
Width, without ROPS 1400 mm
Height, with ROPS 2750 mm
Height, without ROPS 1855 mm
Discontinued true
The CC142 is a typical ”town roller” for compacting asphalt compounds on streets, parking lots and industrial sites. The capacity for this type of work is adequate for following a smaller-size surface finisher.
Operating Mass: 3900 kg
SLL (front/rear): 14.5/ 15.4 kg/cm
Compaction width: 1300 mm

Technical data

Masses
Max. operating mass 4030 kg
Operating mass (incl. ROPS) 3900 kg
Traction
Speed range (Dual/TC/AS) 0-10
Vertical oscillation ±10°
Max. theoretical gradeability 41 %
Engine
Manufacturer/Model Deutz D2011 L03 I
Type Air cooled diesel
Rated power, SAE J1995 34 kW (45.0 hp ) @ 2600 rpm
Fuel tank capacity 50 l
Alternative Engine
Manufacturer/Model
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake		 Failsafe brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Gear Oil 300 5 liters Every 2000 hours or yearly
Engine
Type of fluid Volume Additional info
Atlas Copco Engine 100 6 liters Change oil every 250 hours
Grease
Type of fluid Volume Additional info
Dynapac Roller Grease
Hydraulic system
Type of fluid Volume Additional info
Atlas Copco Hydraulic Oil 300 40 liters Change oil every 2000 hours (yearly)
Panolin HLP Synth 46 40 liters Change oil every 2000 hours or yearly. For machines with biological oil.

Service Kits

Driving lights kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812115247
Drum rotation kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938892
Dual F/R control kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812115152 DUAL F/R CONTROL
Eccentric shaft kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938908
Scraper kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938913
Service kit , 1000H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156267
Service kit , 250H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156288
Service kit , 500H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156267
Service kit , 50H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156265
Service kit , 750H
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4812156288
Shock absorber kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938885
Sprinkler kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700940594
Steering hitch kit
Category Subcategory P/N Additional info
COMPACTION Double drum vibratory rollers 4700938575

Spare parts manuals

Eager to see the spare parts of CC142?

Please Log in or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of CC142?

Please Log in or Register to MyDynapac to get access.
