压实设备

Dynapac CC900G 双钢轮振动压路机

0
我的比较
  • 图片
  • 尺寸

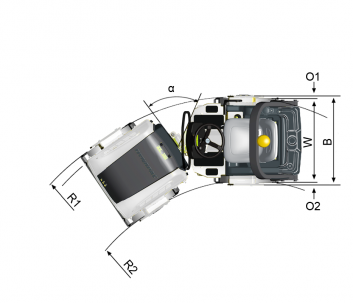

α. 转向角 ±34°

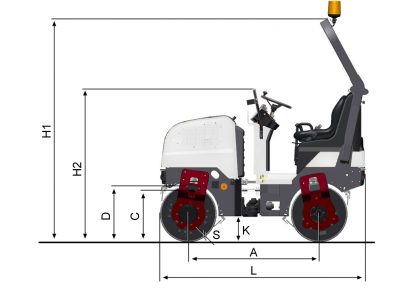

A. 轴距 1,350 mm
B. 整机宽度 970 mm
C. 贴边高度 465 mm
D. 钢轮直径 584 mm
H1. 高度, 含防翻架/ 驾驶室 2,300 mm
H2. 高度, 不含防翻架/ 驾驶室 1,585 mm
K. 离地间隙 261 mm
L. 整机长度 2,107 mm
O1. 右侧突出 35 mm
O2. 左侧突出 35 mm
R1. 转向半径, 外侧 2,700 mm
R2. 转向半径, 内侧 1,800 mm
S. 钢轮厚度 9 mm
W. 钢轮宽度 900 mm
Discontinued false

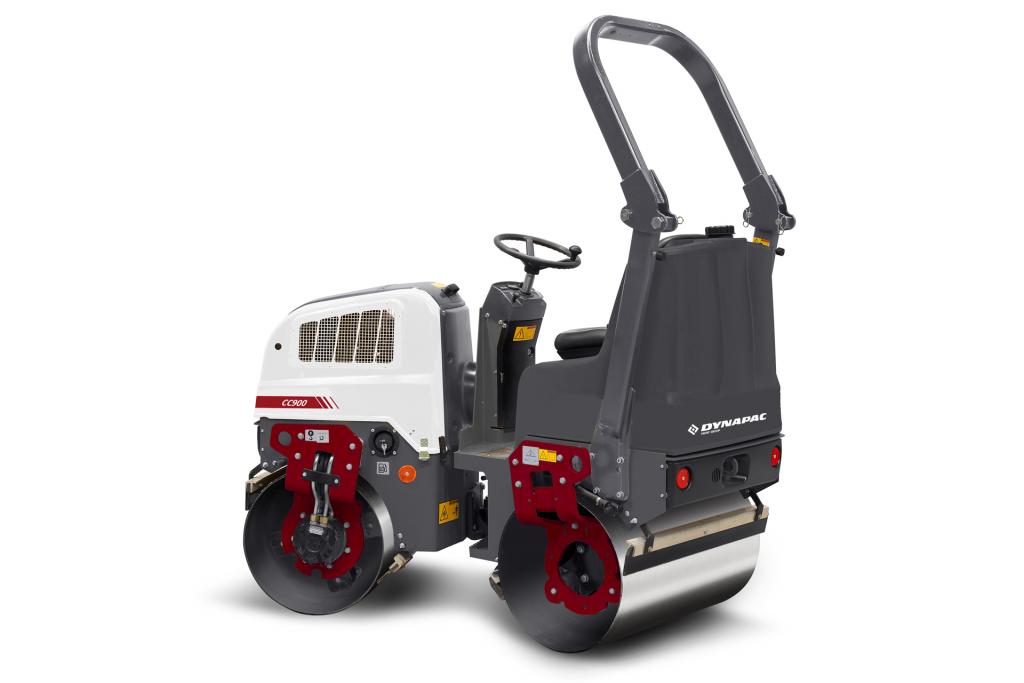

The Dynapac CC900G is a small asphalt roller with a drum width of 900 mm. This machine is equipped with a powerful petrol engine, which together with the large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. It's primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. Dynapac CC900G has vibration on the front drum and a static rear drum. This machine is not CE-certified.
操作重量: 1,250 kg
静线负荷: N/A
压实宽度: 900 mm

技术参数

质量
最大工作重量 1,300 kg
装有 ROPS 时的工作重量 1,250 kg
模重 前/后 545 kg/ 705 kg
牵引
速度范围 0-8 km/h
垂直摆角 ±13°
理论爬坡能力 35 %
发动机
制造商/型号 Honda GX630RH QYD
類型 汽油发动机
额定功率, SAE J1995 14.2 kW (19 hp ) @ 3,000 rpm
油箱容积 23 l
可选发动机
制造商/型号 Loncin LC2V78F-1
類型 汽油发动机
额定功率, SAE J1995 14.7 kW (20 hp ) @ 3,600 rpm
液压系统
驱动 变量柱塞泵，定量柱塞马达
振动 定量齿轮泵
转向 定量齿轮泵
伺服制动 静液压
停车/紧急制动 失效制动系统
{phrase:compaction_oscillation}
Oscillation frequency Hz

操作和维护手册

请注册或登录我的戴纳派克进行访问

服务包

Service kit , 1000H
分类 设备种类 零件号 附加信息
Compact planers 4700690287
Service kit , 500H
分类 设备种类 零件号 附加信息
Compact planers 4700690286
Side shield kit, wear ski
分类 设备种类 零件号 附加信息
Compact planers D299000829

压实数据

AsphaltComp infoAsphaltComp info1620ACbaseC24on/off11293.399.6on5444off70.82017-08-15 15:14:27Dynapac CC900GACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1620ACbaseN24off11293.8100.1on5494off70.82017-08-15 15:14:27Dynapac CC900GACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1620ACbindC24on/off11293.399.6on5444off70.82017-08-15 15:14:27Dynapac CC900GACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1620ACbindN24off11293.8100.1on5494off70.82017-08-15 15:14:27Dynapac CC900GACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1620ACsurfC24on/off11293.399.6on5444off70.82017-08-15 15:14:27Dynapac CC900GACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1620ACsurfN24off11293.8100.1on5494off70.82017-08-15 15:14:27Dynapac CC900GACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1620PAC24on/off11293.5101.2on5504off70.82017-08-15 15:14:27Dynapac CC900GPA_CPorous asphalt; CrushedPorous asphalt1620SMAC24on/off11293.399.6on5444off70.82017-08-15 15:14:27Dynapac CC900GSMA_CStone mastic asphalt; CrushedStone mastic asphalt204060801001000pdfwebtable
