VB125TV(E) • Dynapac

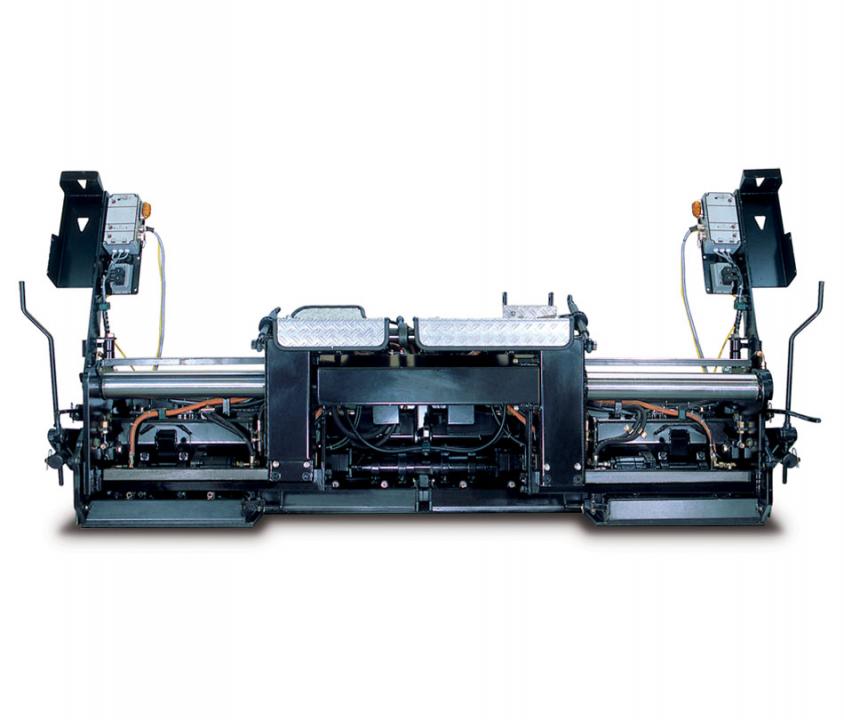

VB125TV(E) Screeds

Pictures
Dimensions

Basic width	1.20 m
Working width, minimum (with reducing shoe)	0.60 m
Working width, hydraulic extendable	2.40 m
Working width, max.	3.10 m
Width (sole plate)	mm

The VB125TV screed is available as electrical heated version as well as gas heated version. Extendable to 3,10 m by use of mechanically extension parts and hydraulically extendable from 1,20 m to 2,40 m. The VB125TV-E is designed for use with the Paver F5CS.

Mass, basic width: 966 kg

Basic paving width: 1.20 m

Min. paving width: 0.60 m

Max. paving width: 3.10 m

Technical data

Masses
Mass (basic width)	966 kg

Service Kits

Gas hose kit

Category	Subcategory	P/N	Additional info
	Screeds	D299000738

Screed plate kit

Category	Subcategory	P/N	Additional info
	Screeds	D299000515	Hardox 400 without Tamper Blades

Tamper guide plate kit

Category	Subcategory	P/N	Additional info
	Screeds	D299000514

Schematics

Eager to see the schematics of VB125TV(E)?

Please Log in or Register to MyDynapac to get access.
