Dynapac

Paving

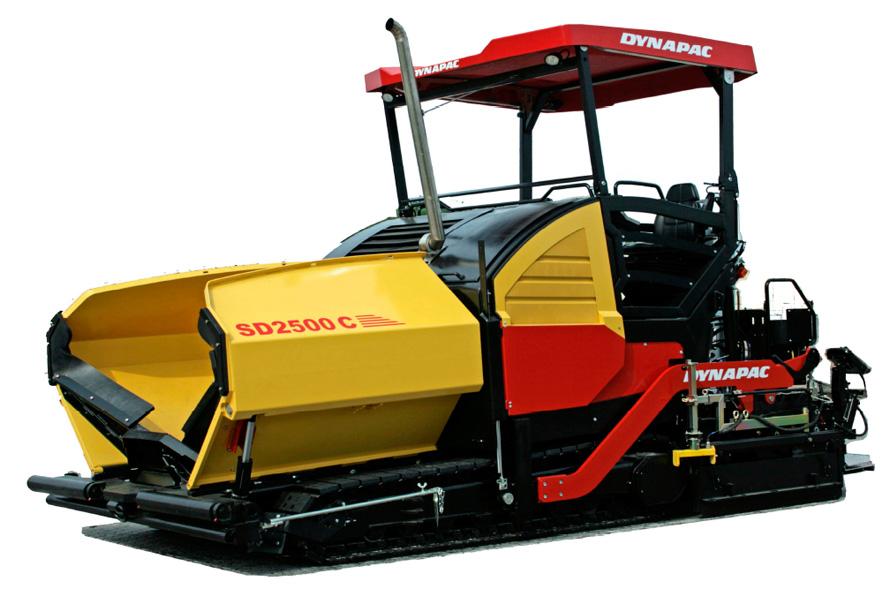

SD2500C Tracked pavers

Pictures
Dimensions

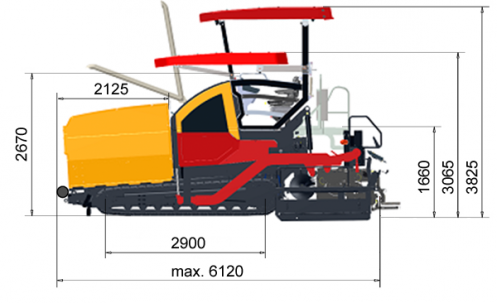

Blueprint side view SD2500C

A. Axle track	1,995 mm
B2. Width, standard	2.55 m
H3. Height

Basic paving width: 2.55 m

Max. paving width: 9.00 m

Max. layer thickn.: 320 mm

Theor placement cap.: 650 t/h

Technical data

Masses
Weight	18.50 t
Traction
Paving speed	up to 28 m/min
Transport speed	4 km/h
Engine
Manufacturer/Model	Cummins QSB 6.7-C173
Emissions according to	EU 3A / Tier 3
Rated power, SAE J1995	129 kW (175 hp ) @ 2,200 rpm with infinitely variable eco-mode
Electrical system	24 V
Fuel tank capacity	350 l
Operation
Operator console	Slidable left / right
Conveyor
Conveyor type	Dual bar feeder

Service Kits

Auger wear part kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812027478	380 mm

Conveyor chain kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812029178	single quantity of bars
	Tracked pavers	4812027444	double quantity of bars

Conveyor drive kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812035552

Conveyor guide kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812027440

Conveyor guide roller kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812035553

Conveyor plate kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812027441

Hopper rubber kit, reinforced, hydr. front flap

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812007263	Valid for s/n 0G000974, 988, 998, 1001, 1016, ff

Hopper rubber kit, standard, hydr. front flap

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812045834
	Tracked pavers	4812011023	Valid for s/n 0G000974, 988, 998, 1001, 1016, ff

Hopper rubber kit; standard

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812007262	Valid for s/n 0G000974, 988, 998, 1001, 1016, ff
	Tracked pavers	4812045783

Rubber pad kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812035550

Service kit , 1000H

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812046970	COM4 TIER4 Stage2 Valid for s/n 0G00974, 977, 979, 981, 984, 985, 990, 991, 992, 993, 995, 998-1002, 1008, 1011, 1016, 1017, 1018, 1020, 1024, 1025, ff
	Tracked pavers	4812042200	Tier 4
	Tracked pavers	4812046969	Tier 3, stage 2
	Tracked pavers	4812041235	Tier 3

Service kit , 500H

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812043984	COM4 Tier 4 Including oil
	Tracked pavers	4812042198	Tier 4
	Tracked pavers	4700691229	Tier 3
	Tracked pavers	4812043983	Tier 3 Including oil
