Paving

F6-4W Wheeled pavers

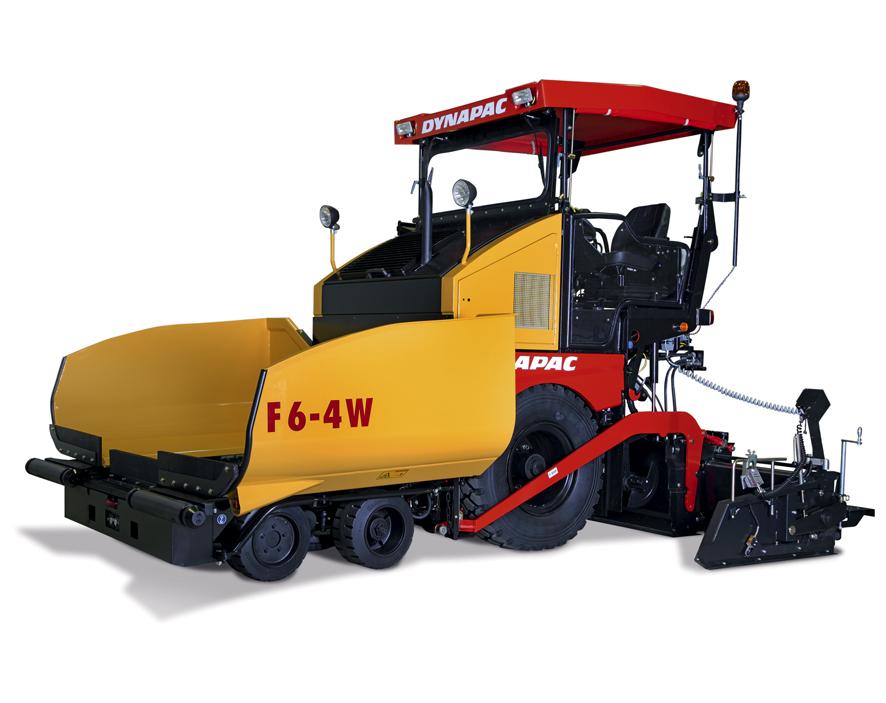

  • Pictures

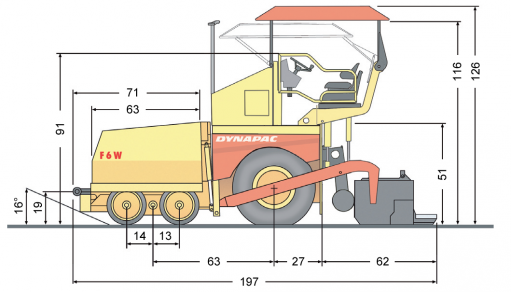

  • Dimensions
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
Designed as a versatiled wheeled paver, the F6-4W with four wheel drive and integrated anti-spin system performes an important factor of the F6-family. This paver is ideally suitable for laying bituminous mixes, rolled or lean-mix concrete, ballast and loose mineral mixes for set-paved substrates. The Dynapac F6W is intended for a wide spectrum of uses requiring exceptional mobility and placement quality – such as new roads, resurfacing, maintaining and repairing secondary and rural roads, narrow streets and alleys, car parks and areas of large open-plan building sites.
Basic paving width: 1.70 m
Max. paving width: N/A
Max. layer thickn.: 270 mm
Theor placement cap.: 250 t/h

Technical data

Masses
Weight 8.50 t
Traction
Paving speed 0 - 32 m/min
Maximum paving speed m/s
Transport speed 18 km/h
Engine
Manufacturer/Model Deutz TD 2011 L04
Rated power 52 kW (71 hp ) @ 2,300 rpm
Emissions according to EU 3A/Tier 3
Electrical system 2 x 12V, 72Ah
Alternative Engine
Manufacturer/Model
Conveyor
Conveyor type Dual bar feeder
Conveyor width 350 mm
Conveyor control On/off switch, running direction of each side independently reversible

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Wheeled pavers D299000714
Conveyor chain kit
Category Subcategory P/N Additional info
Wheeled pavers D299000858 38 bars
Wheeled pavers 4812011992 26 bars
Conveyor drive kit
Category Subcategory P/N Additional info
Wheeled pavers 4812009338
Conveyor guide kit
Category Subcategory P/N Additional info
Wheeled pavers 4812045903
Conveyor guide roller kit
Category Subcategory P/N Additional info
Wheeled pavers 4812009337
Conveyor plate kit
Category Subcategory P/N Additional info
Wheeled pavers 4812045895
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Wheeled pavers 4812009415
Hopper rubber kit; with front hopper
Category Subcategory P/N Additional info
Wheeled pavers 4812009414
Service kit , 1000H
Category Subcategory P/N Additional info
Wheeled pavers 4812025554 Tier 3
Service kit , 500H
Category Subcategory P/N Additional info
Wheeled pavers D299000754 Tier 3

Schematics
