F121-4W/D • Dynapac

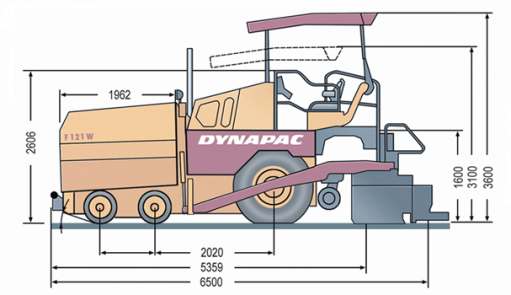

H4. Dumping height
K. Ground clearance
L2. Length, hopper

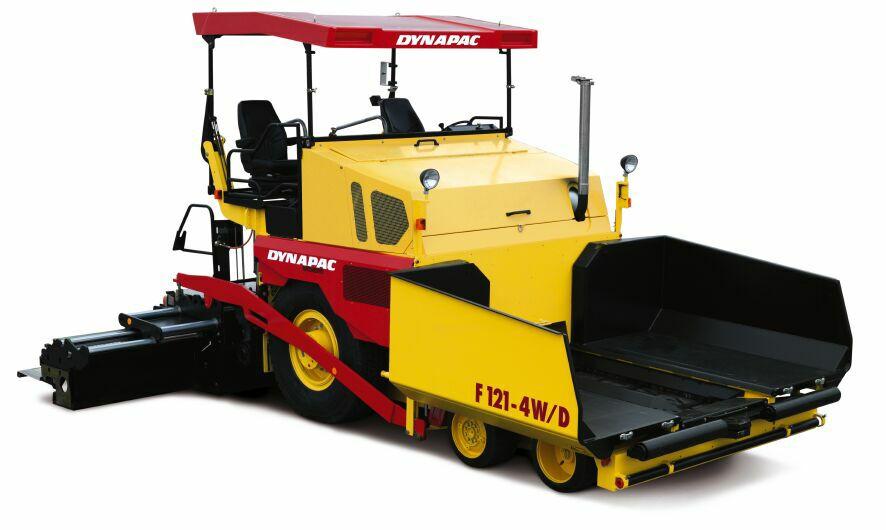

With the highly manoeuverable F121W/D of the wheeled paver range Dynapac has released a new direct drive system on the 2,55m basic width range. The machine is equipped with a two speed planetary gearbox for choice of working speed and travelling speed (19,5km/h / 11,8 mph). Available with a six wheel drive and standard anti slip system and diffential lock this machine can cope with working widths of max. 7,30 m. TEXT for 4W/D

Basic paving width: 2.55 m

Max. paving width: 6.60 m

Max. layer thickn.: 300 mm

Theor placement cap.: 600 t/h

Technical data

Masses
Weight	17 t
Traction
Paving speed	0 - 29 m/min
Maximum paving speed	m/s
Transport speed	19.5 km/h
Engine
Manufacturer/Model	Deutz TCD2013L06V
Rated power	120 kW (163.0 hp ) @ 1,800 rpm
Emissions according to	EU/3A
Electrical system	24V
Alternative Engine
Manufacturer/Model
Conveyor
Conveyor type	Dual bar feeder
Conveyor width	600 mm
Conveyor control	Proportional speed control, both sides driven independently

Service Kits

Auger wear part kit

Subcategory	P/N	Additional info
Wheeled pavers	4700679526	310 mm
Wheeled pavers	4700679586	380 mm
Wheeled pavers	4700679526	310mm - for complete machine
Wheeled pavers	4700679586	380mm - complete machine

Conveyor chain kit

Category	Subcategory	P/N	Additional info
	Wheeled pavers	4700679581	single quantity of bars
	Wheeled pavers	4700679582	double quantity of bars

Conveyor drive kit

Category	Subcategory	P/N	Additional info
	Wheeled pavers	D299010010
	Wheeled pavers	D299000697	COMIII

Conveyor guide kit

Category	Subcategory	P/N	Additional info
	Wheeled pavers	D299000701	COMIII, mit hydraulische Mulde
	Wheeled pavers	D299000702	COMIII, without hydraulic hopper

Conveyor guide roller kit

Category	Subcategory	P/N	Additional info
	Wheeled pavers	D299010011

Conveyor plate kit

Subcategory	P/N	Additional info
Wheeled pavers	4700679580	For machines builded before June 2003
Wheeled pavers	D299000700	COMIII
Wheeled pavers	4700690559	For machines builded after June 2003

Service kit , 1000H

Subcategory	P/N	Additional info
Wheeled pavers	4700688081	6BT5.9-C126 (w/o belts)
Wheeled pavers	4700691335	Deutz TCD2013 L06, 140KW, machine s/n 634133 - 634138, 634141, 634145, 634146, 634152, 634156 - 634158, 634160, 634161, 634164, 634169, 634172, 634173, 634175 - 634178, 634186, 634195, 634201, 634205, 634210, 634217, 634219, 634221 - 634223, 634225
Wheeled pavers	D299000751	Deutz TCD2012, L62 V, 120KW, machine s/n 634167, 634168, 634171, 634179, 634181, 634184, 634185, 634188, 634189, 634192, 634193, 634196, 634198, 634200, 634202, 634207, COMIII

Service kit , 500H

Subcategory	P/N	Additional info
Wheeled pavers	4700688080	6BT5.9-C126 (w/o belts)
Wheeled pavers	4700691333	Deutz TCD2013 L06, 140KW, machine s/n 634133 - 634138, 634141, 634145, 634146, 634152, 634156 - 634158, 634160, 634161, 634164, 634169, 634172, 634173, 634175 - 634178, 634186, 634195, 634201, 634205, 634210, 634217, 634219, 634221 - 634223, 634225
Wheeled pavers	4700691333	Deutz TCD2012, L62 V, 120KW, machine s/n 634167, 634168, 634171, 634179, 634181, 634184, 634185, 634188, 634189, 634192, 634193, 634196, 634198, 634200, 634202, 634207, COMIII

Schematics

Eager to see the schematics of F121-4W/D?

Please Log in or Register to MyDynapac to get access.
