Compaction

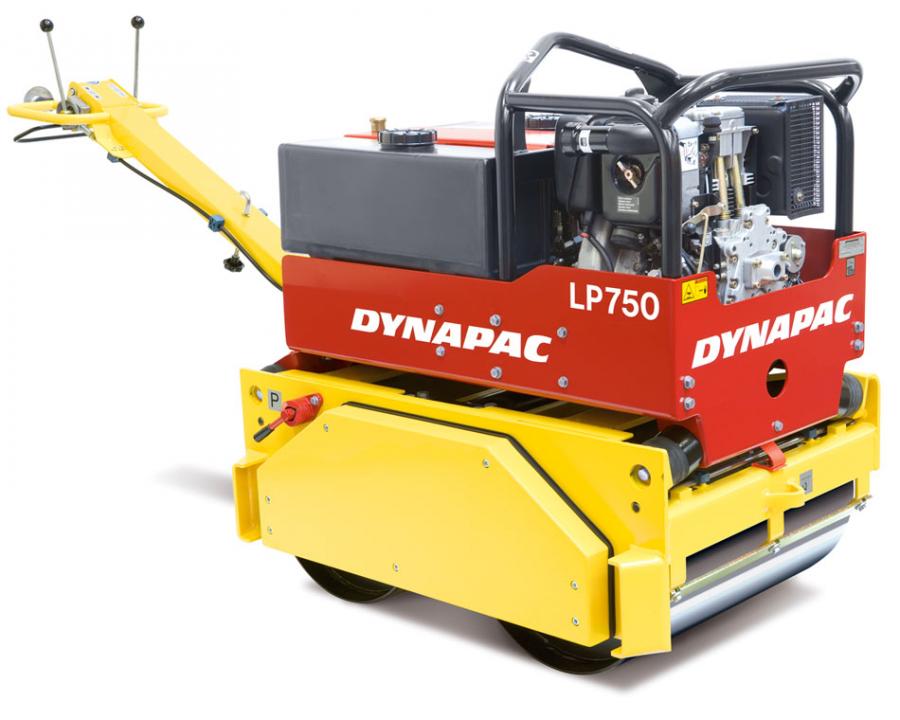

LP750 (Manual) Duplex rollers

0
My comparison
  • Pictures
  • Dimensions
Drum width 750 mm
Width 880 mm
Height 1,280 mm
Length 2,640 mm
Discontinued true
The LP750 is a heavy duplex roller that is ideal for the compaction of soil and asphalt compounds. The lower part of the machine has a small overhang to allow the roller to be run close to obstructions, eg, walls. The machine is equipped with large watertank and a dead-man’s handle. Options are electric starter and push-stop.
Operating Mass: 993.0 kg
Static linear load: 6.3 kg/cm
Compaction width: 750 mm

Technical data

Masses
Net mass 953 kg
Operating mass (CE) 993.0 kg
Traction
Speed 60 m/min
Theor. gradeability 35 %
Engine
Manufacturer Hatz
Type Supra 1D81S
Fuel Diesel
Rated power 8.90 kW
Rated power @ 2,900 rpm
Rated power (rating standard) SAE J1995
Hydraulic system
Driving Hydraulic/Mechanical
Vibration Hydraulic
