Dynapac CP1200W Pneumatic rollers

0
My comparison
  • Pictures

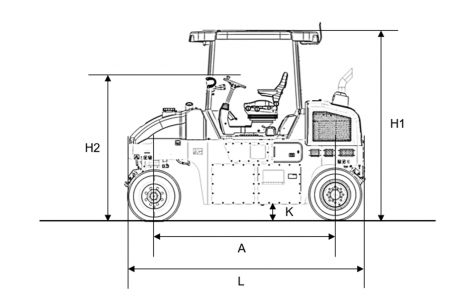

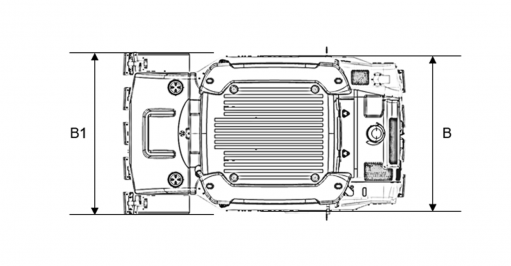

  • Dimensions
A. Wheelbase 2,760 mm
B. Width 2,080 mm
H1. Height, with ROPS/cab 2,950 mm
H2. Height, w/o ROPS/cab 2,210 mm
K. Ground clearance 260 mm
L. Length 3,660 mm
R. Turning radius, outside 7090 mm
Discontinued false
Operating Mass: 5,750 kg
Wheel loads with max ballast: 1,330 kg
Rolling width:2,080 mm

Technical data

Masses
Operating mass (incl. ROPS) 5,750 kg
Mass with max. ballast 12,000 kg
Traction
Transmission Hydrostatic, direct drive motors at rear tyres
Speed low km/h
Speed high km/h
Theor. gradeability 30 %
Speed range 0 - 18 km/h
Engine
Manufacturer/Model Cummins QSF 2.8 (Tier 4F)
Rated power, SAE J1995 55 kW (74 hp ) @ 2,200 rpm
Type Water cooled turbo Diesel
Fuel tank capacity 216 l
Electrical system 12 V
Alternative Engine
Manufacturer/Model Cummins QSF 2.8 (Tier 3A)
Type Water cooled turbo Diesel
Hydraulic system
Service brake Hydrost. braking on drive wheels (rear)
Parking/Emergency brake Spring - applied on drive wheels (rear)

Compaction data

AsphaltComp infoAsphaltComp info1658ACbaseC25off470.82017-08-15 15:14:28Dynapac CP1200ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1658ACbaseN25off470.82017-08-15 15:14:28Dynapac CP1200ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1658ACbindC25off470.82017-08-15 15:14:28Dynapac CP1200ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1658ACbindN25off470.82017-08-15 15:14:28Dynapac CP1200ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1658ACsurfC25off470.82017-08-15 15:14:28Dynapac CP1200ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1658ACsurfN25off470.82017-08-15 15:14:28Dynapac CP1200ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1658PAC25off470.82017-08-15 15:14:28Dynapac CP1200PA_CPorous asphalt; CrushedPorous asphalt1658SMAC25off470.82017-08-15 15:14:28Dynapac CP1200SMA_CStone mastic asphalt; CrushedStone mastic asphalt204060801001000pdfwebtable
