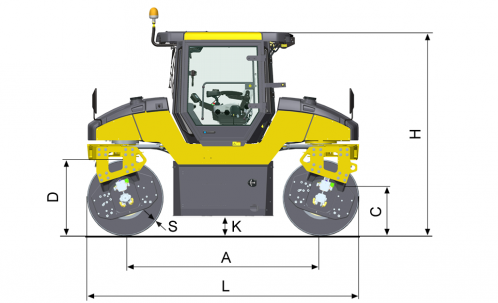

| A. Wheelbase | 2,870 mm |
|---|---|
| B. Width | 1,620 mm |
| C. Curb clerance | 720 mm |
| D. Drum diameter | 1,120 mm |
| H. Height, with ROPS/cab | 2,990 mm |
| K. Ground clearance | 270 mm |
| L. Length | 3,990 mm |

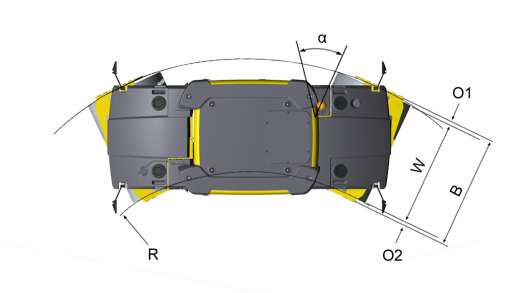

| O1. Overhang, right | 60 mm |
| O2. Overhang, left | 60 mm |
| R. Turning radius, inside | 2.65 m |
| S. Drum shell thickness | 18 mm |
| W. Drum width | 1,500 mm |
| α. Steering angle | ±25° |
| Masses | |
| Max. operating mass | 10,600 kg |
|---|---|
| Operating mass (incl. Cab) | 8,300 kg |
| Module mass (front/rear) | 4,150 kg/ 4,150 kg |
| Traction | |
| Speed range (Dual/TC/AS) | 0-12 |
| Vertical oscillation | ±6° |
| Theor. gradeability | 41 % |
| Engine | |
| Manufacturer/Model | Deutz TD3.6 L4 IV/T4F |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 55 kW (74 hp ) @ 2,200 rpm |
| Fuel tank capacity | 115 l |
| Alternative Engine | |
| Manufacturer/Model | |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement Axial piston motors (4) with variable displacement Flow divider |
| Vibration | Axial piston pumps (2) with variable displacement Axial piston motors (2) with constant dispacement |
| Steering | Load sensing system. Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in both drums. |
| {phrase:compaction_oscillation} | |
| Oscillation frequency | Hz |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700938891 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700945721 | |||
| Double drum vibratory rollers | 4700938900 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700938916 | For units with standard sprinkler pipes. | ||
| Double drum vibratory rollers | 4700945719 | For units with integrated sprinkler pipes. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700940239 | |||
| Double drum vibratory rollers | 4700938550 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700940238 | |||
| Double drum vibratory rollers | 4700939516 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700940237 | |||
| Double drum vibratory rollers | 4700938548 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700945717 | |||
| Double drum vibratory rollers | 4700938880 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700937884 | For units with standard sprinkler pipes | ||
| Double drum vibratory rollers | 4700940594 | For units with integrated sprinkler pipes | ||
| Double drum vibratory rollers | 4812161288 | 50 pieces. | ||
| Double drum vibratory rollers | 4812161289 | 100 pieces. | ||
| Double drum vibratory rollers | 4812161290 | 200 pieces. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Double drum vibratory rollers | 4700938558 |
