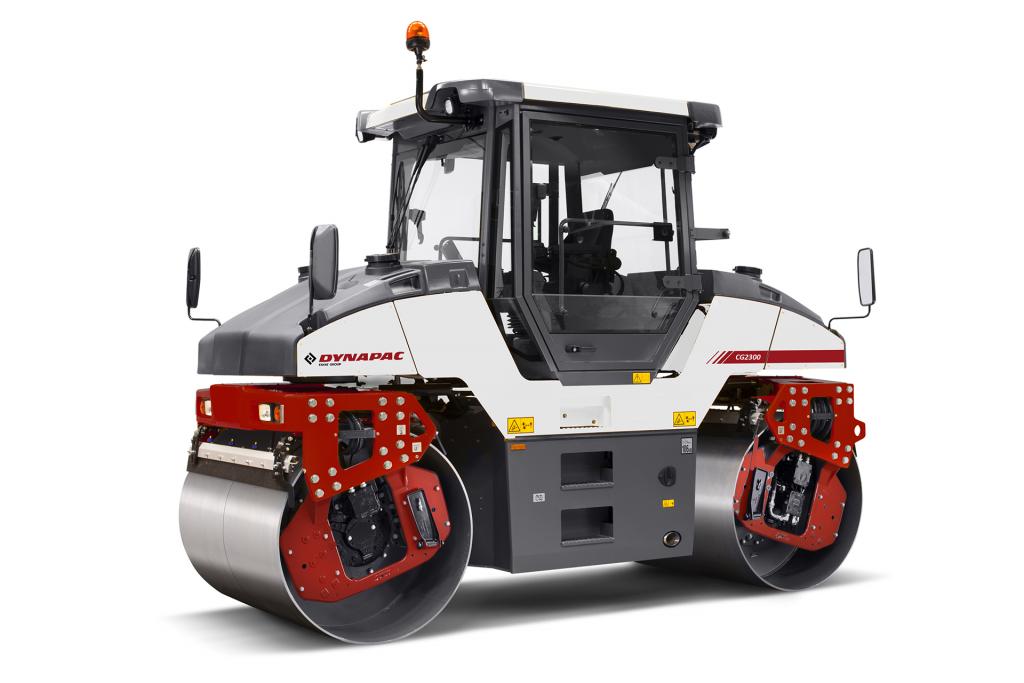

Dynapac CG2300 Double drum vibratory rollers

0
My comparison
  • Pictures

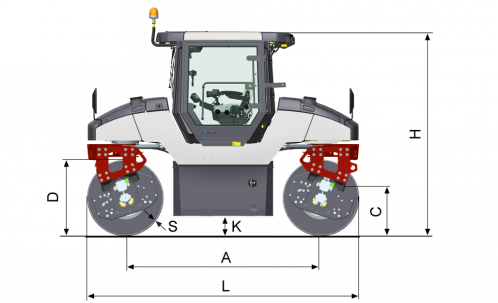

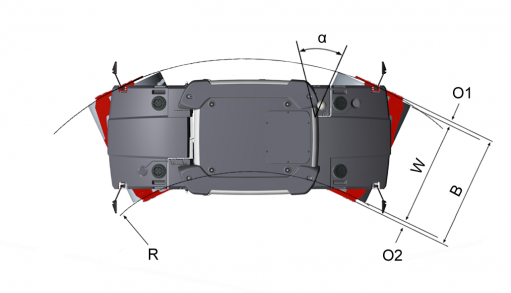

  • Dimensions
A. Wheelbase 2,870 mm
B. Width 1,620 mm
C. Curb clerance 720 mm
D. Drum diameter 1,120 mm
H. Height, with ROPS/cab 2,990 mm
K. Ground clearance 270 mm
L. Length 3,990 mm
O1. Overhang, right 60 mm
O2. Overhang, left 60 mm
R. Turning radius, inside 2.65 m
S. Drum shell thickness 18 mm
W. Drum width 1,500 mm
α. Steering angle ±25°
Discontinued false
Operating Mass: 8,300 kg
SLL (front/rear): 27.7/ 27.7 kg/cm
Compaction width: 1,500 mm

Features & benefits

Dynapac Dyn@Lyzer
Dyn@Lyzer

The Dynapac compaction control and documentation system for soil and asphalt rollers

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 10,600 kg
Operating mass (incl. Cab) 8,300 kg
Module mass (front/rear) 4,150 kg/ 4,150 kg
Traction
Speed range (Dual/TC/AS) 0-12
Vertical oscillation ±6°
Theor. gradeability 41 %
Engine
Manufacturer/Model Deutz TD3.6 L4 IV/T4F
Type Water cooled turbo Diesel
Rated power, SAE J1995 55 kW (74 hp ) @ 2,200 rpm
Fuel tank capacity 115 l
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement
Axial piston motors (4) with variable displacement
Flow divider
Vibration Axial piston pumps (2) with variable displacement
Axial piston motors (2) with constant dispacement
Steering Load sensing system. Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Compaction Analyzer for asphalt (DCA-A)
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81163 DCA-A COMPACTION ANALYZER FOR ASPHALT, ONLY EQUIPMENT
Driving lights kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81144
Drum rotation kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700938891
Eccentric shaft kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945903
Edge press kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81098 EDGE PRESS, FRONT RIGHT MOUNTED.
Edge press, joint cutter disc
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81100 EDGE PRESS DEVICE, JOINT CUTTER DISC, 120 MM 4.7 INCH
Rotating beacon kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81095 ROTATING BEACON
Service kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159671 (IIIA/T3) Start up kit
Double drum vibratory rollers 4812159669 (IIIB/T4i) Start up kit
Double drum vibratory rollers 4812274590 (IIIA/T3) 1000 Hours Start up kit (exept chinese market)
Service kit , 1000H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159355 (IIIA/T3) No. Oil
Double drum vibratory rollers 4812159358 (IIIA/T3) Inc Oil
Double drum vibratory rollers 4812159355 (IIIB/T4i) No. Oil
Double drum vibratory rollers 4812159358, 4812159356 (IIIB/T4i) Inc. oil
Double drum vibratory rollers 4700945807 (IIIA/T3)
Double drum vibratory rollers 4812160269 (IIIA/T3)
Double drum vibratory rollers 4700945807 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Double drum vibratory rollers 4812271801 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 2000H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159361 (IIIA/T3) Inc Oil
Double drum vibratory rollers 4812159361, 4812159359 (IIIB/T4i) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812274593 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Double drum vibratory rollers 4812271799 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 500H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159353 (IIIA/T3) No. Oil
Double drum vibratory rollers 4812159354 (IIIA/T3) Inc Oil
Double drum vibratory rollers 4812159353 (IIIB/T4i) No. Oil
Double drum vibratory rollers 4812159354 (IIIB/T4i) Inc. oil
Double drum vibratory rollers 4700945806 (IIIA/T3)
Double drum vibratory rollers 4700945806 (IIIA/T3)
Double drum vibratory rollers 4700945806 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Double drum vibratory rollers 4812271800 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 50H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159352 (IIIA/T3) Inc Oil
Double drum vibratory rollers 4812159352 (IIIB/T4i) Inc. oil
Double drum vibratory rollers 4700945805 (IIIA/T3)
Double drum vibratory rollers 4812159352 (IIIA/T3)
Double drum vibratory rollers 4700945805 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Double drum vibratory rollers 4700945805, 4812271798 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Service kit , 750H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812274593 (No Oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Double drum vibratory rollers 4812271799 (Except China market) (Inc oil) CC4200 (IIIA/T3) s/n 10000320x0C002131-,3500-
Shock absorber kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945904
Sprinkler kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945908
Double drum vibratory rollers 4812161288 50 pieces.
Double drum vibratory rollers 4812161289 100 pieces.
Double drum vibratory rollers 4812161290 200 pieces.
Tachograph kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81083 TACHOGRAPH
Double drum vibratory rollers 470PP81162 TACHOGRAPH, ONLY INSTRUMENT
Working lights kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 470PP81096 Std H3 lights
Double drum vibratory rollers 470PP81097 Xenon lights

Compaction data
