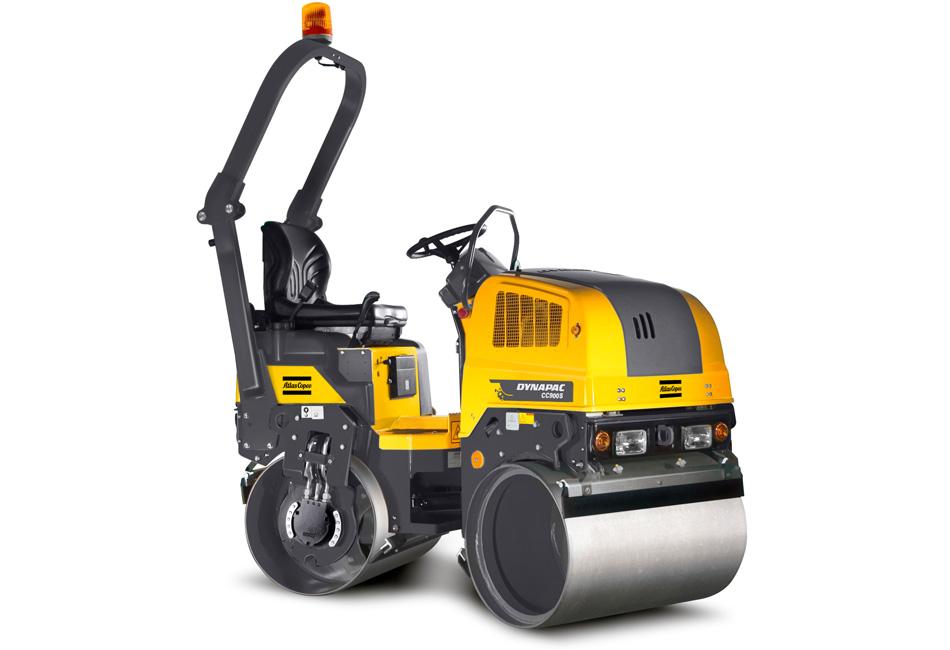

Dynapac CC900S Double drum vibratory rollers

0
My comparison
  • Pictures

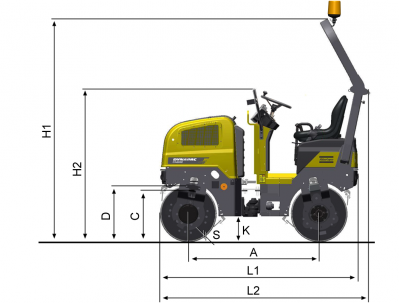

  • Dimensions
A. Wheelbase 1,350 mm
B1. Width 970 mm
B2. Width, protrude 25 mm
B3. Width, overlap 60 mm
C. Curb clerance 584 mm
D. Drum diameter 584 mm
H1. Height, with ROPS/cab 2,300 mm
H2. Height, w/o ROPS/cab 1,585 mm
K. Ground clearance 250 mm
L1. Length 2,040 mm
L2. Length (ROPS) 2,095 mm
O1. Overhang, right 35 mm
O2. Overhang, left 35 mm
R. Turning radius, outside 2,575 mm
R2. Turning radius, inside
S. Drum shell thickness 13 mm
W. Drum width 900 mm
α. Steering angle ±32°
Discontinued true
Operating Mass: 1,640 kg
SLL (front/rear): 8.8/ 9.4 kg/cm
Compaction width: 900 mm

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Dynapac Stage IV / TIER 4f
Stage IV / TIER 4f

Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

Technical data

Masses
Max. operating mass 1,705 kg
Operating mass (incl. ROPS) 1,640 kg
Module mass (front/rear) 790 kg/ 850 kg
Traction
Speed range (Dual/TC/AS) 0-9 km/h
Vertical oscillation ±13°
Theor. gradeability 50 %
Engine
Manufacturer/Model Kubota D1105-E4B T4f
Type Water cooled diesel
Rated power, SAE J1995 18 kW (24 hp ) @ 2,800 rpm
Fuel tank capacity 23 l
Alternative Engine
Manufacturer/Model
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Service Kits

Drum rotation kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945711
Eccentric shaft kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945710
Scraper kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700940673
Service kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812160159 Start up kit (CC1000 s/n 10000360x0A012890-)
Service kit , 1000H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700940210
Double drum vibratory rollers 4812160151 (CC1000 s/n 10000360x0A012890-) No. oil
Double drum vibratory rollers 4812160152 (CC1000 s/n 10000360x0A012890-) Inc. oil
Service kit , 250H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812160397 (CC1000 s/n 10000360x0A012890-) No. oil
Service kit , 500H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700940209
Double drum vibratory rollers 4812160098 (CC1000 s/n 10000360x0A012890-) No. oil
Double drum vibratory rollers 4812160099 (CC1000 s/n 10000360x0A012890-) Inc. oil
Service kit , 50H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700940208
Double drum vibratory rollers 4812160096 (CC1000 s/n 10000360x0A012890-) No. oil
Double drum vibratory rollers 4812160097 (CC1000 s/n 10000360x0A012890-) Inc. oil
Service kit , 750H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812160397 (CC1000 s/n 10000360x0A012890-) No. oil
Shock absorber kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945552
Slow moving vehicle (SMV) sign kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700391951 SMV (SLOW MOVING VEHICLE) SIGN FOR STD TANK
Sprinkler kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812161290 200 pieces.
Double drum vibratory rollers 4812161288 50 pieces.
Double drum vibratory rollers 4812161289 100 pieces.
Steering hitch kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700945928

Spare parts manuals

Eager to see the spare parts of Dynapac CC900S?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1659ACbaseC24on/off11293.499.7on5454off70.82017-08-15 15:14:27Dynapac CC900SACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1659ACbaseN24off11293.9100.2on5504off70.82017-08-15 15:14:28Dynapac CC900SACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1659ACbindC24on/off11293.499.7on5454off70.82017-08-15 15:14:28Dynapac CC900SACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1659ACbindN24off11293.9100.2on5504off70.82017-08-15 15:14:28Dynapac CC900SACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1659ACsurfC24on/off11293.499.7on5454off70.82017-08-15 15:14:28Dynapac CC900SACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1659ACsurfN24off11293.9100.2on5504off70.82017-08-15 15:14:28Dynapac CC900SACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1659PAC24on/off11293.7101.4on5504off70.82017-08-15 15:14:28Dynapac CC900SPA_CPorous asphalt; CrushedPorous asphalt1659SMAC24on/off11293.499.7on5454off70.82017-08-15 15:14:28Dynapac CC900SSMA_CStone mastic asphalt; CrushedStone mastic asphalt204060801001000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC900S?

Please Log in or Register to MyDynapac to get access.
