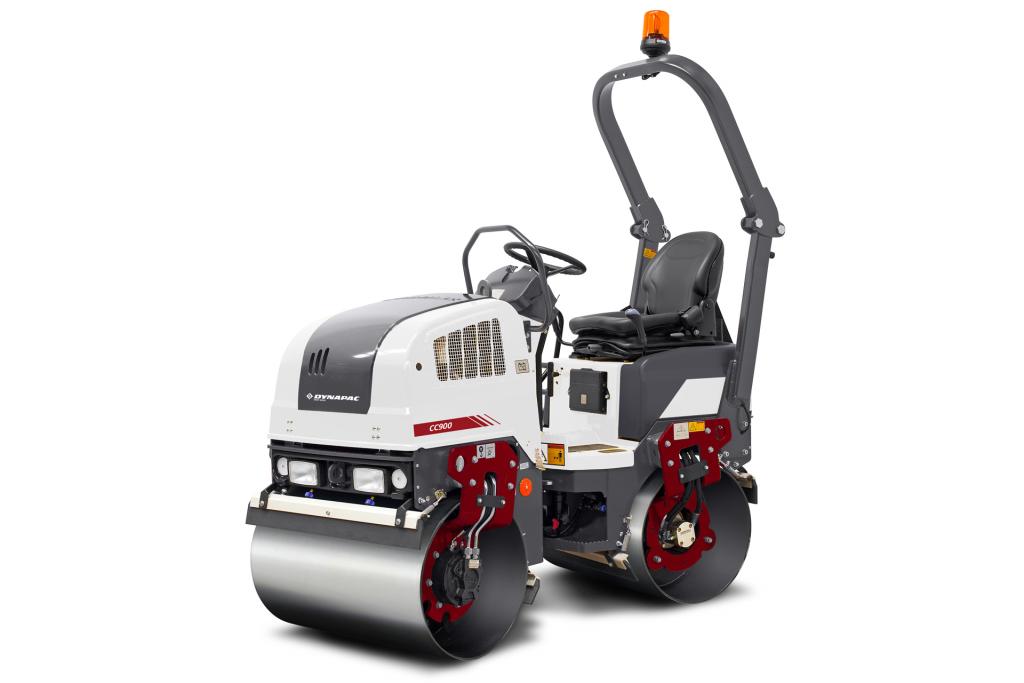

Dynapac CC900 Double drum vibratory rollers

0
My comparison
  • Pictures

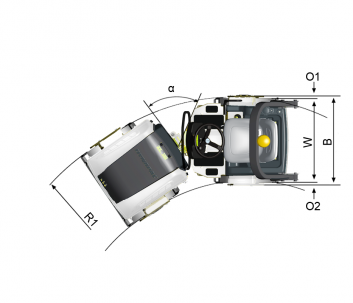

  • Dimensions
A. Wheelbase 1,350 mm
B. Width 970 mm
C. Curb clerance 465 mm
D. Drum diameter 584 mm
H1. Height, with ROPS/cab 2,300 mm
H2. Height, w/o ROPS/cab 1,585 mm
K. Ground clearance 255 mm
L1. Length 2,040 mm
L2. Length (ROPS) 2,095 mm
O1. Overhang, right 35 mm
O2. Overhang, left 35 mm
R1. Turning radius, outside 2,810 mm
R2. Turning radius, inside
S. Drum shell thickness 13 mm
W. Drum width 900 mm
α. Steering angle ±34°
Discontinued false
The Dynapac CC900 is a member of the small asphalt roller family. With a drum width of 900 mm it's primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. The large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. Propulsion and vibration naturally come as standard on both drums.
Operating Mass: 1,600 kg
SLL (front/rear): 8.3/ 9.4 kg/cm
Compaction width: 900 mm

Technical data

Masses
Max. operating mass 1,665 kg
Operating mass (incl. ROPS) 1,600 kg
Module mass (front/rear) 750 kg/ 850 kg
Traction
Speed range (Dual/TC/AS) 0-9 km/h
Vertical oscillation ±13°
Theor. gradeability 40 %
Engine
Manufacturer/Model Kubota D1105-E4B T4f
Type Water cooled diesel
Rated power, SAE J1995 18 kW (24 hp ) @ 2,800 rpm
Fuel tank capacity 23 l
Alternative Engine
Manufacturer/Model
Rated power, SAE J1995
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency Hz

Service Kits

Driving lights kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812115247
Drum rotation kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700938893
Dual F/R control kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812115152 DUAL F/R CONTROL
Eccentric shaft kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700938909
Scraper kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700938914
Double drum vibratory rollers 4700938915 (12mm)
Service kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812159668 Start up kit
Double drum vibratory rollers 4812160468 (Start up kit) CC1300 T4 s/n 10000374xFA0*****-
Service kit , 1000H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812156268 (no. oil)
Double drum vibratory rollers 4812159595 (Inc. oil)
Double drum vibratory rollers 4812160466 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
Double drum vibratory rollers 4812160467 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 250H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812156288 (no. oil)
Double drum vibratory rollers 4812159564 (Inc. oil)
Double drum vibratory rollers 4812160462 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
Double drum vibratory rollers 4812160463 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 500H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812156266 (no. oil)
Double drum vibratory rollers 4812159565 (Inc. oil)
Double drum vibratory rollers 4812160464 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
Double drum vibratory rollers 4812160465 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 50H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812156265 (no. oil)
Double drum vibratory rollers 4812159563 (Inc. oil)
Double drum vibratory rollers 4812160460 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
Double drum vibratory rollers 4812160461 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Service kit , 750H
Category Subcategory P/N Additional info
Double drum vibratory rollers 4812156288 (no. oil)
Double drum vibratory rollers 4812159564 (Inc. oil)
Double drum vibratory rollers 4812160462 CC1300 T4 s/n 10000374xFA0*****- (No. Oil)
Double drum vibratory rollers 4812160463 CC1300 T4 s/n 10000374xFA0*****- (Inc. Oil)
Shock absorber kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700938887
Double drum vibratory rollers 4812160851 Drum
Sprinkler kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700940594
Double drum vibratory rollers 4812161288 50 pieces.
Double drum vibratory rollers 4812161289 100 pieces.
Double drum vibratory rollers 4812161290 200 pieces.
Steering hitch kit
Category Subcategory P/N Additional info
Double drum vibratory rollers 4700938575

Spare parts manuals

Eager to see the spare parts of Dynapac CC900?

Please Log in or Register to MyDynapac to get access.

Compaction data

AsphaltComp infoAsphaltComp info1532ACbaseC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900ACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course1532ACbaseN24off11293.9100.2on5524off70.82017-08-15 15:14:27Dynapac CC900ACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course1532ACbindC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900ACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course1532ACbindN24off11293.9100.2on5524off70.82017-08-15 15:14:27Dynapac CC900ACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course1532ACsurfC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900ACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course1532ACsurfN24off11293.9100.2on5524off70.82017-08-15 15:14:27Dynapac CC900ACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course1532PAC24on/off11293.8101.5on5514off70.82017-08-15 15:14:27Dynapac CC900PA_CPorous asphalt; CrushedPorous asphalt1532SMAC24on/off11293.499.7on5474off70.82017-08-15 15:14:27Dynapac CC900SMA_CStone mastic asphalt; CrushedStone mastic asphalt204060801001000pdfwebtable
LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac CC900?

Please Log in or Register to MyDynapac to get access.
