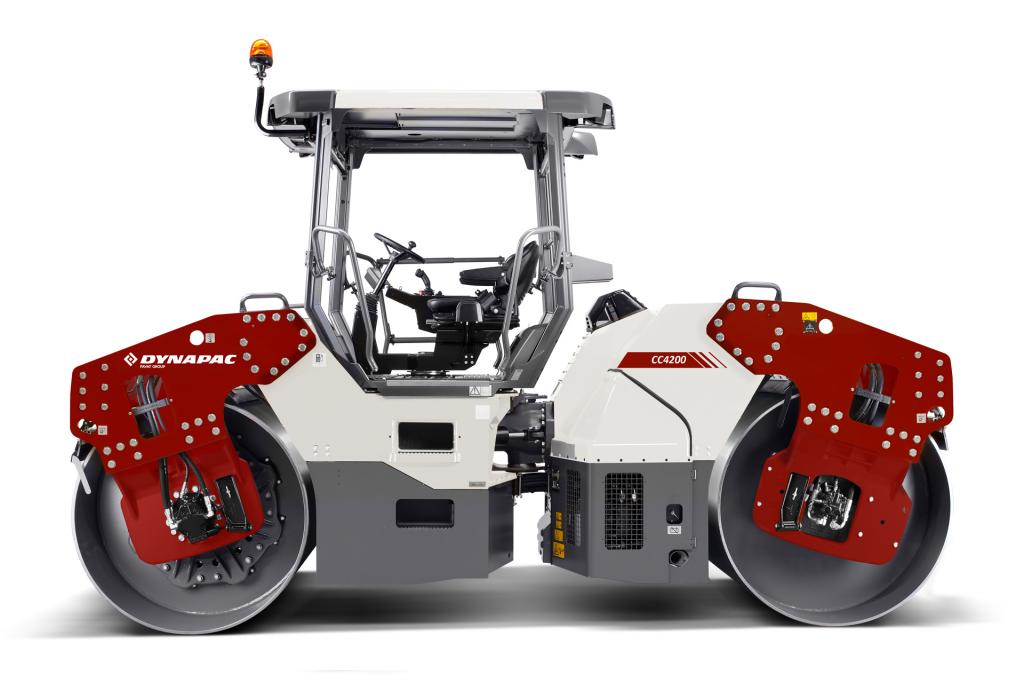

Dynapac CC4200 • Dynapac

Operating Mass: 10,200 kg

SLL (front/rear): 29.5/ 29.5 kg/cm

Compaction width: 1,730 mm

The Dynapac compaction control and documentation system for soil and asphalt rollers

A tool to monitor and control their machine fleet efficiently and conveniently.

Big fuel savings with ECO!

Masses
Max. operating mass	11,350 kg
Operating mass (incl. ROPS)	10,200 kg
Module mass (front/rear)	5,100 kg/ 5,100 kg
Traction
Speed range (Dual/TC/AS)	0-12 km/h
Vertical oscillation	±7°
Theor. gradeability	45 %
Engine
Manufacturer/Model	Cummins QSB 4.5 IIIB/T4i
Type	Water cooled turbo Diesel
Rated power, SAE J1995	97 kW (130 hp ) @ 2,200 rpm
Fuel tank capacity	240 l
Alternative Engine
Manufacturer/Model	Cummins QSB4.5 IIIA/T3
Type	Water cooled turbo Diesel
Rated power, SAE J1995	93 kW (125 hp ) @ 2,200 rpm
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving	Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement.
Vibration	Axial piston pumps (2) with variable displacement. Axial piston motors (2) with constant displacement.
Steering	Gear pump with constant displacement.
Service brake	Hydrostatic in forward and reverse lever.
Parking/Emergency brake	Failsafe multidisc brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency	Hz

Please Log in or Register to MyDynapac to get access.

Eager to see the spare parts of Dynapac CC4200?

Please Log in or Register to MyDynapac to get access.

Please Log in or Register to MyDynapac to get access.

Eager to see the schematics of Dynapac CC4200?

Please Log in or Register to MyDynapac to get access.

Compaction
