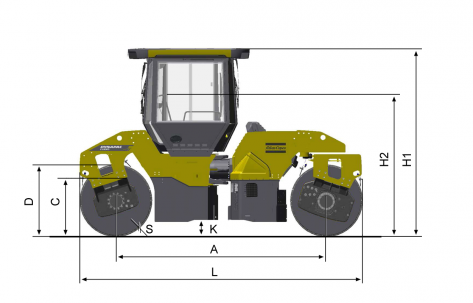

| A. Wheelbase | 3,340 mm |
|---|---|
| B. Width | 1,940 mm |
| C. Curb clerance | 715 mm |
| D. Drum diameter | 1,150 mm |
| H1. Height, with ROPS/cab | 2,990 mm |
| H2. Height, w/o ROPS/cab | 2,275 mm |
| K. Ground clearance | 270 mm |
| L. Length | 4,490 mm |

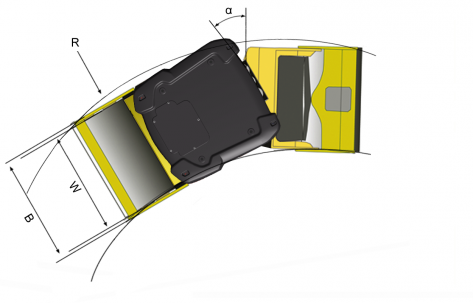

| R. Turning radius, outside | 6690 mm |
| S. Drum shell thickness | 17 mm |
| W. Drum width | 1,730 mm |
| α. Steering angle | ±32° |
| Masses | |
| Max. operating mass | 10,700 kg |
|---|---|
| Operating mass (incl. ROPS) | 9,400 kg |
| Module mass (front/rear) | 4,700 kg/ 4,700 kg |
| Traction | |
| Speed range | 0 - 12 km/h |
| Vertical oscillation | ±7 |
| Theor. gradeability | 37 % |
| Engine | |
| Manufacturer/Model | Deutz TCD 3.6 IIIB/T4i |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 75 kW (100 hp ) @ 2,200 rpm |
| Fuel tank capacity | 130 l |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB 3.3 IIIA/T3 |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 74 kW (99 hp ) @ 2,200 rpm |
| Alternative Engine | |
| Manufacturer/Model | |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement. |
| Vibration | Axial piston pumps (2) with variable displacement. Axial piston motors (2) with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in both drums. |
| {phrase:compaction_oscillation} | |
| Oscillation frequency | Hz |
