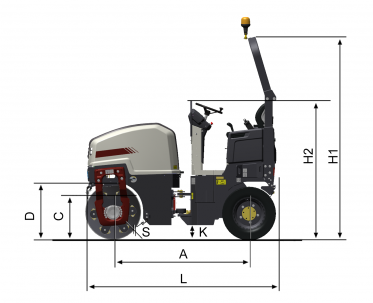

| A. Wheelbase | 1,700 mm |
|---|---|
| B. Width | 1,340 mm |
| C. Curb clerance | 554 mm |
| D. Drum diameter | 702 mm |
| H1. Height, with ROPS | 2,542 mm |
| H2. Height, w/o ROPS/cab | 1,744 mm |
| K. Ground clearance | 180 mm |
| L. Length | 2,400 mm |

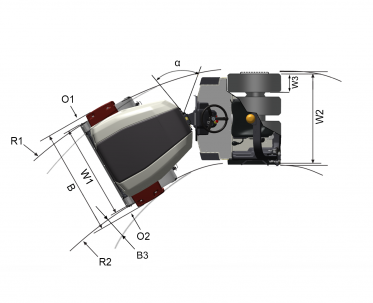

| O1. Overhang, right | 70 mm |
| O2. Overhang, left | 70 mm |
| R1. Turning radius, outside | 3,770 mm |
| R2. Turning radius, inside | 2,570 mm |
| S. Drum shell thickness | 13 mm |
| W1. Drum width | 1,200 mm |
| W2. Width, wheel module | 1,140 mm |
| W3. Width, tyre | 244 mm |
| α. Steering angle | ±30° |
| Masses | |
| Max. operating mass | 3,100 kg |
|---|---|
| Operating mass (incl. ROPS) | 2,315 kg |
| Module mass (front/rear) | 1,230 kg/ 1,085 kg |
| Traction | |
| Speed range | 0-10 km/h |
| Vertical oscillation | ±10° |
| Theor. gradeability | 65 % |
| Engine | |
| Manufacturer/Model | Kubota D1703-M (IIIA/T4i) |
| Type | Water cooled |
| Rated power, SAE J1995 | 26 kW (35.0 hp ) @ 2,800 rpm |
| Fuel tank capacity | 45 l |
| Alternative Engine | |
| Manufacturer/Model | Kubota D1703-DI (T4f) |
| Type | Water cooled |
| Rated power, SAE J1995 | 18.5 kW (25 hp ) @ 2,200 rpm |
| Alternative Engine | |
| Manufacturer/Model | Kubota D1803-CR (T4f) |
| Type | Water cooled |
| Rated power, SAE J1995 | 28 kW (37.5 hp ) @ 2,700 rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Radial piston motors with constant displacement. |
| Vibration | Gear pump/motors with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake on drum and wheels. |
