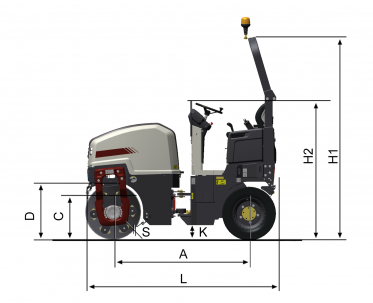

| A. Wheelbase | 1,700 mm |
|---|---|
| B. Width | 1,340 mm |
| C. Curb clerance | 554 mm |
| D. Drum diameter | 700 mm |
| H1. Height, with ROPS | 2,542 mm |
| H2. Height, w/o ROPS/cab | 1,744 mm |
| K. Ground clearance | 180 mm |
| L. Length | 2,400 mm |

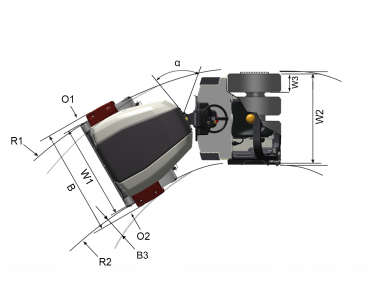

| O1. Overhang, right | 70 mm |
| O2. Overhang, left | 70 mm |
| R1. Turning radius, outside | 3,710 mm |
| R2. Turning radius, inside | 2,640 mm |
| S. Drum shell thickness | 12 mm |
| W1. Drum width | 1,070 mm |
| W2. Width, wheel module | 1,040 mm |
| W3. Width, tyre | 233 mm |
| W4. Wheel track | |
| α. Steering angle | ±30° |
| Masses | |
| Max. operating mass | 3,000 kg |
|---|---|
| Operating mass (incl. ROPS) | 2,215 kg |
| Module mass (front/rear) | 1,145 kg/ 1,070 kg |
| Traction | |
| Speed range | 0-10 km/h |
| Vertical oscillation | ±10° |
| Theor. gradeability | 71 % |
| Engine | |
| Manufacturer/Model | Kubota D1703-M (IIIA/T4i) |
| Type | Water cooled |
| Rated power, SAE J1995 | 26 kW (35.0 hp ) @ 2,800 rpm |
| Fuel tank capacity | 45 l |
| Alternative Engine | |
| Manufacturer/Model | Kubota D1703-DI (T4f) |
| Type | Water cooled |
| Rated power, SAE J1995 | 18.5 kW (25 hp ) @ 2,200 rpm |
| Alternative Engine | |
| Manufacturer/Model | Kubota D1803-CR (T4f) |
| Type | Water cooled |
| Rated power, SAE J1995 | 28 kW (37.5 hp ) @ 2,700 rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Radial piston motors with constant displacement. |
| Vibration | Gear pump/motors with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake on drum and wheels. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4700376805 | Asphalt temperature meter (CS142) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4812111061 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4812111057 | Rotating beacon for cab (CS142) |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4812157263 | Polyhrethane CS141/142 | ||
| Steel drum rollers | 4812157264 | Steel CS141/142 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4700950476 | |||
| Steel drum rollers | 4700950478 | CS1400 T4 s/n | ||
| Steel drum rollers | 4700950478 | CS1400 T4 s/n 10000503x0A013301- |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4700939076 | CS1400 T4 s/n | ||
| Steel drum rollers | 4700939076 | CS1400 T4 s/n 10000503x0A013301- |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4700950475 | |||
| Steel drum rollers | 4700950477 | CS1400 T4 s/n | ||
| Steel drum rollers | 4700950477 | CS1400 T4 s/n 10000503x0A013301- |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4700939563 | |||
| Steel drum rollers | 4700950400 | CS1400 T4 s/n | ||
| Steel drum rollers | 4700950400 | CS1400 T4 s/n 10000503x0A013301- |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4700939076 | CS1400 T4 s/n | ||
| Steel drum rollers | 4700939076 | CS1400 T4 s/n 10000503x0A013301- |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4812157262 | CS141/142 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Steel drum rollers | 4812111064 |
