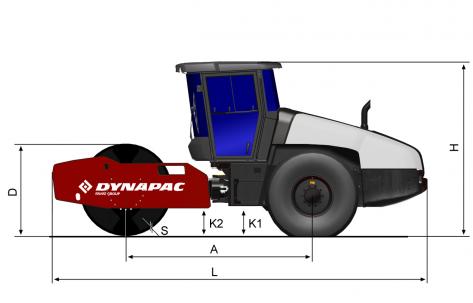

| A. Wheelbase | 2,990 mm |
|---|---|
| B1. Width, front | 2,300 mm |
| B2. Width, rear | 2,130 mm |
| D. Drum diameter | 1,500 mm |
| H. Height, with ROPS/cab | 2,870 mm |
| K1. Ground clearance | 450 mm |
| K2. Curb clearance | 450 mm |
| L. Length | 5,990 mm |
| O1. Overhang, right | 105 mm |
| O2. Overhang, left | 105 mm |
| R1. Turning radius, outside | 5,450 mm |
| R2. Turning radius, inside | 3,300 mm |
| S. Drum shell thickness | 25 mm |
| W. Drum width | 2,130 mm |
| α. Steering angle | ±38° |
The Dynapac compaction control and documentation system for soil and asphalt rollers
A tool to monitor and control their machine fleet efficiently and conveniently.
Big fuel savings with ECO!
‘Efficiency Eccentrics’ save energy and fuel in latest Dynapac mid-size soil compactors!
Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.
| Masses | |
| Operating mass (incl. ROPS) | 10,100 kg |
|---|---|
| Operating mass (incl. Cab) | 10,300 kg |
| Module mass (front/rear) | |
| Module mass (front, std/rear) | 5600/4700 kg |
| Max. operating mass | 11,900 kg |
| Traction | |
| Speed range | 0 - 12 km/h |
| Tyre size (8 ply) | 23,1 x 26 AW |
| Theor. gradeability | 51 % |
| Vertical oscillation | ±9° |
| Engine | |
| Manufacturer/Model | Cummins QSF3.8 (IV/4final) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 89 kW (120 hp) @ 2,200 rpm |
| Fuel tank capacity | 272 l |
| DEF tank capacity | 20 l |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB4.5 (IIIA/3) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 97 kW (130 hp ) @ 2,200 rpm |
| Hydraulic system | |
| Driving | Hydrostatic |
| Vibration | Hydrostatic |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in drum gear box and in rear axle. |
