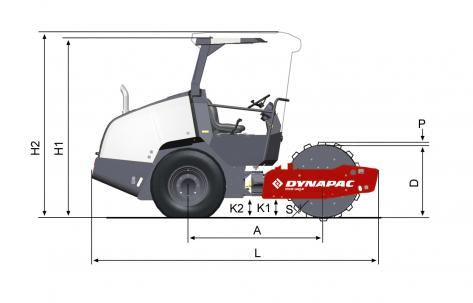

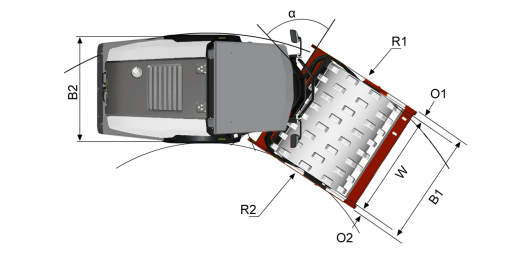

| A. Wheelbase | 1,860 mm |
|---|---|
| B1. Width, front | 1,495 mm |
| B2. Width, rear | 1,400 mm |
| D. Drum diameter | 1,000 mm |
| H1. Height, with ROPS | 2,540 mm |
| H2. Height, w/o ROPS/cab | 1,810 mm |
| K1. Ground clearance | 260 mm |
| K2. Curb clearance | 260 mm |
| L. Length | 3,950 mm |
| O1. Overhang, right | 62 mm |
| O2. Overhang, left | 62 mm |
| P. Pad height | 76 mm |
| R1. Turning radius, outside | 3,900 mm |
| R2. Turning radius, inside | 2,460 mm |
| S. Drum shell thickness | 22 mm |
| W. Drum width | 1,370 mm |
| α. Steering angle | ±33° |
A tool to monitor and control their machine fleet efficiently and conveniently.
| Masses | |
| Operating mass (incl. ROPS) | 4,750 kg |
|---|---|
| Module mass (front/rear) | 2,000 kg/ 2,750 kg |
| Max. operating mass | 5,200 kg |
| Traction | |
| Speed range (Dual/TC/AS) | 0 - 6 km/h |
| Tyre size (8 ply) | 12.5-20 |
| Theor. gradeability | 52 % |
| Vertical oscillation | ±9 |
| Number of pads | 72 |
| Pad area | 53 cm2 |
| Pad height | 76 mm |
| Engine | |
| Manufacturer/Model | Kubota V 3307 CR-TE4 (Stage IIIB/Tier4) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 55 kW (75 hp ) @ 2,200 rpm |
| Fuel tank capacity | 117 l |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motor with constant displacement. Axial piston motor with constant displacement. |
| Vibration | Gear pump/ motor with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in rear axle and front drum motor. |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Single drum vibratory rollers | 4812157275 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Single drum vibratory rollers | 4812159976 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Single drum vibratory rollers | 4812160169 | Deutz TD 3,6L04 3B Start up kit inc oil | ||
| Single drum vibratory rollers | 4812159467 | Cummins T3 Start up kit inc oil |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Single drum vibratory rollers | 4812160168 | Deutz TD 3,6L04 3B Inc oil | ||
| Single drum vibratory rollers | 4812159466 | Cummins T3 No oil inc | ||
| Single drum vibratory rollers | 4812160167 | Deutz TD 3,6L04 3B No oil inc |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Single drum vibratory rollers | 4812160166 | Deutz TD 3,6L04 3B Inc oil | ||
| Single drum vibratory rollers | 4812159464 | Cummins T3 No oil inc | ||
| Single drum vibratory rollers | 4812160165 | Deutz TD 3,6L04 3B No oil inc |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Single drum vibratory rollers | 4812159352 | Deutz TD 3,6L04 3B Inc oil |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Single drum vibratory rollers | 4812159975 |
