CC900S

CC900S Double drum vibratory rollers

Pictures

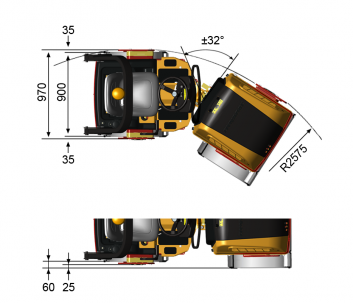

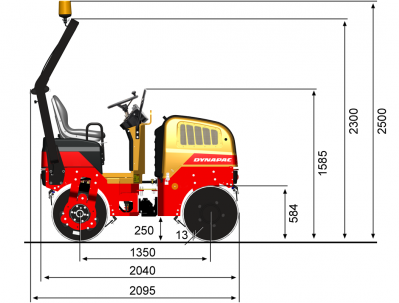

Dimensions

A. Wheelbase
B. Width
C. Curb clerance
D. Drum diameter	584 mm
H1. Height, with ROPS/cab	2,300 mm
K. Ground clearance
L1. Length
O1. Overhang, right
O2. Overhang, left
R1. Turning radius, outside
R2. Turning radius, inside
S. Drum shell thickness	13 mm
W. Drum width	900 mm
α. Steering angle

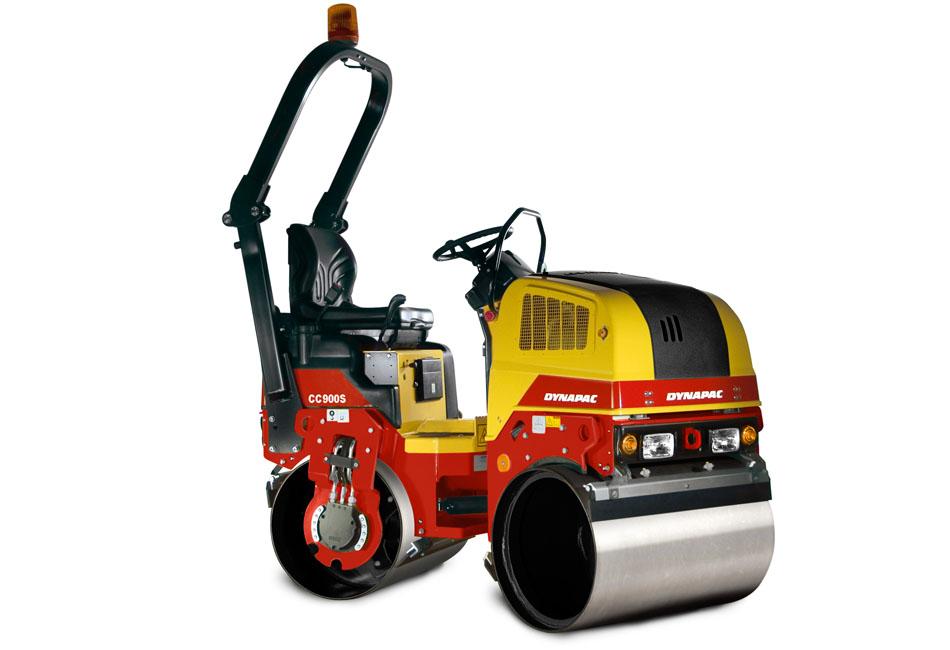

This "single arm" model has the right side of front drum free which makes it possible to compact close to walls. Furthermore, the front and rear drum have an off-set of 60mm. CC900S is used primarily for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas.

Operating Mass: 1,640 kg

SLL (front/rear): 8.8/ 9.4 kg/cm

Compaction width: 900 mm

Technical data

Masses
Max. operating mass	1,705 kg
Operating mass (incl. ROPS)	1,640 kg
Module mass (front/rear)	790 kg/ 850 kg
Traction
Speed range (Dual/TC/AS)	0-9 km/h
Vertical oscillation	±13°
Theor. gradeability	50 %
Engine
Manufacturer/Model	Perkins 403D-11
Type	Water cooled diesel
Rated power, SAE J1995	17 kW (23.5 hp ) @ 2,600 rpm
Fuel tank capacity	23 l
Alternative Engine
Manufacturer/Model
Alternative Engine
Manufacturer/Model
Hydraulic system
Driving	Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement.
Vibration	Gear pump/motors with constant displacement.
Steering	Gear pump with constant displacement.
Service brake	Hydrostatic in forward and reverse lever.
Parking/Emergency brake	Failsafe brake in both drums.
{phrase:compaction_oscillation}
Oscillation frequency	Hz

Service Kits

Drum rotation kit

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700945711

Eccentric shaft kit

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700945710

Scraper kit

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700940673

Service kit , 1000H

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700940210

Service kit , 500H

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700940209

Service kit , 50H

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700940208

Shock absorber kit

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700945552

Slow moving vehicle (SMV) sign kit

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700391951	SMV (SLOW MOVING VEHICLE) SIGN FOR STD TANK

Sprinkler kit

Subcategory	P/N	Additional info
Double drum vibratory rollers	4812161288	50 pieces.
Double drum vibratory rollers	4812161289	100 pieces.
Double drum vibratory rollers	4812161290	200 pieces.

Steering hitch kit

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700945928
