Paving

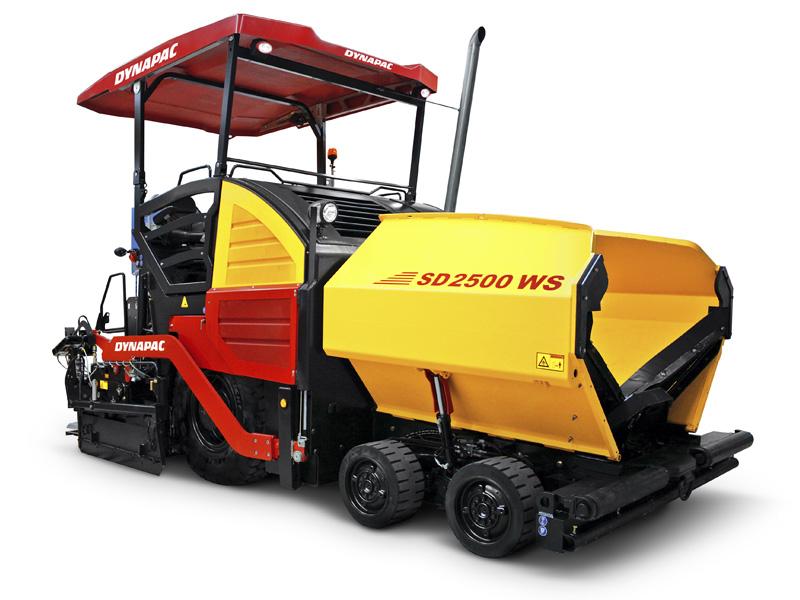

SD2500WS Wheeled pavers

0
My comparison
  • Pictures

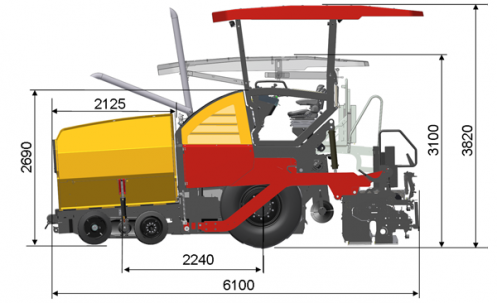

  • Dimensions
A. Axle track
H2. Height, with folded exhaust 3.10 m
H4. Dumping height
K. Ground clearance
L1. Length
L2. Length, hopper
L2. Length, wheelbase
Discontinued true
The SD-range features two powerful wheeled pavers with an optimized direct drive concept for precise and efficient paving. The 6-wheel driven SD2500WS provides the prefect combination of precision and power due to its extra wide tyres for excellent ground contact and outstanding traction as well as its high performance braking system for maximum safety.
Basic paving width: 2.55 m
Max. paving width: 9.00 m
Max. layer thickn.: 300 mm
Theor placement cap.: 700 t/h

Technical data

Masses
Weight 18 t
Traction
Paving speed up to 30 m/min
Maximum paving speed m/s
Transport speed 20 km/h
Engine
Manufacturer/Model Cummins QSB 6.7-C173
Rated power 129 kW () @ 2200 rpm
Electrical system 24V
Fuel tank capacity 315 l
Alternative Engine
Manufacturer/Model
Conveyor
Conveyor width 2 x 580 mm
