Paving

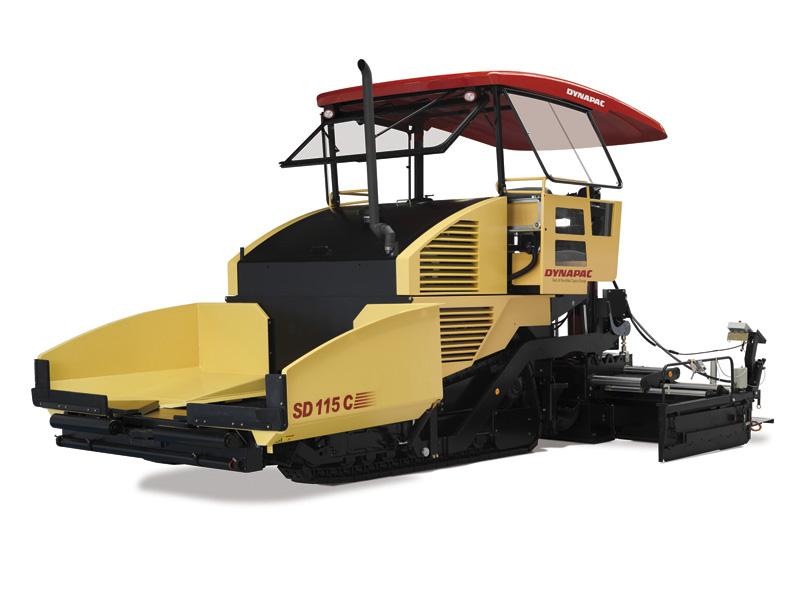

SD115C Tracked pavers

0
My comparison
  • Pictures
  • Dimensions
H3. Height
Discontinued true
The SD115C is Dynapac’s latest development, which combines the proven advantages with an improved package of innovations. In addition to the reduced engine and fan noise the SD115C convinces with an outstanding overview and optimized control concept.
Basic paving width: 2.55 m
Max. paving width: N/A
Max. layer thickn.: 300 mm
Theor placement cap.: 750 t/h

Technical data

Masses
Weight 19.20 t
Traction
Paving speed 0 - 25 m/min
Transport speed 4.5 km/h
Engine
Manufacturer / Model Deutz TCD 2013 L06
Emissions according to EU 3A / Tier 3
Rated power, SAE J1995 120 kW (163 hp ) @ 1800 rpm
Electrical system 24 V
Operation
Operator console Slidable left/right
Operator seat Adjustable, turnable, fluid-cushioned comfort seat
Conveyor
Conveyor width mm

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Conveyor chain kit
Category Subcategory P/N Additional info
Paving Tracked pavers D299000774
Paving Tracked pavers D299000773 COM3, double quantity of bars
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Tracked pavers D299000776 COM3, without hydraulic front hopper
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Tracked pavers D299000775
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Tracked pavers 4700691335 TCD 2013 L06V COM3 (w/o bio oil)
Paving Tracked pavers D299000891 TCD 2013 L06V COM3, 2-belt version
Paving Tracked pavers 4700691337 QSB 6.7 COM3, without bio oil
Paving Tracked pavers 4700691338 QSB 6.7 COM3, with bio oil
Service kit , 500H
Category Subcategory P/N Additional info
Paving Tracked pavers 4700691333 TCD 2013 L06V COM3 (w/o bio oil)
Paving Tracked pavers 4700691229 QSB 6.7 COM3, without bio oil
Paving Tracked pavers 4700691229 QSB 6.7 COM3, with bio oil
Paving Tracked pavers 4812044731 Deutz engine TCD 2013 L06-COM 3
Including oil
Wear part kit - Conveyor drive
Category Subcategory P/N Additional info
Paving Tracked pavers D299000777

Schematics

Eager to see the schematics of SD115C?

Please Log in or Register to MyDynapac to get access.

Add to compare Don't compare
Download brochures
Download datasheets
