Paving

F800W Wheeled pavers

0
My comparison

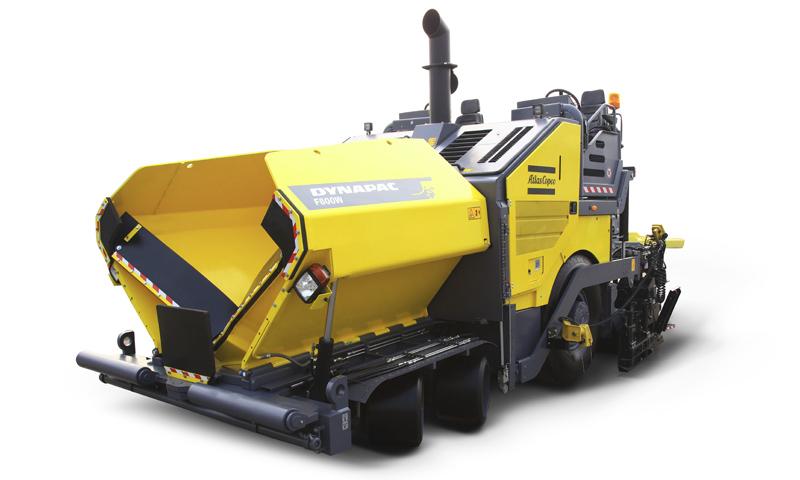

  • Pictures

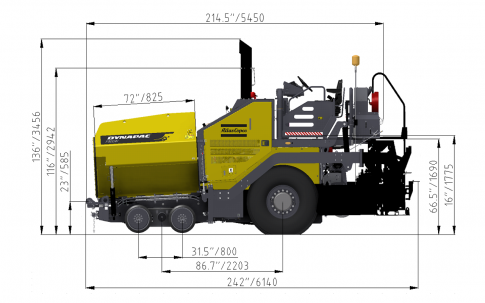

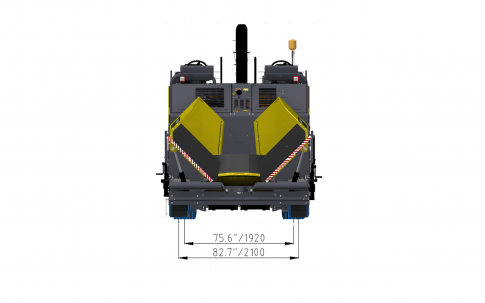

  • Dimensions
A. Axle track
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
Introducing Dynapac F800W 8 ft Wheel paver, a perfect addition to the existing highway class paver line. Dynapac F800W combines innovative features and decades of experience, making it as one of the best 8ft (2,44m) highway class pavers available in the US market.
Basic paving width: N/A
Max. paving width: 5.79 m
Max. layer thickn.: N/A
Theor placement cap.: 907 t/h

Technical data

Masses
Mass (incl. standard screed) 17.30 t
Weight 14.50 t
Traction
Paving speed 0-35 m/min
Maximum paving speed 78 m/min
Transport speed 17.5 km/h
Turning radius 1.5 m
Engine
Manufacturer/Model Cummins QSB 6.7-173
Rated power 129 kW (173 hp ) @ 2300 rpm
Rated power (Eco mode) 134 kW (180 hp ) @ 1,800 rpm
Emissions according to STAGE IV / TIER 4f
Electrical system 24V / 70A
Generator (tractor mounted) 34 kW
Fuel tank capacity 300 l
Alternative Engine
Manufacturer/Model
Operation
Operator console Dual Swing out
Dashboard Ergonomic with Multifunction display /console
Simplified smart switches, Cup holder
Conveyor
Conveyor type Dual bar feeder
Conveyor width mm
Conveyor width 2 x 506 mm
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274490
Paving Wheeled pavers 4812274491 Extended auger 15ft.
Paving Wheeled pavers 4812274492 Extended auger 1ft.
Paving Wheeled pavers 4812274493 Extended auger 2ft.
Paving Wheeled pavers 4812246513 Basic auger blade
Conveyor bearing kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274413
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812247992
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273378 Conveyor drive chain
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812247992
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812313274
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274412
Hopper skirt kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273377
Paving Wheeled pavers 4812313293 Low version
Paving Wheeled pavers 4812313532 Hydraulic powered standard size
Paving Wheeled pavers 4812313533 Hydraulic powered short size
Rear plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812274414
Service kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273240 Start-up kit 100 h
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273242
Service kit , 2000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273243
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812273241

Spare parts manuals

Eager to see the spare parts of F800W?

Please Log in or Register to MyDynapac to get access.

Compaction data

LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of F800W?

Please Log in or Register to MyDynapac to get access.
