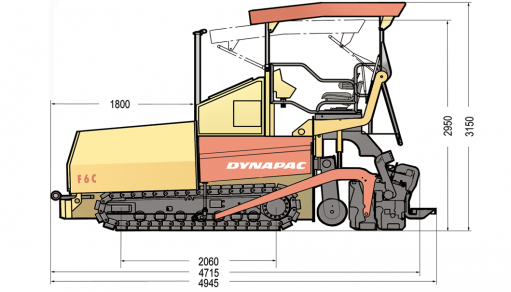

| H3. Height |
|---|
| Masses | |
| Weight | 9.60 t |
|---|---|
| Traction | |
| Paving speed | 0-32 m/min |
| Transport speed | 3.8 km/h |
| Engine | |
| Manufacturer | Deutz |
| Manufacturer/Model | Deutz TD2011 L04 |
| Emissions according to | EU3A / Tier 3 |
| Rated power, SAE J1995 | 52 kW (71 hp ) @ 2300 rpm |
| Electrical system | 12V |
| Operation | |
| Operator console | Slidable left/right |
| Operator seat | Adjustable, turnable, fluid-cushioned comfort seat |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor width | 350 mm |
| Conveyor control | Both sides independent |
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Paver Grease |
|
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Gear Oil 300 | 1,7 liter |
|
| Type of fluid | Volume | Additional info | |
|---|---|---|---|
| Dynapac Gear Oil 200 | 1,6 liter |
|
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | 4729900107 | F3L 10117 COM1 | |
| Paving | Tracked pavers | 4729900098 | From Nr. 0068656 | |
| Paving | Tracked pavers | 4729900095 | From et sheet 230-005B | |
| Paving | Tracked pavers | D299000547 | F3L 2011 - COM2 |
| Category | Subcategory | P/N | Additional info | |
|---|---|---|---|---|
| Paving | Tracked pavers | 4729900106 | F3L 10117 COM1 | |
| Paving | Tracked pavers | 4729900094 | From Nr. 0068656 | |
| Paving | Tracked pavers | 4729900094 | From et sheet 230-005B | |
| Paving | Tracked pavers | D299000546 | F3L 2011 - COM2 |
