Paving

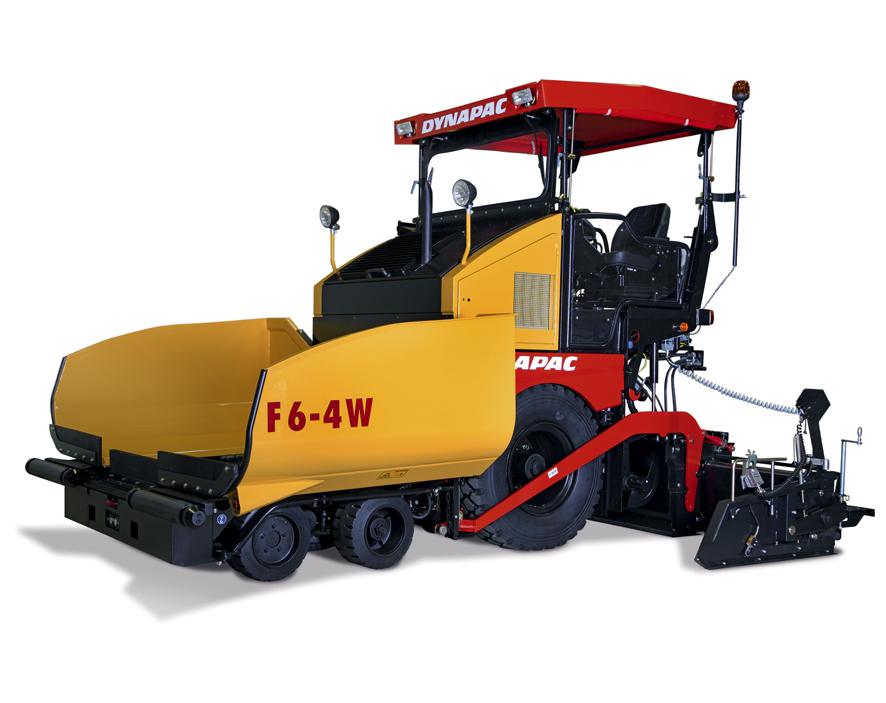

F6-4W Wheeled pavers

0
My comparison
  • Pictures

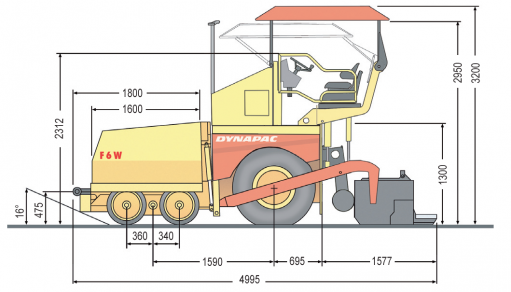

  • Dimensions
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
The wheeled pavers of this family are available as F6-4W with four wheel drive and integrated anti-spin system. These pavers are ideally suitable for laying bituminous mixes, rolled or lean-mix concrete, ballast and loose mineral mixes for set-paved substrates. The F6-4W with screed type VB340TV-(E) is intended for a wide spectrum of uses requiring exceptional mobility and placement quality – such as new roads, resurfacing, maintaining and repairing secondary and rural roads, narrow streets and alleys, car parks and areas of large open-plan building sites.
Basic paving width: 1.70 m
Max. paving width: N/A
Max. layer thickn.: 270 mm
Theor placement cap.: 250 t/h

Technical data

Masses
Weight 8.50 t
Traction
Paving speed 0 - 32 m/min
Maximum paving speed m/s
Transport speed 18 km/h
Engine
Manufacturer / Model Deutz TD 2011 L04
Rated power 52 kW (71 hp ) @ 2300 rpm
Emissions according to EU 3A/Tier 3
Electrical system 2 x 12V, 72Ah
Alternative Engine
Manufacturer / Model
Conveyor
Conveyor type Dual bar feeder
Conveyor width 350 mm
Conveyor control On/off switch, running direction of each side independently reversible

Fluids

Auger gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1 liter
Drive axle (differential)
Type of fluid Volume Additional info
Dynapac Gear Oil 300 13 liter
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,7 liter

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000714
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000858 38 bars
Paving Wheeled pavers 4812011992 26 bars
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812009338
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812045903
Conveyor guide roller kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812009337
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812045895
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812009415
Hopper rubber kit; with front hopper
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812009414
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812025554 Tier 3
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000754 Tier 3

Schematics

Eager to see the schematics of F6-4W?

Please Log in or Register to MyDynapac to get access.
