Paving

F5C Tracked pavers

0
My comparison
  • Pictures

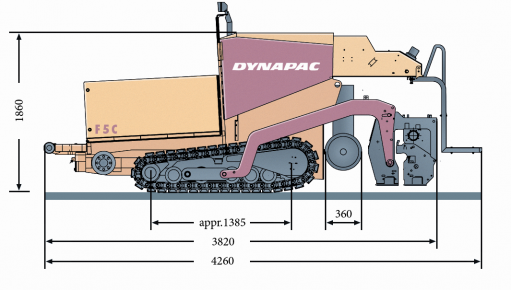

  • Dimensions
H3. Height
Discontinued true
This paver in combination with the gas heated screed VB125TV performances superior on smaller construction sites. Whenever an even, homogeneous surface and an excellent compaction is needed the F5C is the right choice.
Basic paving width: 1.20 m
Max. paving width: N/A
Max. layer thickn.: 200 mm
Theor placement cap.: 200 t/h

Technical data

Masses
Weight 5.40 t
Traction
Paving speed 0-25 m/min
Transport speed 3 km/h
Engine
Manufacturer/Model Deutz D2011L3i
Emissions according to EU3A / Tier 3
Rated power, SAE J1995 32.8 kW (45 hp ) @ 2500 rpm
Electrical system 2 x 12 V, 60 Ah
Operation
Operator console Vandalism protected
Conveyor
Conveyor type Single slat conveyor with center cover
Conveyor width 620 mm
Conveyor control Manual or automatically with limit switch

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Auger gear box
Type of fluid Volume Additional info
Auger Grease 3 KG P/n 4812041939 (0,75KG cartridge)
Auger Grease 3 KG P/n 4812041939 (0,75KG cartrigde)
Engine
Type of fluid Volume Additional info
Dynapac Engine Oil 100 8,5 liter P/n 1615595400 (20l can) TIER 3
Dynapac Engine Oil 200 8,5 liter P/n 1630047200 (20l can) TIER 4
Hydraulic system
Type of fluid Volume Additional info
Dynapac Hydraulic 120 90 liter P/N 9106230323 (20l can) Bio oil
Dynapac Hydraulic 300 90 liter P/n 9106230321 (20l can)
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 100 2,1 liter P/n 4812008271 (5l can)
Track gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 100 2 liter (1 liter each side) P/n 4812008271 (5l can)

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812045977 Auger extension shaft l.h.
Paving Tracked pavers 4812045978 Auger extension shaft r.h.
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812009770
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812009764
Conveyor guide roller kit
Category Subcategory P/N Additional info
Paving Tracked pavers D299000828
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812009758
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving Tracked pavers D299000827
Conveyor wear part kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812009766
Hopper rubber kit, hydr. front flap
Category Subcategory P/N Additional info
Paving Tracked pavers 4812013128
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Paving Tracked pavers 4812013164
Rubber pad kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812009691
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812009686 Tier 4
Paving Tracked pavers 4812009775 Tier 3
Service kit , 500H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812009772 Tier 3

Schematics

Eager to see the schematics of F5C?

Please Log in or Register to MyDynapac to get access.
