Paving

F141CR Tracked pavers

0
My comparison
  • Pictures

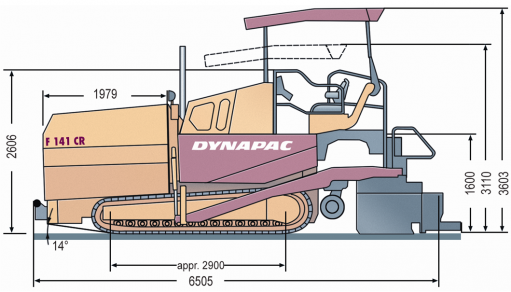

  • Dimensions
H3. Height
Discontinued true

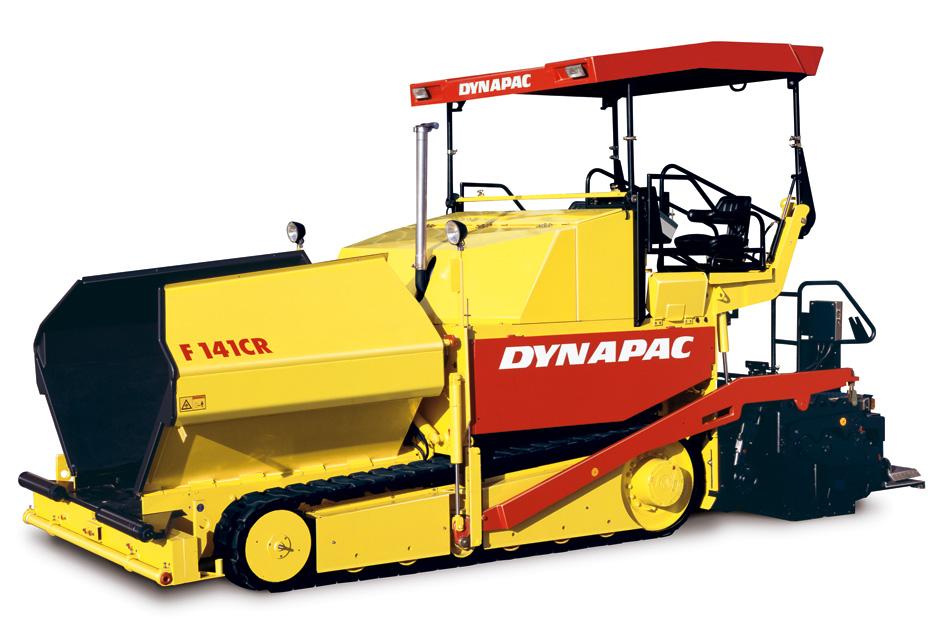

The F141CR rubber track paver ideally combines the advantages of both tracked and wheeled units. It offers excellent traction, a small turning radius and impressive flexibility and mobility, positive factors in a range of applications. The track rollers are independently suspended, which ensures compensation of surface unevenness and guarantees smooth movement.
Basic paving width: 2.55 m
Max. paving width: N/A
Max. layer thickn.: 300 mm
Theor placement cap.: 750 t/h

Technical data

Masses
Weight 18.10 t
Traction
Paving speed 0–20 m/min
Transport speed 16 km/h
Engine
Manufacturer/Model Cummins QSB6.7-C190
Emissions according to EU 3A / Tier 3
Rated power, SAE J1995 145 kW (197.0 hp ) @ 1800 rpm
Electrical system 24V
Operation
Operator console Slidable left/right
Operator seat Adjustable, turnable, fluid-cushioned comfort seat
Conveyor
Conveyor width mm

Fluids

Auger gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1 liter
Conveyor gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 3,4 liter
Grease
Type of fluid Volume Additional info
Dynapac Paver Grease
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 4,5 liter
Track gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 200 8 liter

Service Kits

Conveyor chain kit
Category Subcategory P/N Additional info
Paving Tracked pavers D299000774
Paving Tracked pavers D299000773 Double quantity of conveyor bars
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812025790 With hydraulic hopper
Paving Tracked pavers 4812025789 Without hydraulic hopper
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812025791
Rubber pad kit
Category Subcategory P/N Additional info
Paving Tracked pavers D299000698
Paving Tracked pavers 4812025459 New type of rubber pads, replacement kit
Paving Tracked pavers 4812025453 New rubber pad type, rebuild kit
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812025792
Service kit , 500H
Category Subcategory P/N Additional info
Paving Tracked pavers 4700691333
Paving Tracked pavers 4812044731 Deutz engine TCD 2013 L06-COM 3
Including oil
Wear part kit - Conveyor drive
Category Subcategory P/N Additional info
Paving Tracked pavers D299000697

Schematics

Eager to see the schematics of F141CR?

Please Log in or Register to MyDynapac to get access.
