Paving

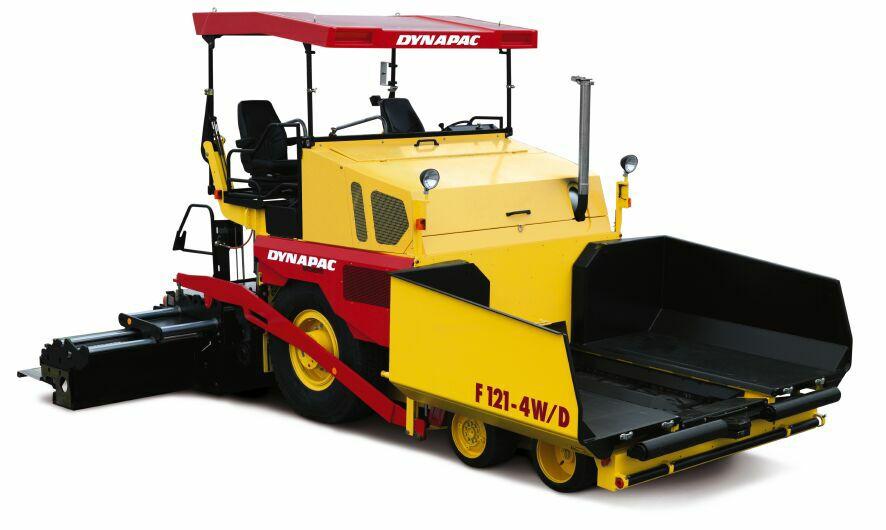

F121-4W/D Wheeled pavers

0
My comparison
  • Pictures

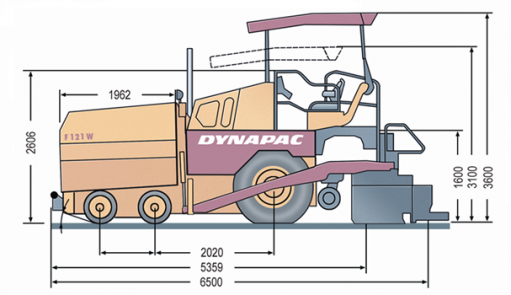

  • Dimensions
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
With the highly manoeuverable F121W/D of the wheeled paver range Dynapac has released a new direct drive system on the 2,55m basic width range. The machine is equipped with a two speed planetary gearbox for choice of working speed and travelling speed (19,5km/h / 11,8 mph). Available with a six wheel drive and standard anti slip system and diffential lock this machine can cope with working widths of max. 7,30 m. TEXT for 4W/D
Basic paving width: 2.55 m
Max. paving width: 6.60 m
Max. layer thickn.: 300 mm
Theor placement cap.: 600 t/h

Technical data

Masses
Weight 17 t
Traction
Paving speed 0 - 29 m/min
Maximum paving speed m/s
Transport speed 19.5 km/h
Engine
Manufacturer / Model Deutz TCD2013L06V
Rated power 120 kW (163.0 hp ) @ 1800 rpm
Emissions according to EU/3A
Electrical system 24V
Alternative Engine
Manufacturer / Model
Conveyor
Conveyor type Dual bar feeder
Conveyor width 600 mm
Conveyor control Proportional speed control, both sides driven independently

Fluids

Auger gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,2 liter
Conveyor gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 3 liter
Grease
Type of fluid Volume Additional info
Dynapac Paver Grease
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 4,5 liter
Wheel drive gearbox
Type of fluid Volume Additional info
Dynapac Gear Oil 200 2,8 liter

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679526 310 mm
Paving Wheeled pavers 4700679586 380 mm
Paving Wheeled pavers 4700679526 310mm - for complete machine
Paving Wheeled pavers 4700679586 380mm - complete machine
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679581 single quantity of bars
Paving Wheeled pavers 4700679582 double quantity of bars
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299010010
Paving Wheeled pavers D299000697 COMIII
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299000701 COMIII, mit hydraulische Mulde
Paving Wheeled pavers D299000702 COMIII, without hydraulic hopper
Conveyor guide roller kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299010011
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679580 For machines builded before June 2003
Paving Wheeled pavers D299000700 COMIII
Paving Wheeled pavers 4700690559 For machines builded after June 2003
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700688081 6BT5.9-C126 (w/o belts)
Paving Wheeled pavers 4700691335 Deutz TCD2013 L06, 140KW, machine s/n 634133 - 634138, 634141, 634145, 634146, 634152, 634156 - 634158, 634160, 634161, 634164, 634169, 634172, 634173, 634175 - 634178, 634186, 634195, 634201, 634205, 634210, 634217, 634219, 634221 - 634223, 634225
Paving Wheeled pavers D299000751 Deutz TCD2012, L62 V, 120KW, machine s/n 634167, 634168, 634171, 634179, 634181, 634184, 634185, 634188, 634189, 634192, 634193, 634196, 634198, 634200, 634202, 634207, COMIII
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700688080 6BT5.9-C126 (w/o belts)
Paving Wheeled pavers 4700691333 Deutz TCD2013 L06, 140KW, machine s/n 634133 - 634138, 634141, 634145, 634146, 634152, 634156 - 634158, 634160, 634161, 634164, 634169, 634172, 634173, 634175 - 634178, 634186, 634195, 634201, 634205, 634210, 634217, 634219, 634221 - 634223, 634225
Paving Wheeled pavers 4700691333 Deutz TCD2012, L62 V, 120KW, machine s/n 634167, 634168, 634171, 634179, 634181, 634184, 634185, 634188, 634189, 634192, 634193, 634196, 634198, 634200, 634202, 634207, COMIII

Schematics

Eager to see the schematics of F121-4W/D?

Please Log in or Register to MyDynapac to get access.
