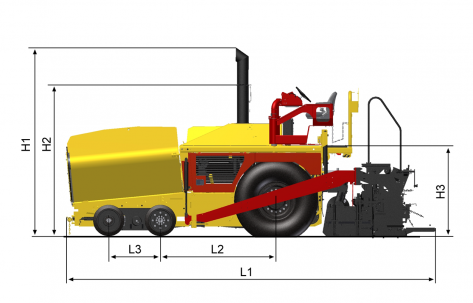

| A. Axle track | 2410 mm |
|---|---|
| B2. Width, standard | 3.05 m |
| H2. Height, with folded exhaust | 2693 mm |
| H3. Height | |
| H4. Dumping height | |
| K. Ground clearance | |
| L1. Length | 6650 mm |
| L2. Length, hopper | |
| L2. Length, wheelbase | 2030 mm |
| L3. Length, wheel module |
| Masses | |
| Weight | 14970 kg |
|---|---|
| Traction | |
| Maximum paving speed | 1.45 m/s |
| Maximum travel speed | 5.20 m/s |
| Drive system | Integrated hydrostatic drive system |
| Turning radius | 1525 mm |
| Engine | |
| Manufacturer/Model | Cummins QSB6.7 Tier III |
| Type | 6 cyl water cooled diesel engine with hydraulivally driven fan |
| Rated power | 169 kW (230 hp ) @ 1800 rpm |
| Emissions according to | Tier 4i |
| Electrical system | 24V, 70A |
| Alternative Engine | |
| Manufacturer/Model | |
| Operation | |
| Operator console | Dual swing out operation stations |
| Conveyor | |
| Conveyor type | Dual independent slat conveyor |
