Paving

Dynapac SW6500 Mobile feeders

0
My comparison
  • Pictures

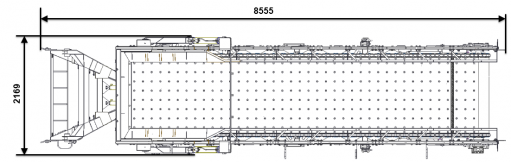

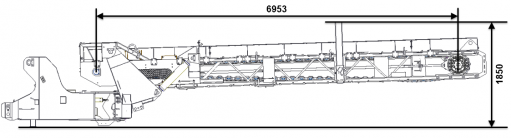

  • Dimensions
Transport length 8.60 m
Transport width 2.20 m
Transport height 1.85 m
Swing angle to left or right, max. 55°
Transport length CS Stage IV
Discontinued false

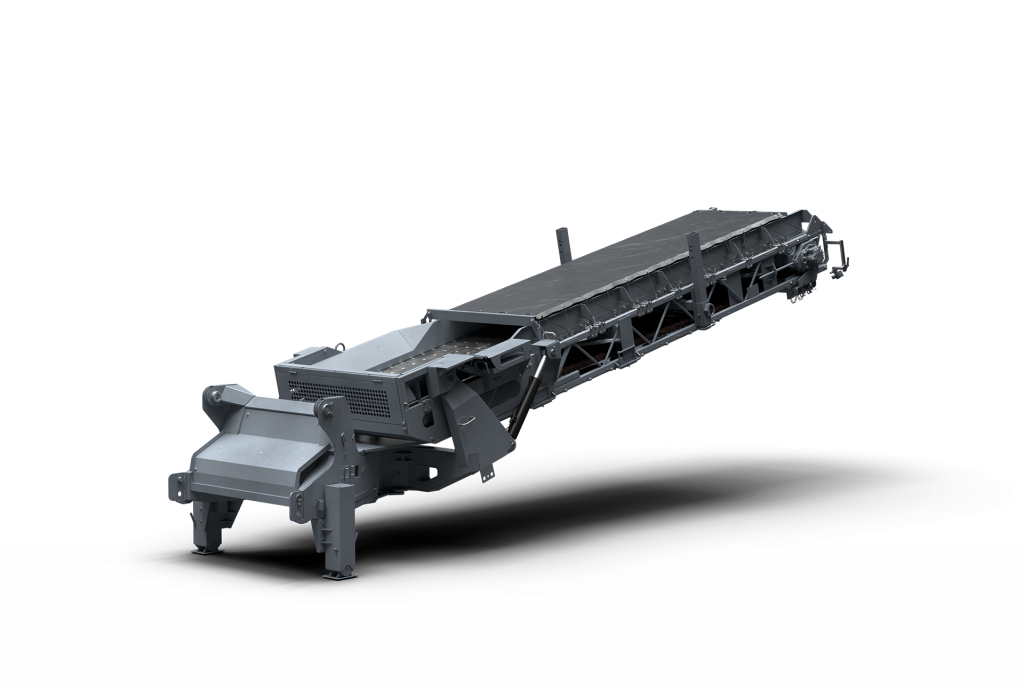

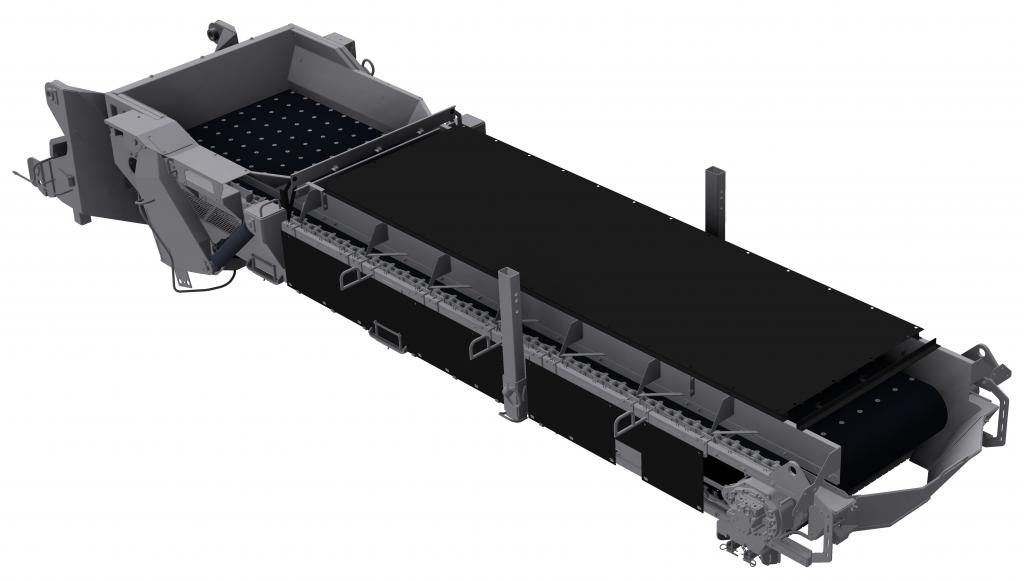

With the unique Dynapac SW6500 a standard MF2500CS can be transformed into a swinging feeder in less than 30 minutes. The hydraulic jacks make the mounting easy and convenient, since it takes less than 10 minutes. With a swing angle of 55° and a side reach of 3.4m, the Dynapac feeder is the perfect machine for a lot of applications.
Transport mass: 4.40 t
Conv feed capacity: 2000 t/h
Feeding height: 4.15 m / 1.10 m

Technical data

Masses
Transport mass 4.40 t
Conveyor
Conveyor type Rubber belt on two chains,
mounted with metal stiffeners
Conveyor speed Constantly variable
Conveyor width 1.20 m
Feeding height (max/min) 4.15 m / 1.10 m
Feed capacity 2000 t/h
Noise emissions
Vibration acting on hands and arms
(DIN EN ISO 20643), ahw		 <2.5 m/s2

Service Kits

Gas hose kit
Category Subcategory P/N Additional info
Paving Screeds D299000339
Screed plate kit
Category Subcategory P/N Additional info
Paving Screeds D299000256 Hardox 400 without Tamper Blades
Paving Screeds D255011500 Hardox 500 without Tamper Blades
Paving Screeds D299000257 Hardox 400 with Tamper Blades
Paving Screeds D299000549 Hardox 500 with Tamper Blades
