Paving

Dynapac SW5500 Mobile feeders

0
My comparison
  • Pictures
  • Dimensions
Transport length 7.60 m
Transport width 2.30 m
Transport height 1.60 m
Swing angle to left or right, max. 55°
Transport length CS Stage IV
Discontinued true

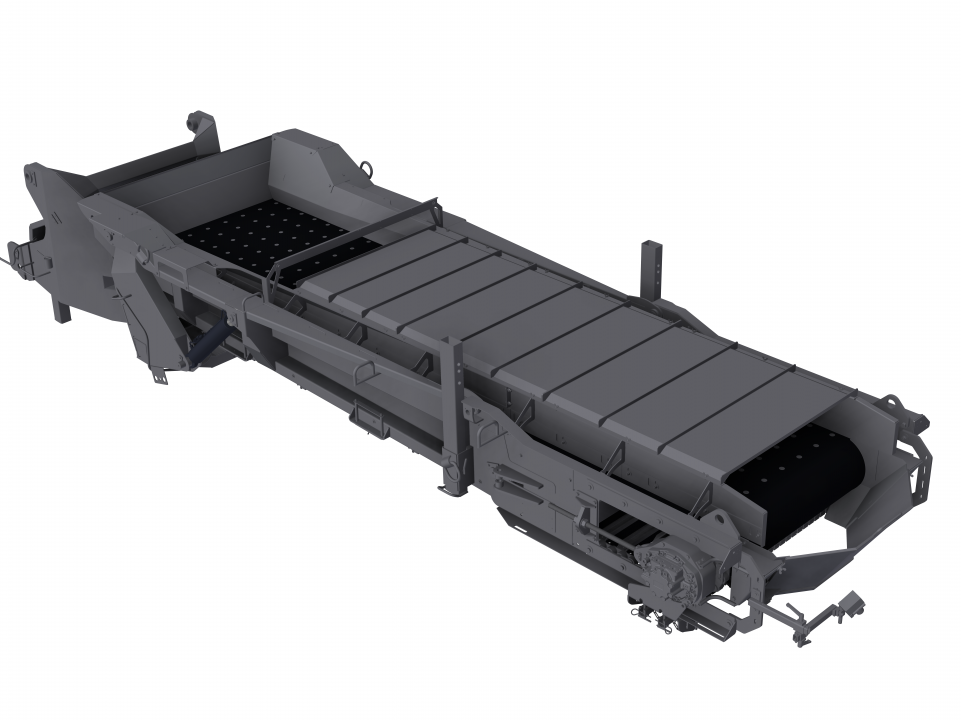

With the unique Dynapac SW5500 a standard MF2500CS can be transformed into a swinging feeder in less than 30 minutes. The hydraulic jacks make the mounting easy and convenient. With a swing angle of 55° and a side reach of 3 m, the Dynapac feeder is a perfect machine for a lot of applications.
Transport mass: 4.50 t
Conv feed capacity: 2000 t/h
Feeding height: 2.9 m / 1 m

Technical data

Masses
Transport mass 4.50 t
Conveyor
Conveyor type Rubber belt on two chains,
mounted with metal stiffeners
Conveyor speed Constantly variable
Conveyor width 1.20 m
Feeding height (max/min) 2.9 m / 1 m
Feed capacity 2000 t/h
