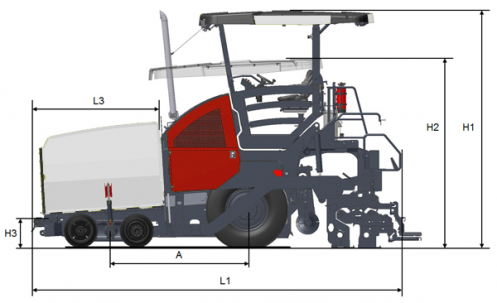

| A. Axle track | |
|---|---|
| A. Wheelbase | 2.24 m |

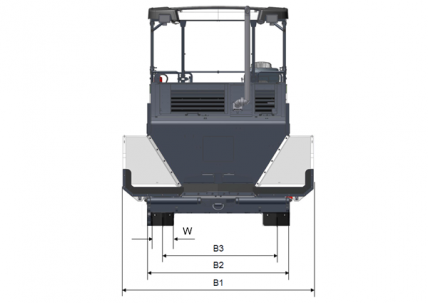

| B1. Width, max. | 3.25 m |
| B2. Width, standard | 2.55 m |
| B3. Width, wheel track | 2.05 m |
| C1. Track width | |
| H1. Height, max. | 3.90 m |
| H2. Height, transport | 3.10 m |
| H3. Height | 0.49 m |
| L1. Length | 6.10 m |
| L3. Length, hopper | 2.12 m |
| W. Width, wheels | 0.30 m |
A tool to monitor and control their machine fleet efficiently and conveniently.

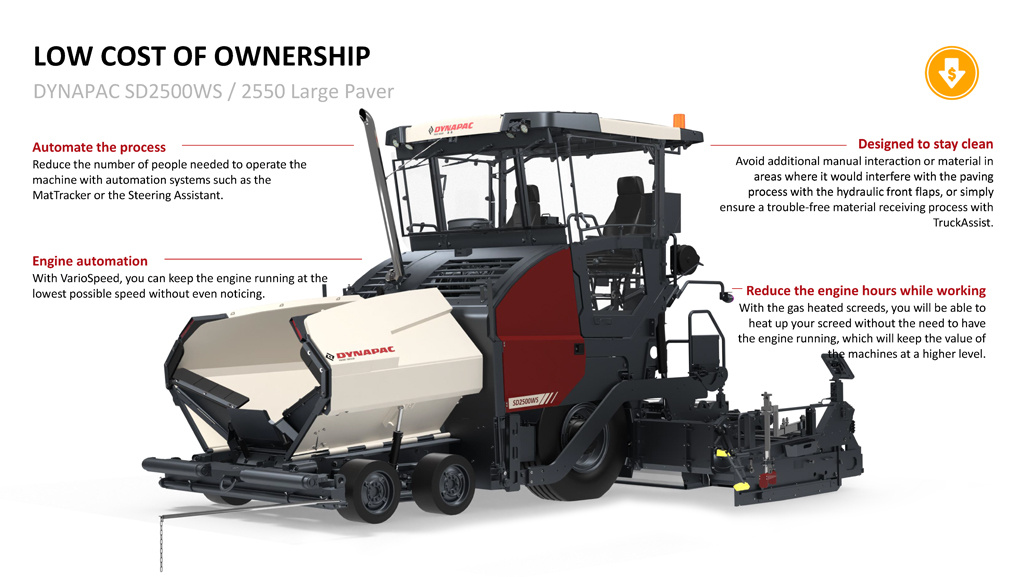

Big fuel savings with ECO!
header text here
Vario speed details here
| Masses | |
| Basic weight (incl. standard screed) | 18 t |
|---|---|
| Traction | |
| Maximum paving speed | 30 m/min |
| Transport speed | 20.0 km/h |
| Engine | |
| Manufacturer / Model | Cummins QSB6.7-C173 |
| Emissions according to | Stage V |
| Peak power | 145 kW |
| Rated power, SAE J1995 | 129 kW @ 2200 rpm |
| Electrical system | 24 V |
| Fuel tank capacity | 268 l |
| Average fuel conumption | 9.45 l/h |
| After treatment | DOC + DPF + SCR |
| Alternative Engine | |
| Manufacturer / Model | Cummins QSB6.7-C173 |
| Emissions according to | Stage IIIA (Tier 3) |
| Rated power | 129 kW @ 2200 rpm |
| Peak power | 145 kW |
| Electrical system | 24 V |
| Fuel tank capacity | 306 l |
| Average fuel conumption | 9.45 l/h |
| Conveyor | |
| Conveyor type | Dual bar feeder |
| Conveyor control | The independent conveyor with proportional contro |
| Conveyor width | 2x 580 mm |
