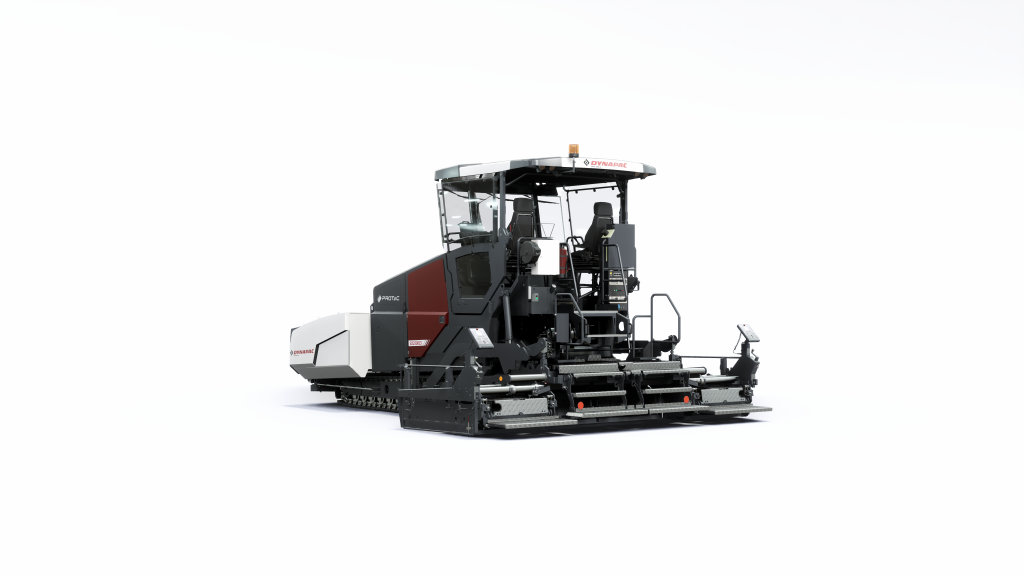

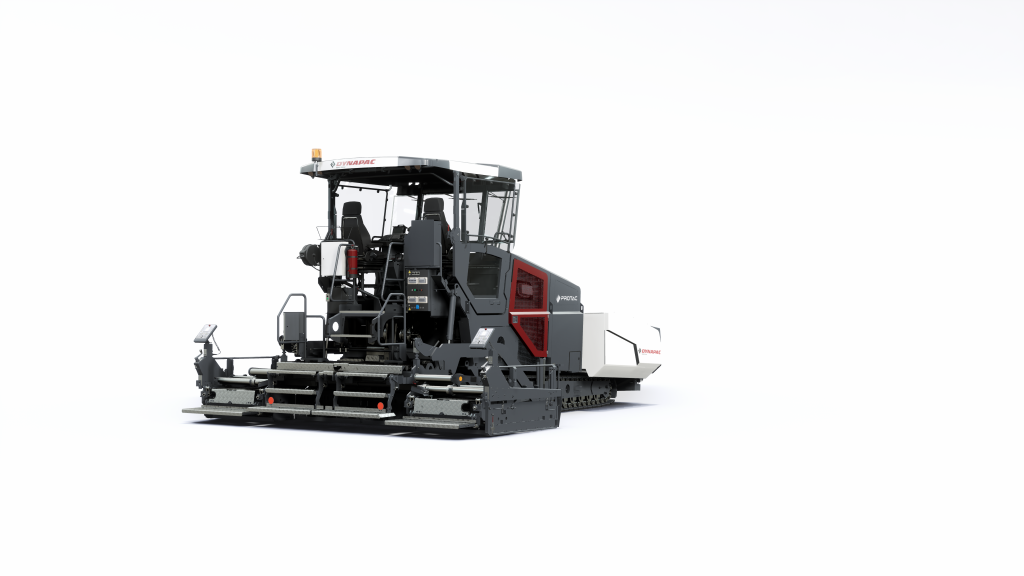

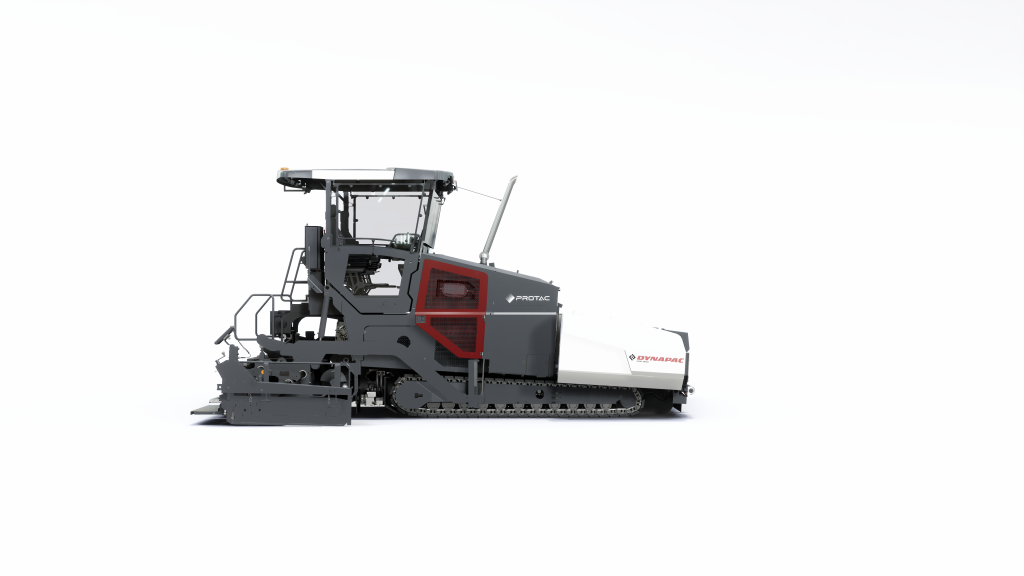

Dynapac SD2500CS PROTAC HIGHWAY PAVERS

0
My comparison
  • Experience
  • Pictures

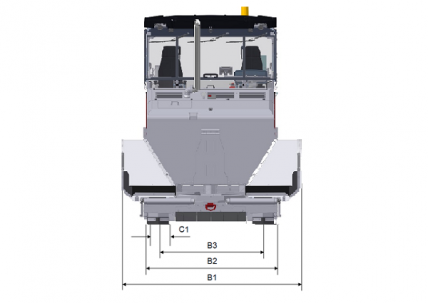

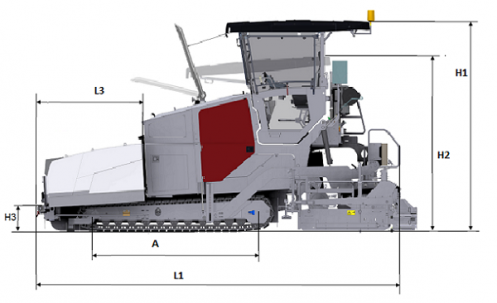

  • Dimensions
A. Axle track 3.36 m
B1. Width, max. 3.46 m
B2. Width, standard 2.55 m
B3. Width, center of tracks 1.99 m
C1. Track width 0.32 m
H1. Height, max. 3.90 m
H2. Height, transport 3.09 m
H3. Height 0.49 m
L1. Length 7.53 m
L3. Length, hopper 2.07 m
Discontinued false

The Dynapac Spraypaver PROTAC brings two processes together in one machine: paving and spraying. With the Dynapac PROTAC everything is seamlessly integrated into the system and easily activated. The sliding bar concept with symmetric hoses ensures a uniform emulsion mat.

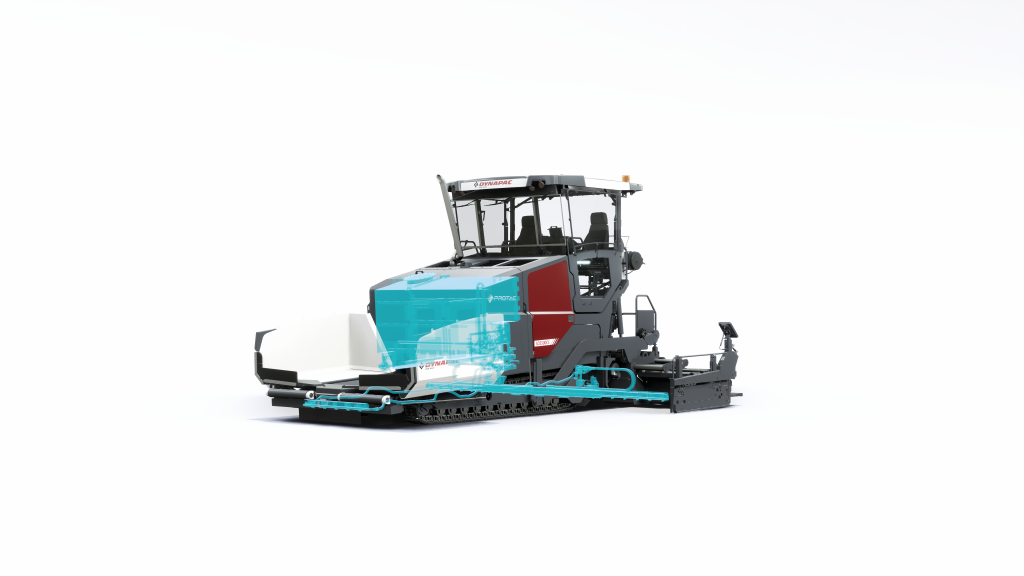

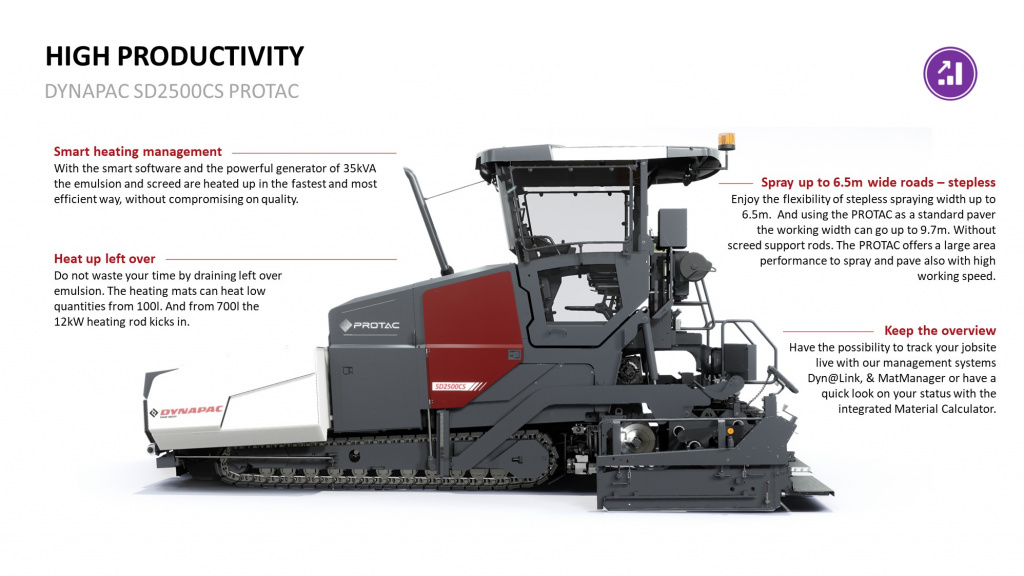

Due to the smart heating concept with mats and heating rod the emulsion is heated up in a gentle and efficient way for the highest quality. From 100l up to 2100l.

Basic paving width: 2.55 m
Max. paving width: 9.7 m
Max. layer thickn.: 310 mm
Theor placement cap.: N/A

Technical data

Masses
Basic weight (incl. standard screed) 23.30 t
Alternative Engine
Manufacturer
Model
Conveyor
Conveyor type Dual conveyor, reversible
Conveyor control Proportional with paddle sensors
Conveyor width 2 X 655 mm
Noise emissions
CO2 emissions 91.4 g/t
{phrase:battery}
Battery capacity 2x 12/95 V/Ah

Sales arguments

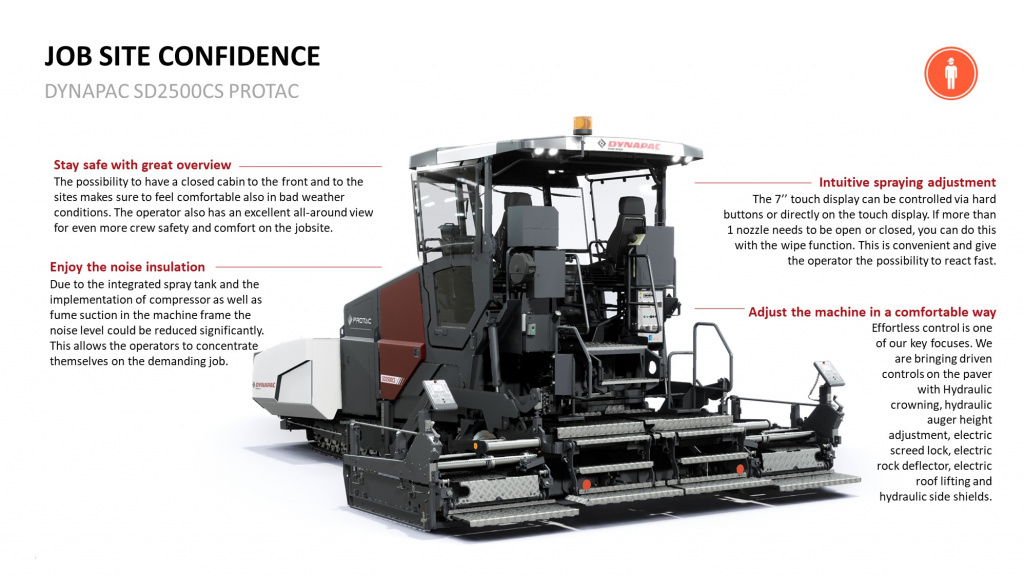

  • Stay safe with great overview
  • Extend your paving season with the Dynapac THE screed

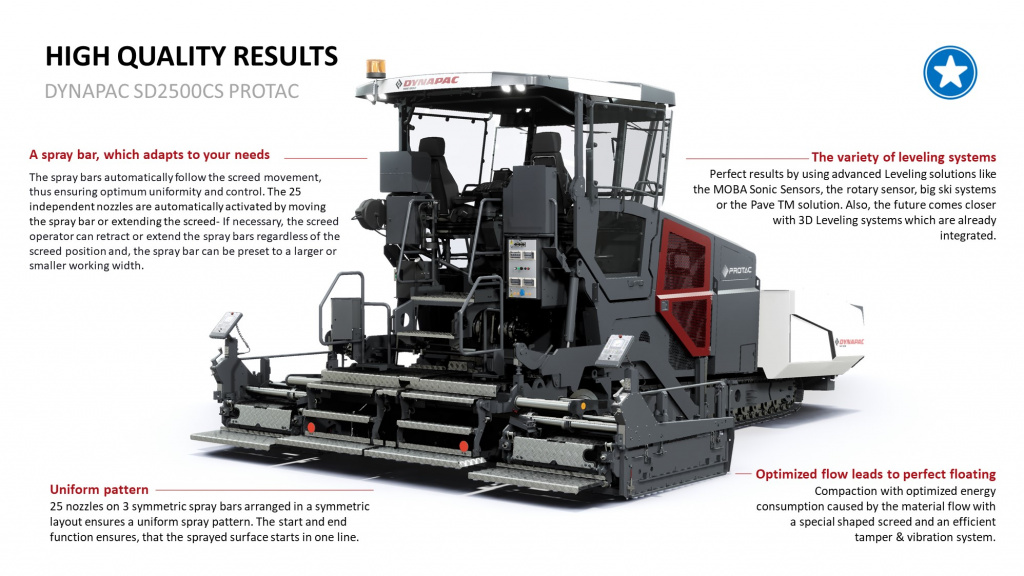

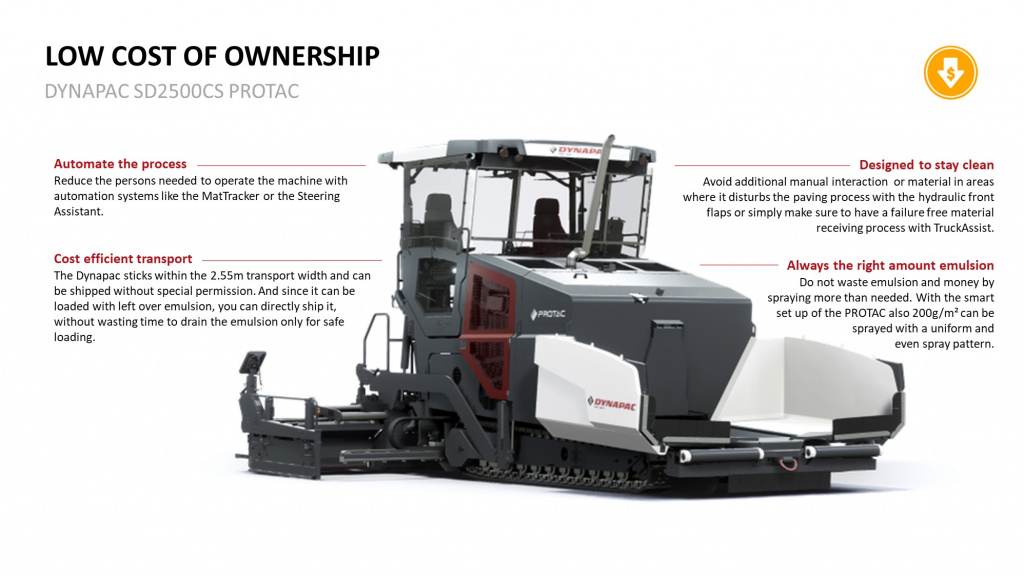

  • The PROTAC can spray 200g/m² with a uniform and even spray pattern
  • Spray up to 6.5m/7.0m wide roads – stepless
  • The slidable spray bars automatically follow the screed movement

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812274490
Paving HIGHWAY PAVERS 4812274491 Extended auger 15ft
Paving HIGHWAY PAVERS 4812274492 Extended auger 1ft.
Paving HIGHWAY PAVERS 4812274493 Extended auger 2ft.
Paving HIGHWAY PAVERS 4812246513 Basic auger blade
Conveyor bearing kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812274413
Conveyor chain kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812247992
Conveyor drive kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812273378 Conveyor drive chain
Conveyor guide kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812247992
Conveyor plate kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812313274
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812274412
Hopper skirt kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812273377
Paving HIGHWAY PAVERS 4812313293 Low version
Paving HIGHWAY PAVERS 4812313532 Hydraulic powered standard size
Paving HIGHWAY PAVERS 4812313533 Hydraulic powered short size
Rear plate kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812274414
Service kit
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812273240 Start-up kit 100 h
Service kit , 1000H
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812273242
Service kit , 2000H
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812273243
Service kit , 500H
Category Subcategory P/N Additional info
Paving HIGHWAY PAVERS 4812273241

Equipment (Standard and options)

Standard


Hydraulic damping and stepless adjustable (20cm) with automatic function
